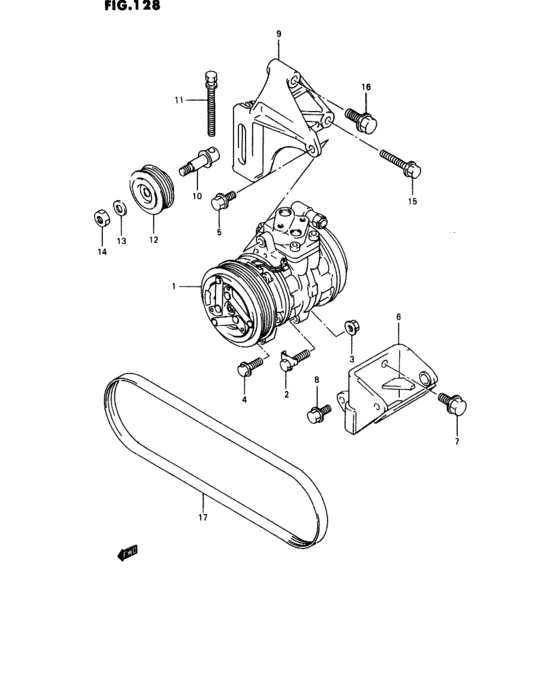

Compressor mounting (COMPRESSOR MOUNTING) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- SPECIAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
95000-83C50-000
Air conditioner set
RHD,EXC/Australia,N/POWER STEERING,W/HEATER |
95000-83C50-000 |
— | ||
|
|
95000-83C70-000
Air conditioner set
Australia,N/POWER STEERING |
95000-83C70-000 |
— | ||
|
|
95000-83C80-000
Air conditioner set
LHD,W/FUEL INJECTION |
95000-83C80-000 |
— | ||
|
|
95000-83C90-000
Air conditioner set
LHD,W/CARBURETOR,W/HEATER |
95000-83C90-000 |
— | ||
|
|
95000-83CE0-000
Air conditioner set
RHD,EXC/Australia,W/POWER STEERING,W/HEATER |
95000-83CE0-000 |
— | ||
|
|
95000-83CG0-000
Air conditioner set
Australia,W/POWER STEERING |
95000-83CG0-000 |
— | ||
|
1
|
1
95200-67A50-000
COMPRESSOR&MAGNET CLUTCH
|
95200-67A50-000 |
— | ||
|
2
|
2
95911-82000-000
BOLT,CPRSR HOLD
|
95911-82000-000 |
— | ||
|
3
|
3
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
3
|
3
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
4
|
4
01550-08253-000
Bolt, rear
|
01550-08253-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0825B-000 BOLT |
01550-0825B-000 |
from US $0.96 |
||
|
4
|
4
01550-0825A-000 BOLT |
01550-0825A-000 |
from US $1.06 |
||
|
5
|
5
01550-08203-000
Bolt
|
01550-08203-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
5
|
5
01550-0820A-000 BOLTBolt, funnel bracket |
01550-0820A-000 |
from US $0.96 |
||
|
6
|
6
95110-83C40-000
Bracket comp,cprsr
N/POWER STEERING |
95110-83C40-000 |
— | ||
|
7
|
7
01550-10203-000
Bolt
|
01550-10203-000 |
— | ||
| replacement | |||||
|
7
|
7
01550-1020A-000 BOLTBolt, bal sprocket |
01550-1020A-000 |
from US $0.96 |
||
|
8
|
8
01550-08203-000
Bolt
|
01550-08203-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
8
|
8
01550-0820A-000 BOLTBolt, funnel bracket |
01550-0820A-000 |
from US $0.96 |
||
|
9
|
9
49130-70AA0-000 BRACKET,TENSION PULLEYN/POWER STEERING |
49130-70AA0-000 |
US $132.85 |
||
|
10
|
10
49161-60B10-000 BOLT,BELT TENSION PULLEY |
49161-60B10-000 |
from US $7.84 |
||
|
11
|
11
49163-70AA0-000 BOLT,TENSION ADJUST |
49163-70AA0-000 |
US $4.60 |
||
|
12
|
12
49160-70AA0-000 PULLEY ASSY,BELT TENSION |
49160-70AA0-000 |
from US $75.71 |
||
|
13
|
13
08321-01103-000
Washer
|
08321-01103-000 |
— | ||
| replacements | |||||
|
13
|
13
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
13
|
13
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
14
|
14
08310-00103-000
Nut
|
08310-00103-000 |
— | ||
| replacements | |||||
|
14
|
14
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
14
|
14
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
15
|
15
01550-08503-000
Bolt
|
01550-08503-000 |
— | ||
| replacement | |||||
|
15
|
15
01550-0850B-000 Bolt |
01550-0850B-000 |
from US $1.22 |
||
|
16
|
16
01550-10303-000
Bolt
|
01550-10303-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-1030B-000 BOLTBolt, axle housing rear |
01550-1030B-000 |
from US $5.07 |
||
|
16
|
16
01550-1030A-000 BOLT |
01550-1030A-000 |
from US $1.12 |
||
|
17
|
17
95141-83C10-000 V-BELT,4PK 770N/POWER STEERING |
95141-83C10-000 |
US $52.99 |
||
|
17
|
17
95141-55C10-000 V-BELT,4PK 855W/POWER STEERING |
95141-55C10-000 |
US $60.35 |
||
