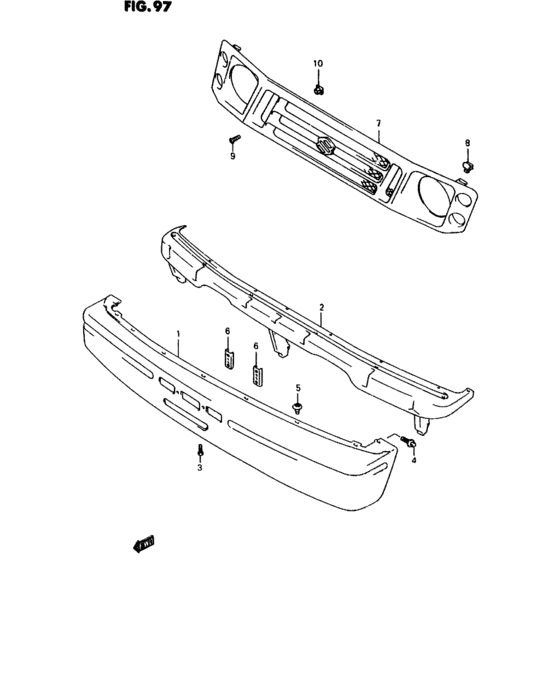

Front bumper (FRONT BUMPER) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- SPECIAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71711-50CA0-5PK
BUMPER,FR(BLACK)
|
71711-50CA0-5PK |
— | ||
|
1
|
1
71711-50CB0-799 BUMPER,FR(PRIMARY)TYPE 9:Australia:SPECIAL,PAINT TO MATCH |
71711-50CB0-799 |
US $351.44 |
||
|
2
|
2
71720-82CA0-000 MEMBER,FR BUMPER |
71720-82CA0-000 |
US $377.60 |
||
|
3
|
3
09139-06072-000 SCREW(6X16) |
09139-06072-000 |
from US $1.28 |
||
|
4
|
4
01550-08123-000
Bolt
|
01550-08123-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0812B-000 BoltPlug, drain |
01550-0812B-000 |
from US $0.96 |
||
|
4
|
4
01550-0812A-000 BOLT |
01550-0812A-000 |
from US $0.91 |
||
|
5
|
5
09409-07325-5PK CLIP(BLACK) |
09409-07325-5PK |
from US $1.37 |
||
|
6
|
6
71771-56B00-000 RETAINER,FR LICENSE PLATE |
71771-56B00-000 |
from US $4.41 |
||
|
7
|
7
72111-82CA0-38B GRILLE,FR |
72111-82CA0-38B |
US $764.80 |
||
|
8
|
8
72115-56B01-000 CLIP,FR GRILLE |
72115-56B01-000 |
from US $1.76 |
||
|
9
|
9
03541-04163-000
Screw
|
03541-04163-000 |
— | ||
| replacement | |||||
|
9
|
9
03541-0416A-000 SCREWScrew, trunk box lamp |
03541-0416A-000 |
from US $0.76 |
||
|
10
|
10
09148-04033-000 NUT |
09148-04033-000 |
from US $0.74 |
||
