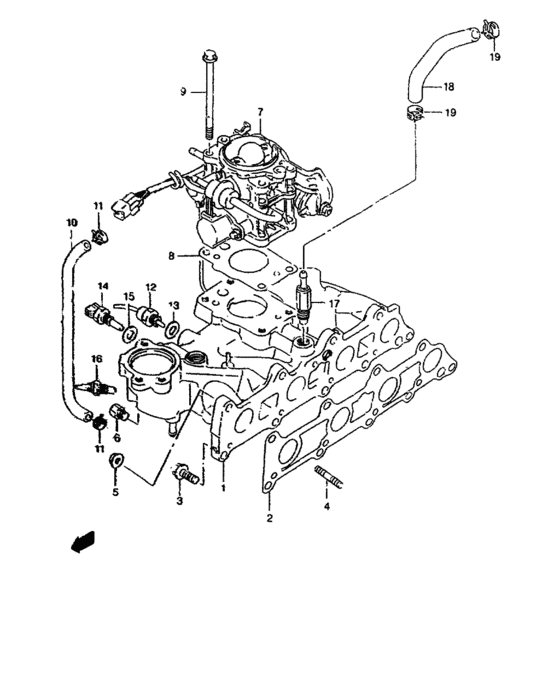

Intake manifold (W/FUEL INJECTION) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- SPECIAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13110-80C20-000
MANIFOLD,INTK
|
13110-80C20-000 |
— | ||
|
2
|
2
13119-83811-000
Gasket, intake manifold
|
13119-83811-000 |
— | ||
|
3
|
3
01550-08253-000
Bolt, rear
|
01550-08253-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0825B-000 BOLT |
01550-0825B-000 |
from US $0.96 |
||
|
3
|
3
01550-0825A-000 BOLT |
01550-0825A-000 |
from US $1.06 |
||
|
4
|
4
01421-08253-000
Stud bolt, no.2
|
01421-08253-000 |
— | ||
| replacement | |||||
|
4
|
4
01421-0825A-000 BOLT,STUD |
01421-0825A-000 |
from US $1.12 |
||
|
5
|
5
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
5
|
5
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
6
|
6
09246-04005-000 PLUGPlug, cylinder head cover |
09246-04005-000 |
from US $2.72 |
||
|
7
|
7
13400-80C50-000
BODY ASSY,THROTTLE
|
13400-80C50-000 |
— | ||
|
8
|
8
13421-81A00-000
Gasket, throttle body
|
13421-81A00-000 |
— | ||
|
9
|
9
09103-08230-000 BOLT(8X100)Bolt (8x100) |
09103-08230-000 |
US $1.76 |
||
|
10
|
10
13492-80C00-000
Hose, throttle body outlet
->13492-80C01,USED WITH 09401-12410(2PCS) |
13492-80C00-000 |
— | ||
| replacements | |||||
|
10
|
10
13492-80C01-000
HOSE,WATER THB OUTLET
->13492-80C01,USED WITH 09401-12410(2PCS) |
13492-80C01-000 |
— | ||
|
10
|
10
09401-12410-000 CLIPClip, filter outlet ->13492-80C01,USED WITH 09401-12410(2PCS) |
09401-12410-000 |
from US $1.19 |
||
|
10
|
10
13492-80C01-000
HOSE,WATER THB OUTLET
SEE NOTE |
13492-80C01-000 |
— | ||
|
11
|
11
09401-12404-000 CLIPClip |
09401-12404-000 |
from US $1.52 |
||
|
11
|
11
09401-12410-000 CLIPClip, filter outlet SEE NOTE |
09401-12410-000 |
from US $1.19 |
||
|
12
|
12
13650-56800-000
Sensor, inlet air temp
|
13650-56800-000 |
— | ||
|
13
|
13
09168-12016-000 GASKET(12.2X21X0.8) |
09168-12016-000 |
from US $1.12 |
||
|
14
|
14
13650-61800-000
Sensor, water temp
|
13650-61800-000 |
— | ||
|
15
|
15
09168-12016-000 GASKET(12.2X21X0.8) |
09168-12016-000 |
from US $1.12 |
||
|
16
|
16
34850-14F00-000 GAUGE ASSY,WATER TEMP |
34850-14F00-000 |
US $23.57 |
||
|
17
|
17
18118-80010-000 VALVE,PCV |
18118-80010-000 |
US $38.40 |
||
|
18
|
18
09354-70153-600 HOSE(7X15X600) |
09354-70153-600 |
US $16.80 |
||
|
19
|
19
09401-13414-000 CLIPClip, pcv hose |
09401-13414-000 |
from US $1.60 |
||
