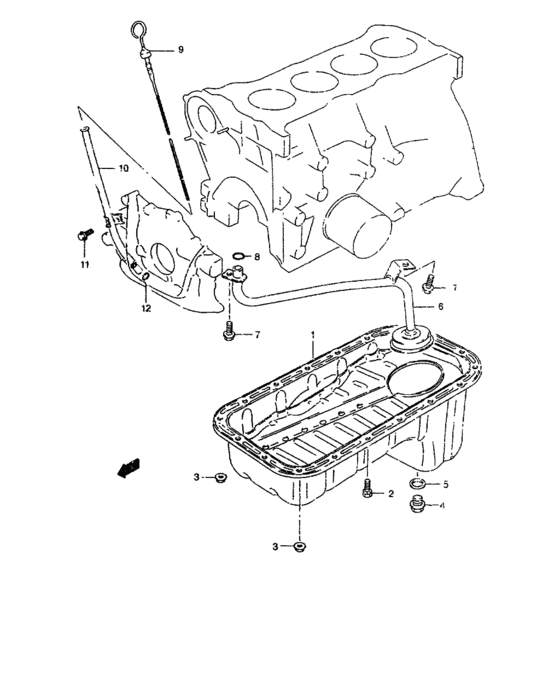

Oil pan (OIL PAN) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- SPECIAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11510-83004-000 PAN,OIL |
11510-83004-000 |
US $224 |
||
|
2
|
2
09117-06033-000 BOLT(6X12) |
09117-06033-000 |
US $1.06 |
||
|
3
|
3
03316-10063-000
Nut
|
03316-10063-000 |
— | ||
|
4
|
4
09247-14027-000 PLUG(14X11.5)Plug, oil drain |
09247-14027-000 |
from US $1.76 |
||
| replacement | |||||
|
4
|
4
09247-14044-000 DRAIN PLUG (M14x1.5) |
09247-14044-000 |
from US $1.33 |
||
|
5
|
5
09168-14015-000 GASKET(14X20X1.5)Gasket, oil hose union |
09168-14015-000 |
from US $1.17 |
||
|
6
|
6
16520-83003-000 STRAINER,OIL PUMP |
16520-83003-000 |
US $110.21 |
||
|
7
|
7
07120-06123-000
Bolt
|
07120-06123-000 |
— | ||
| replacement | |||||
|
7
|
7
07120-0612B-000 BOLTPlug |
07120-0612B-000 |
from US $0.96 |
||
|
8
|
8
09280-14011-000 O RING(D:2.5,ID:13.8)O ring (d:2.5 id:13.8) |
09280-14011-000 |
from US $2.13 |
||
|
9
|
9
16910-60A01-000 GAUGE,OIL LEVEL |
16910-60A01-000 |
from US $14.90 |
||
|
10
|
10
16930-82001-000 GUIDE,OIL LEVEL GAUGE |
16930-82001-000 |
US $14.72 |
||
|
11
|
11
02162-06103-000
Bolt
|
02162-06103-000 |
— | ||
| replacement | |||||
|
11
|
11
02162-0610A-000 SCREW |
02162-0610A-000 |
from US $0.64 |
||
|
12
|
12
09280-10016-000 O RING(D:1.9,ID:9.8)O ring |
09280-10016-000 |
from US $1.52 |
||
