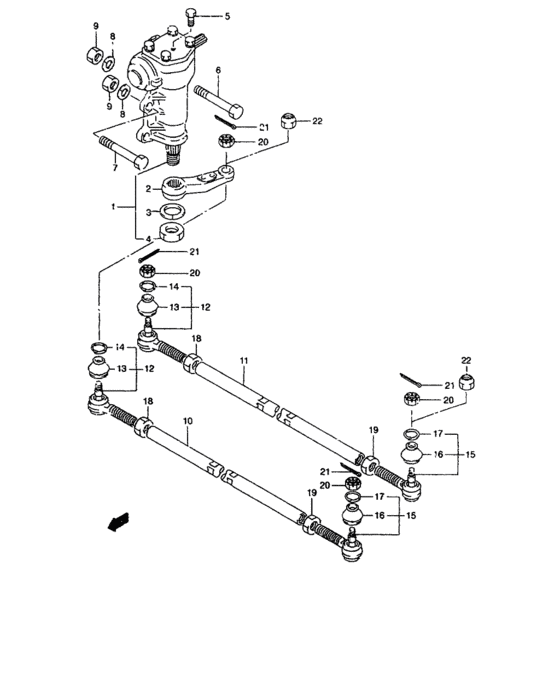

Steering link (RHD:N/PS) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- SPECIAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48600-80022-000 BOX ASSY,STEERING GEAR (MANUAL) |
48600-80022-000 |
US $601.60 |
||
|
2
|
2
48671-80011-000 ARM,PITMAN |
48671-80011-000 |
US $61.57 |
||
|
3
|
3
08321-21208-000
Washer,lock 20m
|
08321-21208-000 |
— | ||
| replacement | |||||
|
3
|
3
48644-80010-000 WASHER,PITMAN ARM LOCK |
48644-80010-000 |
US $1.92 |
||
|
4
|
4
48674-63240-000 NUT |
48674-63240-000 |
US $5.92 |
||
|
5
|
5
48633-67011-000 PLUG,BREATHER |
48633-67011-000 |
US $7.29 |
||
|
6
|
6
01500-12703-000
ボルト
|
01500-12703-000 |
— | ||
| replacement | |||||
|
6
|
6
01500-1270A-000 Bolt |
01500-1270A-000 |
US $1.60 |
||
|
7
|
7
01500-12903-000
New Genuine Part
|
01500-12903-000 |
— | ||
| replacement | |||||
|
7
|
7
01500-1290A-000 Bolt |
01500-1290A-000 |
US $1.82 |
||
|
8
|
8
08321-01123-000
Washer
|
08321-01123-000 |
— | ||
| replacement | |||||
|
8
|
8
08321-0112A-000 WASHER,LOCK |
08321-0112A-000 |
from US $0.76 |
||
|
9
|
9
08310-00123-000
Nut
|
08310-00123-000 |
— | ||
| replacement | |||||
|
9
|
9
08310-0012A-000 NUT |
08310-0012A-000 |
from US $0.76 |
||
|
10
|
10
48931-70AA0-000
Rod,steering drag
|
48931-70AA0-000 |
— | ||
|
11
|
11
48831-70AA0-000
TIE-ROD,STEERING
|
48831-70AA0-000 |
— | ||
|
12
|
12
48820-80002-000
エンド,ステアリングロッド
LEFT THREAD |
48820-80002-000 |
— | ||
| replacement | |||||
|
12
|
12
48820-81A01-000 END,DRAG ROD,RHLEFT THREAD |
48820-81A01-000 |
US $81.60 |
||
|
12
|
12
48820-81A00-000
END, ROD RH
LEFT THREAD,SJ80-121804~,JSAOSJ80000120828~,JSAOSJ80V00121351~ |
48820-81A00-000 |
— | ||
| replacements | |||||
|
12
|
12
04111-3020A-000 PINLEFT THREAD,SJ80-121804~,JSAOSJ80000120828~,JSAOSJ80V00121351~ |
04111-3020A-000 |
from US $0.61 |
||
|
12
|
12
08314-4012A-000 NUTLEFT THREAD,SJ80-121804~,JSAOSJ80000120828~,JSAOSJ80V00121351~ |
08314-4012A-000 |
from US $0.95 |
||
|
12
|
12
48820-81A01-000 END,DRAG ROD,RHLEFT THREAD,SJ80-121804~,JSAOSJ80000120828~,JSAOSJ80V00121351~ |
48820-81A01-000 |
US $81.60 |
||
|
13
|
13
48806-80000-000
BOOT SET
|
48806-80000-000 |
— | ||
| replacements | |||||
|
13
|
13
48806-80001-000
Boot Set
|
48806-80001-000 |
— | ||
|
13
|
13
48800-80810-000 Boot Set |
48800-80810-000 |
US $32 |
||
|
14
|
14
09401-27402-000 CLIP |
09401-27402-000 |
US $1.28 |
||
|
15
|
15
48810-60A00-000
エンド,ステアリングロッド
RIGHT THREAD |
48810-60A00-000 |
— | ||
| replacement | |||||
|
15
|
15
48810-81A01-000 END,DRAG ROD,LRIGHT THREAD |
48810-81A01-000 |
from US $44.10 |
||
|
15
|
15
48810-81A00-000
END, ROD LH
RIGHT THREAD,SJ80-121804~,JSAOSJ80000120828~,JSAOSJ80V00121351~ |
48810-81A00-000 |
— | ||
| replacements | |||||
|
15
|
15
04111-3020A-000 PINRIGHT THREAD,SJ80-121804~,JSAOSJ80000120828~,JSAOSJ80V00121351~ |
04111-3020A-000 |
from US $0.61 |
||
|
15
|
15
08314-4012A-000 NUTRIGHT THREAD,SJ80-121804~,JSAOSJ80000120828~,JSAOSJ80V00121351~ |
08314-4012A-000 |
from US $0.95 |
||
|
15
|
15
48810-81A01-000 END,DRAG ROD,LRIGHT THREAD,SJ80-121804~,JSAOSJ80000120828~,JSAOSJ80V00121351~ |
48810-81A01-000 |
from US $44.10 |
||
|
16
|
16
48806-80000-000
BOOT SET
|
48806-80000-000 |
— | ||
| replacements | |||||
|
16
|
16
48806-80001-000
Boot Set
|
48806-80001-000 |
— | ||
|
16
|
16
48800-80810-000 Boot Set |
48800-80810-000 |
US $32 |
||
|
17
|
17
09401-27402-000 CLIP |
09401-27402-000 |
US $1.28 |
||
|
18
|
18
09140-16023-000 NUTLEFT THREAD |
09140-16023-000 |
from US $1.73 |
||
|
19
|
19
09140-16022-000 NUTRIGHT THREAD |
09140-16022-000 |
US $2.56 |
||
|
20
|
20
08314-40123-000
Nut
|
08314-40123-000 |
— | ||
| replacement | |||||
|
20
|
20
08314-4012A-000 NUT |
08314-4012A-000 |
from US $0.95 |
||
|
21
|
21
04111-30308-000
30 x 30 cotter
|
04111-30308-000 |
— | ||
| replacement | |||||
|
21
|
21
04111-3030A-000 PIN |
04111-3030A-000 |
from US $0.76 |
||
|
22
|
22
09159-12052-000 NUTSJ80-121804~,JSAOSJ80000120828~,JSAOSJ80V00121351~ |
09159-12052-000 |
US $1.44 |
||
