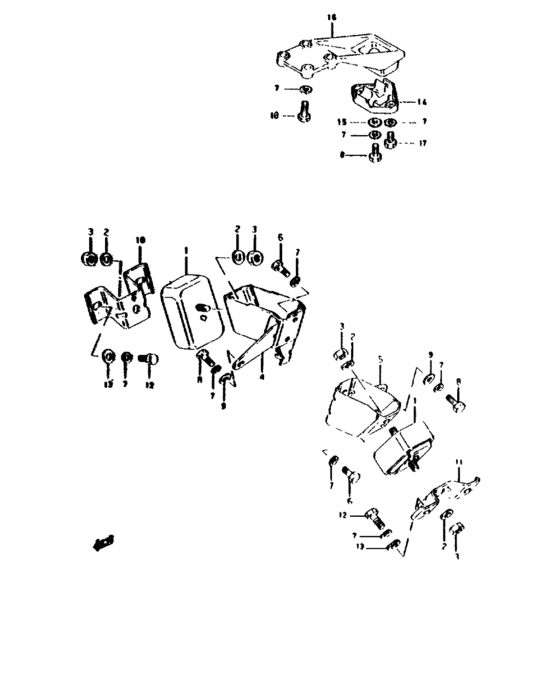

Groupe - catalog. samurai milsubgroupe - b - 0 - 6 supp moteur av (GROUPE - CATALOG. SAMURAI MILSUBGROUPE - B - 0 - 6 SUPP MOTEUR AV) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11610-A8001-000
Mounting, engine front
|
11610-A8001-000 |
— | ||
|
2
|
2
08321-B3110-500
Rondelle
|
08321-B3110-500 |
— | ||
|
3
|
3
08310-12103-000 Nut |
08310-12103-000 |
US $0.63 |
||
| replacements | |||||
|
3
|
3
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
3
|
3
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
4
|
4
11640-80010-000 BRACKET,ENG FR,R |
11640-80010-000 |
US $34.59 |
||
|
5
|
5
11650-80010-000 BRACKET,ENG FR,L |
11650-80010-000 |
US $60.80 |
||
|
6
|
6
01107-08253-000 Bolt m8x1.25x25 |
01107-08253-000 |
US $1.26 |
||
| replacement | |||||
|
6
|
6
01500-0825A-000 Bolt |
01500-0825A-000 |
from US $0.91 |
||
|
7
|
7
08321-B3108-600
Grower washer
|
08321-B3108-600 |
— | ||
|
8
|
8
01107-08203-000
Bolt
|
01107-08203-000 |
— | ||
| replacement | |||||
|
8
|
8
01500-0820A-000 Bolt |
01500-0820A-000 |
from US $0.80 |
||
|
9
|
9
08322-11083-000 WasherWasher |
08322-11083-000 |
US $1.07 |
||
| replacements | |||||
|
9
|
9
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
9
|
9
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
|
10
|
10
11661-80001-000
ブラケット,エンジンフロントボディサイド,ライト
|
11661-80001-000 |
— | ||
| replacement | |||||
|
10
|
10
11661-80002-000 BRACKET,FRAME SIDE MTG,R |
11661-80002-000 |
US $8.10 |
||
|
11
|
11
11671-80010-000
ブラケット,エンジンフロントボディサイド,レフト
|
11671-80010-000 |
— | ||
| replacement | |||||
|
11
|
11
11671-80011-000 BRACKET,FRAME SIDE MTG,L |
11671-80011-000 |
US $8.46 |
||
|
12
|
12
01707-10303-000
Vis
|
01707-10303-000 |
— | ||
|
13
|
13
09160-10001-000
Washer
|
09160-10001-000 |
— | ||
| replacement | |||||
|
13
|
13
09160-10093-000 WASHER(10.5X24X2.3) |
09160-10093-000 |
from US $1.35 |
||
|
14
|
14
11710-A8000-000
Support moteur arr
|
11710-A8000-000 |
— | ||
|
15
|
15
08322-11083-000 WasherWasher |
08322-11083-000 |
US $1.07 |
||
| replacements | |||||
|
15
|
15
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
15
|
15
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
|
16
|
16
11741-80010-000 BRACKET,ENG RR MTG |
11741-80010-000 |
US $47.89 |
||
|
17
|
17
01107-08163-000
Bolt m8x1.25x16
|
01107-08163-000 |
— | ||
| replacements | |||||
|
17
|
17
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
17
|
17
01500-08163-000
Bolt
|
01500-08163-000 |
— | ||
|
18
|
18
01107-08303-000
ボルト
|
01107-08303-000 |
— | ||
| replacement | |||||
|
18
|
18
01500-0830B-000 Bolt |
01500-0830B-000 |
from US $0.96 |
||
