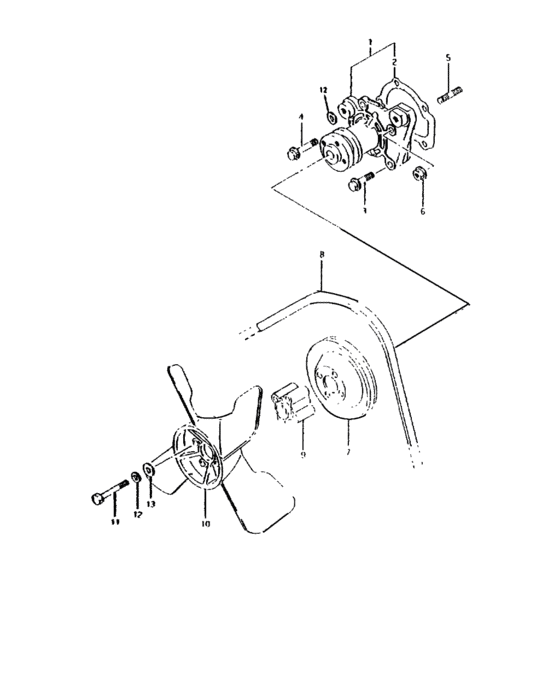

Groupe - catalog. samurai milsubgroupe - d - 0 - 2 pompe a eau (GROUPE - CATALOG. SAMURAI MILSUBGROUPE - D - 0 - 2 POMPE A EAU) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
17521-D7152-000
Courroie altern 45a
|
17521-D7152-000 |
— | ||
|
1
|
1
17400-78101-000
Pompe a eau
|
17400-78101-000 |
— | ||
|
2
|
2
17431-73001-000 GASKET,WATER PUMP |
17431-73001-000 |
US $1.82 |
||
|
3
|
3
01517-06303-000
ボルト
|
01517-06303-000 |
— | ||
| replacement | |||||
|
3
|
3
01550-0630A-000 BOLT |
01550-0630A-000 |
from US $0.96 |
||
|
4
|
4
01517-06403-000
ボルト
|
01517-06403-000 |
— | ||
| replacement | |||||
|
4
|
4
01550-0640B-000 Bolt |
01550-0640B-000 |
from US $0.96 |
||
|
5
|
5
09108-06040-000
BOLT,STUD
|
09108-06040-000 |
— | ||
|
6
|
6
08316-A1606-300
Fastening nut
|
08316-A1606-300 |
— | ||
|
7
|
7
17511-B7300-100
Poulie pompe eau
|
17511-B7300-100 |
— | ||
|
8
|
8
17521-C7152-000
Courroie altern 45a
|
17521-C7152-000 |
— | ||
|
9
|
9
17131-80000-000 HUB,COOLING FAN |
17131-80000-000 |
US $16.72 |
||
|
10
|
10
17111-73000-000 FAN,ENG COOLING |
17111-73000-000 |
US $39.74 |
||
|
11
|
11
01107-06503-000
ボルト
|
01107-06503-000 |
— | ||
| replacement | |||||
|
11
|
11
01500-0650A-000 Bolt |
01500-0650A-000 |
US $0.80 |
||
|
12
|
12
08321-A3106-300
Rondelle ressort
|
08321-A3106-300 |
— | ||
|
13
|
13
08322-21063-000
Washer
|
08322-21063-000 |
— | ||
| replacement | |||||
|
13
|
13
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
