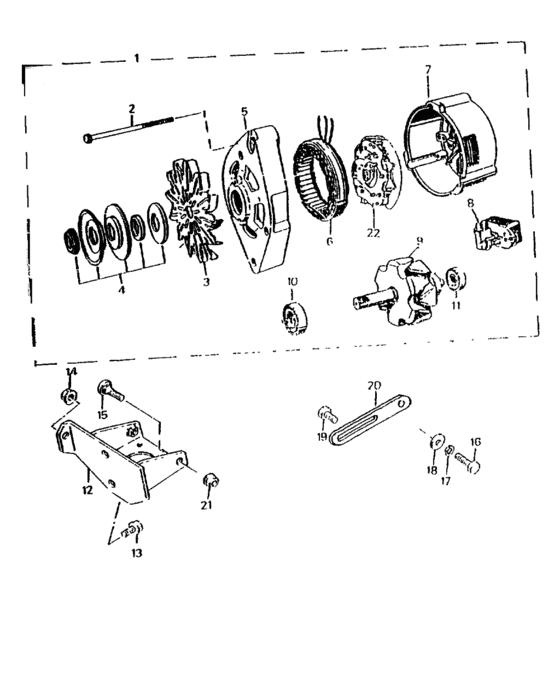

Groupe - catalog. samurai milsubgroupe - f - 0 - 3 alternat bosch (GROUPE - CATALOG. SAMURAI MILSUBGROUPE - F - 0 - 3 ALTERNAT BOSCH) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30003-00000-000
Alternateur bosch45a
|
30003-00000-000 |
— | ||
|
2
|
2
00000-A0050-400
Tige
|
00000-A0050-400 |
— | ||
|
3
|
3
00000-A0050-800
Fan
|
00000-A0050-800 |
— | ||
|
4
|
4
00000-A0050-900
Poulie
|
00000-A0050-900 |
— | ||
|
5
|
5
00000-A0049-400
Cover,pulley side
|
00000-A0049-400 |
— | ||
|
6
|
6
00000-A0050-300
Stator
|
00000-A0050-300 |
— | ||
|
7
|
7
00000-A0049-900
Cover,rings side
|
00000-A0049-900 |
— | ||
|
8
|
8
00000-A0050-200
Regulateur
|
00000-A0050-200 |
— | ||
|
9
|
9
00000-A0049-700
Regulateur
|
00000-A0049-700 |
— | ||
|
10
|
10
00000-A0006-200
Bearing
|
00000-A0006-200 |
— | ||
|
11
|
11
00000-A0049-800
Roulement
|
00000-A0049-800 |
— | ||
|
12
|
12
17910-A8200-000
Alternator bracket
|
17910-A8200-000 |
— | ||
|
13
|
13
01107-08203-000
Bolt
|
01107-08203-000 |
— | ||
| replacement | |||||
|
13
|
13
01500-0820A-000 Bolt |
01500-0820A-000 |
from US $0.80 |
||
|
14
|
14
08316-A1608-300
Nut
|
08316-A1608-300 |
— | ||
|
15
|
15
09107-A0800-500
Screw
|
09107-A0800-500 |
— | ||
|
16
|
16
01107-08253-000 Bolt m8x1.25x25 |
01107-08253-000 |
US $1.26 |
||
| replacement | |||||
|
16
|
16
01500-0825A-000 Bolt |
01500-0825A-000 |
from US $0.91 |
||
|
17
|
17
08321-A3108-600
Grower washer
|
08321-A3108-600 |
— | ||
|
18
|
18
09160-08003-000 WASHER(8X13.7X1)Washer (8x13.7x1) |
09160-08003-000 |
from US $1.60 |
||
|
19
|
19
01117-08203-000
Vis
|
01117-08203-000 |
— | ||
|
20
|
20
17921-A8201-000
Tensioner
|
17921-A8201-000 |
— | ||
|
21
|
21
08310-11083-000
ナット
|
08310-11083-000 |
— | ||
| replacements | |||||
|
21
|
21
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
21
|
21
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.80 |
||
|
22
|
22
00000-A0052-200
Plaque diodes
|
00000-A0052-200 |
— | ||
