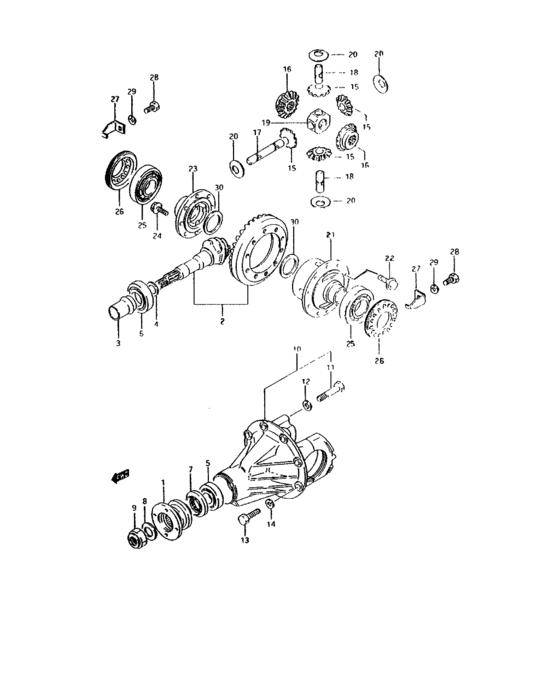

Groupe - catalog. samurai milsubgroupe - g - 0 - 4 differe av - ar (GROUPE - CATALOG. SAMURAI MILSUBGROUPE - G - 0 - 4 DIFFERE AV - AR) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
27341-83100-000
Gear, differential
|
27341-83100-000 |
— | ||
| replacements | |||||
|
|
27341-76A21-000
GEAR,DIFF
|
27341-76A21-000 |
— | ||
|
|
27341-76A22-000 Gear,diff |
27341-76A22-000 |
from US $55.28 |
||
|
|
09265-35003-000
Roulement arriere
|
09265-35003-000 |
— | ||
|
|
09181-35013-000
シム,T:1.03
|
09181-35013-000 |
— | ||
|
|
09181-35014-000
Shim 35x42x1.06
|
09181-35014-000 |
— | ||
|
|
09181-35015-000
シム,T:1.09
|
09181-35015-000 |
— | ||
| replacement | |||||
|
|
09181-35014-000
Shim 35x42x1.06
|
09181-35014-000 |
— | ||
|
|
09181-35016-000
シム,T:1.12
|
09181-35016-000 |
— | ||
| replacement | |||||
|
|
09181-35117-000 SHIM(35X42X1.12) |
09181-35117-000 |
US $21.70 |
||
|
|
09181-35017-000
シム,T:1.15
|
09181-35017-000 |
— | ||
|
|
09181-35018-000
シム,T:1.18
|
09181-35018-000 |
— | ||
| replacement | |||||
|
|
09181-35119-000 SHIM(35X42X1.18) |
09181-35119-000 |
from US $1.82 |
||
|
|
09181-35019-000
シム,T:1.21
|
09181-35019-000 |
— | ||
|
|
09181-35020-000
シム,T:1.24
|
09181-35020-000 |
— | ||
| replacement | |||||
|
|
09181-35122-000 SHIM(35X42X1.24) |
09181-35122-000 |
US $21.70 |
||
|
|
09181-35021-000
シム,T:1.27
|
09181-35021-000 |
— | ||
|
|
09181-35022-000
シム,T:1.30
|
09181-35022-000 |
— | ||
| replacement | |||||
|
|
09181-35125-000 SHIM(35X42X1.3) |
09181-35125-000 |
US $21.70 |
||
|
|
09181-35023-000 SHIM(35X42X0.3) |
09181-35023-000 |
US $2.24 |
||
| replacement | |||||
|
|
09181-35101-000 SHIM(35X42X0.5)Shim (t:0.5) |
09181-35101-000 |
from US $1.35 |
||
|
|
09160-35006-000 WASHER(35X46X0.9) |
09160-35006-000 |
from US $1.60 |
||
|
|
09160-35003-000 WASHER(35X46X1.1) |
09160-35003-000 |
from US $1.96 |
||
|
|
09160-35004-000 WASHER(35X46X1.2) |
09160-35004-000 |
from US $1.78 |
||
|
1
|
1
27110-83001-000
FLANGE,UNIVERSAL JOINT
|
27110-83001-000 |
— | ||
|
2
|
2
27311-B8000-200
Jeu pignon - couronne
|
27311-B8000-200 |
— | ||
|
3
|
3
27315-83001-000
スペーサ,ドライブベベルピニオン
|
27315-83001-000 |
— | ||
| replacement | |||||
|
3
|
3
27315-60A01-000 SPACER,DRIVE BEVEL PINION |
27315-60A01-000 |
US $28 |
||
|
4
|
4
09181-35012-000 SHIM(35X42X1) |
09181-35012-000 |
US $25 |
||
|
5
|
5
09265-A3000-300
Roulement avant
|
09265-A3000-300 |
— | ||
|
6
|
6
09265-35002-000
ベアリング,35X80X22.75
|
09265-35002-000 |
— | ||
| replacement | |||||
|
6
|
6
09265-35011-000 BEARING(35X80X22.75) |
09265-35011-000 |
US $40 |
||
|
7
|
7
09283-40013-000
オイルシール,40X72X10
|
09283-40013-000 |
— | ||
| replacements | |||||
|
7
|
7
09283-40027-000 SEAL,OIL(40x72x11x18) |
09283-40027-000 |
from US $7.25 |
||
|
7
|
7
09283-40022-000 SEAL,OIL(40X72X18.5) |
09283-40022-000 |
US $12.16 |
||
|
8
|
8
09160-20056-000 WASHER(20.1X36X4) |
09160-20056-000 |
US $2.88 |
||
|
9
|
9
09159-20003-000
ナット
|
09159-20003-000 |
— | ||
| replacement | |||||
|
9
|
9
27375-60A00-000 NUT,UNIVERSAL JOINT |
27375-60A00-000 |
from US $5.11 |
||
|
10
|
10
27450-83000-000
Carter dif
|
27450-83000-000 |
— | ||
| replacement | |||||
|
10
|
10
27450-60830-000 CARRIER ASSY,DIFF |
27450-60830-000 |
US $183.92 |
||
|
11
|
11
09111-12009-000
ボルト,12X61
|
09111-12009-000 |
— | ||
| replacement | |||||
|
11
|
11
09111-12010-000 BOLT(12X58) |
09111-12010-000 |
US $2.43 |
||
|
12
|
12
08321-A3112-600
Rondelle
|
08321-A3112-600 |
— | ||
|
13
|
13
01707-08253-000
Vis
|
01707-08253-000 |
— | ||
|
14
|
14
08321-B3108-600
Grower washer
|
08321-B3108-600 |
— | ||
|
15
|
15
27331-83000-000
ピニオン,ディファレンシャル
|
27331-83000-000 |
— | ||
| replacements | |||||
|
15
|
15
27331-76A20-000
PINION,DIFFERENTIAL
|
27331-76A20-000 |
— | ||
|
15
|
15
27331-83020-000 PINION,DIFFERENTIAL |
27331-83020-000 |
from US $31.39 |
||
|
15
|
15
27331-76A21-000 Pinion,differential |
27331-76A21-000 |
from US $43.75 |
||
|
16
|
16
27341-83000-000 GEAR,DIFF |
27341-83000-000 |
from US $41.04 |
||
|
17
|
17
27351-83000-000
シャフト,ピニオン,NO.1
|
27351-83000-000 |
— | ||
| replacement | |||||
|
17
|
17
27351-65D00-000 SHAFT,DIFF PINION NO.1 |
27351-65D00-000 |
from US $17.48 |
||
|
18
|
18
27355-83000-000
シャフト,ピニオン,NO.2
|
27355-83000-000 |
— | ||
| replacement | |||||
|
18
|
18
27355-65D00-000 SHAFT,DIFF PINION NO.2 |
27355-65D00-000 |
from US $13.77 |
||
|
19
|
19
27356-A6300-000
Joint, diff pinion shaft
|
27356-A6300-000 |
— | ||
|
20
|
20
09164-15006-000 WASHER |
09164-15006-000 |
from US $1.58 |
||
|
21
|
21
27411-83000-000 CASE,DIFF,L |
27411-83000-000 |
from US $117.56 |
||
|
22
|
22
09103-10028-000
Bolt, oil pump drive gear
|
09103-10028-000 |
— | ||
| replacement | |||||
|
22
|
22
09103-10290-000 BOLT(10X20)Bolt, oil pump drive gear |
09103-10290-000 |
from US $1.76 |
||
|
23
|
23
27421-83000-000 CASE,DIFF,R |
27421-83000-000 |
from US $57.76 |
||
|
24
|
24
09103-08030-000
ボルト,8X18.5
|
09103-08030-000 |
— | ||
| replacement | |||||
|
24
|
24
09103-08348-000 BOLT(8X18.5) |
09103-08348-000 |
US $1.76 |
||
|
25
|
25
09265-45002-000 BEARING(45.2X80X19.84) |
09265-45002-000 |
from US $45.60 |
||
|
26
|
26
27461-83000-000 ADJUSTER,DIFF SIDE BEARING |
27461-83000-000 |
from US $7.52 |
||
|
27
|
27
27462-63202-000 PLATE,BEARING LOCK |
27462-63202-000 |
US $2.74 |
||
|
28
|
28
01104-08126-000
Vis
|
01104-08126-000 |
— | ||
| replacement | |||||
|
28
|
28
01500-08127-000 Bolt |
01500-08127-000 |
from US $0.76 |
||
|
29
|
29
08321-B3108-600
Grower washer
|
08321-B3108-600 |
— | ||
|
30
|
30
09160-35002-000 WASHER(35X46X1) |
09160-35002-000 |
from US $1.40 |
||
