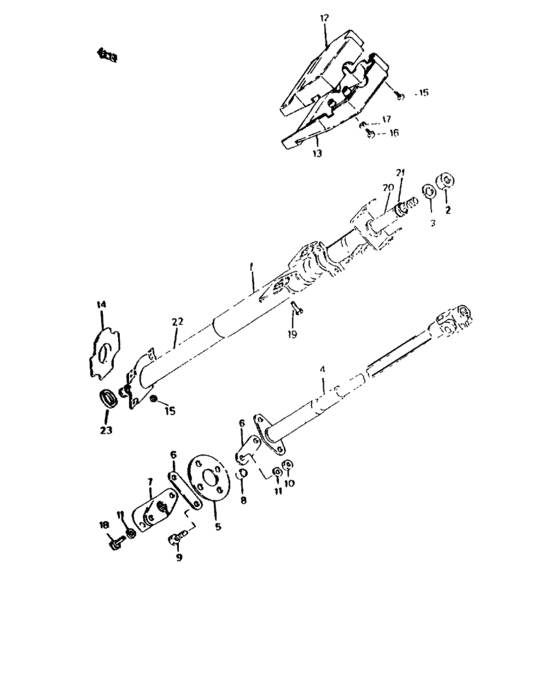

Groupe - catalog. samurai milsubgroupe - h - 0 - 3 colonne direct. (GROUPE - CATALOG. SAMURAI MILSUBGROUPE - H - 0 - 3 COLONNE DIRECT.) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48200-B8021-000
Colonne direction
|
48200-B8021-000 |
— | ||
|
2
|
2
00000-A0012-200
Ecrou
|
00000-A0012-200 |
— | ||
|
3
|
3
00000-A0012-300
Rondelle
|
00000-A0012-300 |
— | ||
|
4
|
4
48220-A8011-000
Arbre direction
|
48220-A8011-000 |
— | ||
|
5
|
5
48251-52000-000 JOINT,RUBBER |
48251-52000-000 |
from US $4 |
||
|
6
|
6
48262-58000-000
Plaque
|
48262-58000-000 |
— | ||
| replacement | |||||
|
6
|
6
48262-58001-000 PLATE,STRG RUBBER JOINT |
48262-58001-000 |
US $1.60 |
||
|
7
|
7
48270-80000-000
Bride
|
48270-80000-000 |
— | ||
| replacement | |||||
|
7
|
7
48270-80011-000 FLANGE,STRG RUBBER JOINT |
48270-80011-000 |
US $20 |
||
|
8
|
8
09180-08007-000 SPACER(8.1X11X9) |
09180-08007-000 |
from US $1.12 |
||
|
9
|
9
01107-08256-000
Bolt
|
01107-08256-000 |
— | ||
| replacement | |||||
|
9
|
9
01500-0825A-000 Bolt |
01500-0825A-000 |
from US $0.91 |
||
|
10
|
10
08310-11086-000
Nut
|
08310-11086-000 |
— | ||
| replacement | |||||
|
10
|
10
08310-00087-000 NUT |
08310-00087-000 |
from US $0.76 |
||
|
11
|
11
08321-B3108-600
Grower washer
|
08321-B3108-600 |
— | ||
|
12
|
12
48411-A8035-000
Carter sup. grise
|
48411-A8035-000 |
— | ||
|
13
|
13
48421-A8030-000
Couvercle inf. grise
|
48421-A8030-000 |
— | ||
|
14
|
14
48491-80000-000 SEAL,STEERING COLUMN |
48491-80000-000 |
US $2.13 |
||
|
15
|
15
08316-A1608-600
Ecrou
|
08316-A1608-600 |
— | ||
|
16
|
16
02112-05105-000
Screw 5x10
|
02112-05105-000 |
— | ||
| replacement | |||||
|
16
|
16
02112-0510A-000 SCREW |
02112-0510A-000 |
from US $0.76 |
||
|
17
|
17
08322-21056-000
Washer
|
08322-21056-000 |
— | ||
| replacements | |||||
|
17
|
17
08322-0105B-000 WASHER |
08322-0105B-000 |
from US $0.76 |
||
|
17
|
17
08322-0105A-000 WASHERWasher, front |
08322-0105A-000 |
from US $0.80 |
||
|
18
|
18
09111-08066-000 BOLT(8X30) |
09111-08066-000 |
US $1.92 |
||
|
19
|
19
09103-A0815-200
Screw
|
09103-A0815-200 |
— | ||
|
20
|
20
00000-A0026-000
Ens axe
|
00000-A0026-000 |
— | ||
|
21
|
21
00000-A0026-100
Bague
|
00000-A0026-100 |
— | ||
|
22
|
22
00000-A0025-700
Ens superieur
|
00000-A0025-700 |
— | ||
|
23
|
23
00000-A0026-200
Anneau securite
|
00000-A0026-200 |
— | ||
