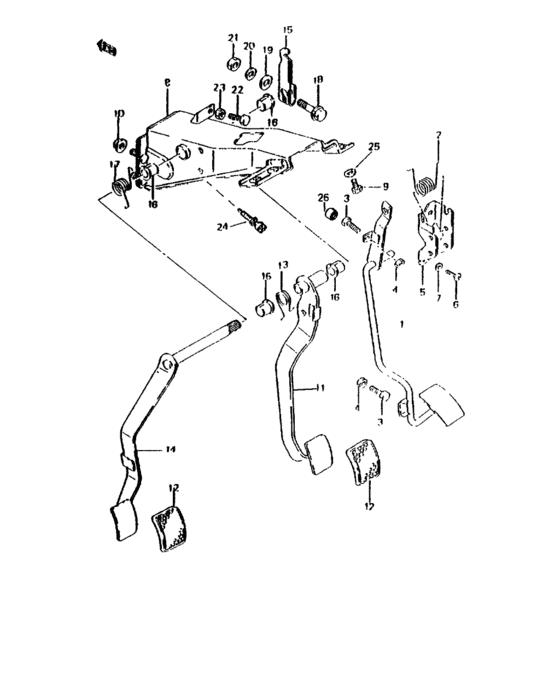

Groupe - catalog. samurai milsubgroupe - h - 0 - 5 ens. pedales (GROUPE - CATALOG. SAMURAI MILSUBGROUPE - H - 0 - 5 ENS. PEDALES) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
37740-B6601-000
Interrupteur
|
37740-B6601-000 |
— | ||
|
|
37740-C6601-000
Interrupteur
|
37740-C6601-000 |
— | ||
|
1
|
1
49410-83011-000
Pedale acceleration
|
49410-83011-000 |
— | ||
| replacement | |||||
|
1
|
1
49410-83013-000
PEDAL,ACCELERATOR
|
49410-83013-000 |
— | ||
|
2
|
2
09448-21003-000
スプリング
|
09448-21003-000 |
— | ||
| replacement | |||||
|
2
|
2
09448-21005-000 SPRING |
09448-21005-000 |
US $36.10 |
||
|
3
|
3
09100-06055-000 BOLT(6X25)Bolt |
09100-06055-000 |
from US $1.82 |
||
|
4
|
4
08310-11066-000
Nut
|
08310-11066-000 |
— | ||
| replacements | |||||
|
4
|
4
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
4
|
4
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
5
|
5
49511-80110-000
Bracket, accelerator pedal
|
49511-80110-000 |
— | ||
| replacement | |||||
|
5
|
5
49511-80111-000 BRACKET,ACCELERATOR |
49511-80111-000 |
US $6.26 |
||
|
6
|
6
02112-06126-000
Screw 6x12
|
02112-06126-000 |
— | ||
| replacements | |||||
|
6
|
6
02112-0612B-000 SCREWScrew, oil guide plate |
02112-0612B-000 |
from US $0.80 |
||
|
6
|
6
02112-0612A-000 SCREW |
02112-0612A-000 |
from US $0.76 |
||
|
7
|
7
08321-A3106-700
Rondelle
|
08321-A3106-700 |
— | ||
|
8
|
8
49710-A8011-000
Support servo
|
49710-A8011-000 |
— | ||
|
9
|
9
01107-08206-000
Bolt
|
01107-08206-000 |
— | ||
| replacement | |||||
|
9
|
9
01500-0820A-000 Bolt |
01500-0820A-000 |
from US $0.80 |
||
|
10
|
10
08316-A1608-600
Ecrou
|
08316-A1608-600 |
— | ||
|
11
|
11
49610-80110-000
PEDAL,BRAKE
|
49610-80110-000 |
— | ||
|
12
|
12
49751-79001-000
Pad, pedal
|
49751-79001-000 |
— | ||
| replacement | |||||
|
12
|
12
49751-58J00-000 PAD,PEDAL |
49751-58J00-000 |
from US $4.48 |
||
|
13
|
13
09448-31030-000 SPRING |
09448-31030-000 |
US $30.50 |
||
|
14
|
14
49810-80110-000
Pedal embrayage
|
49810-80110-000 |
— | ||
| replacement | |||||
|
14
|
14
49810-70A10-000
PEDAL,CLUTCH
|
49810-70A10-000 |
— | ||
|
15
|
15
49821-80110-000
Levier axe
|
49821-80110-000 |
— | ||
| replacement | |||||
|
15
|
15
49820-80110-000
ARM,CLUTCH PEDAL SHAFT
|
49820-80110-000 |
— | ||
|
16
|
16
09306-14004-000 BUSH |
09306-14004-000 |
US $1.92 |
||
|
17
|
17
09448-30010-000
SPRING
|
09448-30010-000 |
— | ||
|
18
|
18
01517-08356-000
Bolt, front
|
01517-08356-000 |
— | ||
| replacements | |||||
|
18
|
18
01550-0835B-000 BOLT |
01550-0835B-000 |
from US $1.12 |
||
|
18
|
18
01550-0835A-000 BOLT |
01550-0835A-000 |
from US $1.12 |
||
|
19
|
19
02009-00000-000
Washer
|
02009-00000-000 |
— | ||
|
20
|
20
08321-B3108-600
Grower washer
|
08321-B3108-600 |
— | ||
|
21
|
21
08310-11086-000
Nut
|
08310-11086-000 |
— | ||
| replacement | |||||
|
21
|
21
08310-00087-000 NUT |
08310-00087-000 |
from US $0.76 |
||
|
22
|
22
09100-06055-000 BOLT(6X25)Bolt |
09100-06055-000 |
from US $1.82 |
||
|
23
|
23
08310-11066-000
Nut
|
08310-11066-000 |
— | ||
| replacements | |||||
|
23
|
23
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
23
|
23
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
24
|
24
37740-A6601-000
Interrupteur
|
37740-A6601-000 |
— | ||
|
25
|
25
09160-T0807-500
Flat washer
|
09160-T0807-500 |
— | ||
|
26
|
26
09251-09002-000
CAP(OD:13.6)
|
09251-09002-000 |
— | ||
| replacement | |||||
|
26
|
26
09251-09008-000 Cap(Od:13.6) |
09251-09008-000 |
US $19.50 |
||
