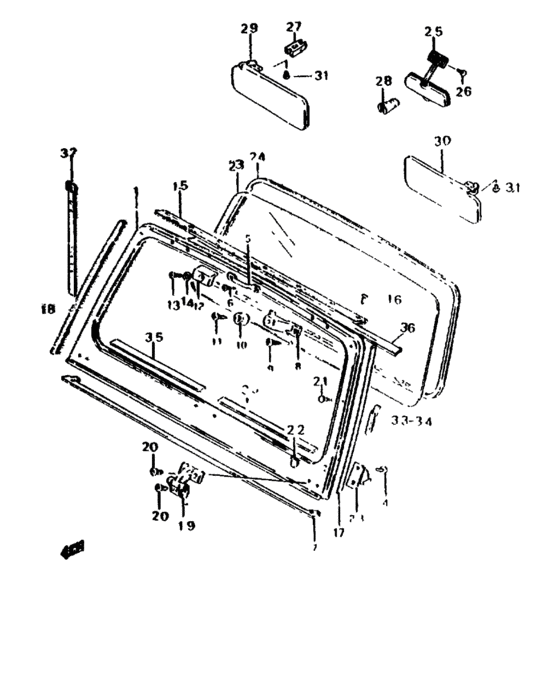

Groupe - catalog. samurai milsubgroupe - j - 0 - 6 parabrises (GROUPE - CATALOG. SAMURAI MILSUBGROUPE - J - 0 - 6 PARABRISES) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
84511-80171-000
Glace partebrisse
|
84511-80171-000 |
— | ||
|
|
84645-B8010-100
Bande laterale
|
84645-B8010-100 |
— | ||
|
1
|
1
59101-80030-000
Parabrises mod j
|
59101-80030-000 |
— | ||
|
2
|
2
72411-80000-000 STAY,FRONT WINDOW LOCK,R |
72411-80000-000 |
US $2.72 |
||
|
3
|
3
72412-80000-000 STAY,FRONT WINDOW LOCK,L |
72412-80000-000 |
US $2.72 |
||
|
4
|
4
02142-06165-000
Screw
|
02142-06165-000 |
— | ||
| replacement | |||||
|
4
|
4
02142-0616A-000 SCREW |
02142-0616A-000 |
from US $0.76 |
||
|
5
|
5
72415-80000-000 HOOK,FR WINDOW STOPPER |
72415-80000-000 |
US $2.83 |
||
|
6
|
6
02112-05103-000
Bolt
|
02112-05103-000 |
— | ||
| replacement | |||||
|
6
|
6
02112-0510A-000 SCREW |
02112-0510A-000 |
from US $0.76 |
||
|
7
|
7
72413-80003-000
Etancheite int
|
72413-80003-000 |
— | ||
| replacement | |||||
|
7
|
7
72413-83000-000 WEATHERSTRIP,FR WDO UNDER |
72413-83000-000 |
US $77.60 |
||
|
8
|
8
72414-80000-000 BRACKET,FR WINDOW CUSHION |
72414-80000-000 |
US $2.72 |
||
|
9
|
9
03211-05163-000
Screw
|
03211-05163-000 |
— | ||
| replacement | |||||
|
9
|
9
03211-0516A-000 SCREW |
03211-0516A-000 |
US $0.80 |
||
|
10
|
10
09320-06006-000 CUSHION |
09320-06006-000 |
US $1.76 |
||
|
11
|
11
03211-05163-000
Screw
|
03211-05163-000 |
— | ||
| replacement | |||||
|
11
|
11
03211-0516A-000 SCREW |
03211-0516A-000 |
US $0.80 |
||
|
12
|
12
78142-A8010-000
Caoutchouc mod v
|
78142-A8010-000 |
— | ||
|
13
|
13
02142-05168-000
Screw
|
02142-05168-000 |
— | ||
| replacement | |||||
|
13
|
13
02142-05167-000 SCREWScrew, air intk guide no.2 |
02142-05167-000 |
from US $0.76 |
||
|
14
|
14
08322-21058-000
Washer
|
08322-21058-000 |
— | ||
| replacement | |||||
|
14
|
14
08322-01057-000 WASHERWasher, front hook holder |
08322-01057-000 |
from US $0.80 |
||
|
15
|
15
72418-80003-000 GARNISH,FR WINDOW,UPR |
72418-80003-000 |
US $26.60 |
||
|
16
|
16
03111-05203-000
New Genuine Part
|
03111-05203-000 |
— | ||
| replacement | |||||
|
16
|
16
03111-0520A-000 SCREW |
03111-0520A-000 |
US $0.80 |
||
|
17
|
17
84644-A8000-100
Seal, fr window side
|
84644-A8000-100 |
— | ||
|
18
|
18
84645-A8010-100
Tapissere mod - v
|
84645-A8010-100 |
— | ||
|
19
|
19
72420-80010-000 HINGE,FR WINDOW |
72420-80010-000 |
US $31.20 |
||
|
20
|
20
09125-06022-000 SCREW(6X16)Screw (6x16) |
09125-06022-000 |
US $11.80 |
||
|
21
|
21
09250-02001-000
CAP(OD:6)
|
09250-02001-000 |
— | ||
| replacement | |||||
|
21
|
21
09250-02002-000 Cap(Od:6) |
09250-02002-000 |
US $1.92 |
||
|
22
|
22
09250-14003-000 CAP(OD:18) |
09250-14003-000 |
US $2.08 |
||
|
23
|
23
84511-80132-000
ガラス,ウィンドシールド(クリア)
|
84511-80132-000 |
— | ||
| replacement | |||||
|
23
|
23
84511-82C00-000
GLASS,WINDSHIELD
|
84511-82C00-000 |
— | ||
|
24
|
24
84611-A8010-000
Profil parebrisse
|
84611-A8010-000 |
— | ||
|
25
|
25
84703-80000-000
ミラーアッシ,インサイドリヤビュー
|
84703-80000-000 |
— | ||
| replacement | |||||
|
25
|
25
84703-80000-5PK MIRROR ASSY,INS RR VIEW |
84703-80000-5PK |
US $241.60 |
||
|
26
|
26
02142-05128-000
Screw
|
02142-05128-000 |
— | ||
| replacement | |||||
|
26
|
26
02142-05127-000 SCREW |
02142-05127-000 |
from US $0.80 |
||
|
27
|
27
86169-79000-000
SUPPORT,INSIDE MIRROR STAY
|
86169-79000-000 |
— | ||
|
28
|
28
84781-80000-000 SUPPORT,INSIDE REAR VIEW |
84781-80000-000 |
US $8 |
||
|
29
|
29
84801-83030-000
Pare soleil cd
|
84801-83030-000 |
— | ||
|
30
|
30
84802-80011-000
Pare - soleil cg
|
84802-80011-000 |
— | ||
|
31
|
31
02132-05105-000
Screw
|
02132-05105-000 |
— | ||
| replacement | |||||
|
31
|
31
02122-0510A-000 SCREW |
02122-0510A-000 |
US $0.80 |
||
|
32
|
32
72450-A8000-000
Courroie fenetre
|
72450-A8000-000 |
— | ||
|
33
|
33
84648-80011-000 GARNISH,FR WINDOW SIDE,R |
84648-80011-000 |
US $2.24 |
||
|
34
|
34
84649-80011-000 GARNISH,FR WINDOW SIDE,L |
84649-80011-000 |
US $2.24 |
||
|
35
|
35
72416-83000-000 SHEET,FRONT WINDOW REAR LOWER |
72416-83000-000 |
US $11.36 |
||
|
36
|
36
72419-83010-000 PAD,FR WINDOW GARNISH |
72419-83010-000 |
US $12.01 |
||
