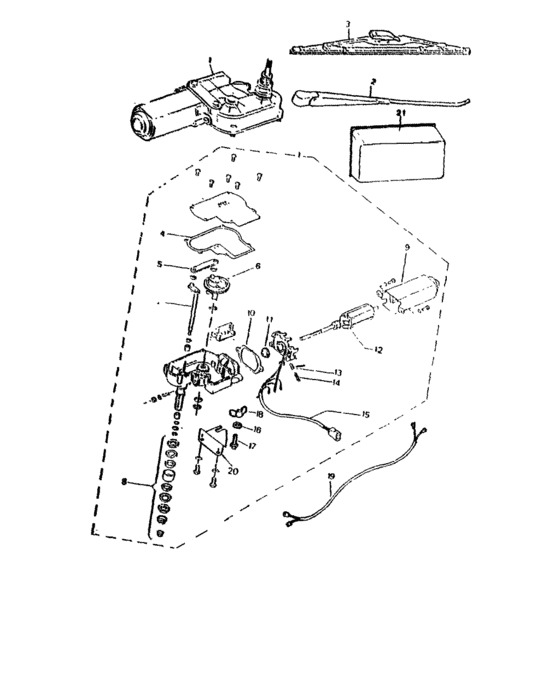

Groupe - catalog. samurai milsubgroupe - k - 1 - 0 essuie ht arrier (GROUPE - CATALOG. SAMURAI MILSUBGROUPE - K - 1 - 0 ESSUIE HT ARRIER) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35008-00000-000
Moteur hard-top
CS2152 - KIT |
35008-00000-000 |
— | ||
|
2
|
2
35009-00000-000
Brass hard top
CS2152 - KIT |
35009-00000-000 |
— | ||
|
3
|
3
35010-00000-000
Balai essuie glace
|
35010-00000-000 |
— | ||
|
4
|
4
00000-A0033-000
Gasket
|
00000-A0033-000 |
— | ||
|
5
|
5
00000-A0033-100
Conducted conn. rod
|
00000-A0033-100 |
— | ||
|
6
|
6
00000-A0033-200
Rove axe
|
00000-A0033-200 |
— | ||
|
7
|
7
00000-A0033-300
Bielle
|
00000-A0033-300 |
— | ||
|
8
|
8
00000-A0033-400
Ens soport
|
00000-A0033-400 |
— | ||
|
9
|
9
00000-A0033-500
Motor connecting rod
|
00000-A0033-500 |
— | ||
|
10
|
10
00000-A0033-600
Gasket
|
00000-A0033-600 |
— | ||
|
11
|
11
00000-A0033-700
Rondelle caoutchouc
|
00000-A0033-700 |
— | ||
|
12
|
12
00000-A0033-800
Stator
|
00000-A0033-800 |
— | ||
|
13
|
13
00000-A0033-900
Brush
|
00000-A0033-900 |
— | ||
|
14
|
14
00000-A0034-000
Spring
|
00000-A0034-000 |
— | ||
|
15
|
15
00000-A0034-100
Sop balai et cable
|
00000-A0034-100 |
— | ||
|
16
|
16
09160-06020-000
Washer
|
09160-06020-000 |
— | ||
| replacement | |||||
|
16
|
16
09160-06066-000 WASHER(6.5X20X1.6)Washer, throttle lever (6.5x20x1.6) |
09160-06066-000 |
from US $0.96 |
||
|
17
|
17
00004-00000-000
Vis
|
00004-00000-000 |
— | ||
|
18
|
18
04002-00000-000
Ecrou
|
04002-00000-000 |
— | ||
|
19
|
19
35226-00000-000
Cableage essui-glace
|
35226-00000-000 |
— | ||
|
20
|
20
00000-A0048-700
Engine bracket
|
00000-A0048-700 |
— | ||
|
21
|
21
51793-00000-000
Couvercle moteur
CS2165 - KIT |
51793-00000-000 |
— | ||
