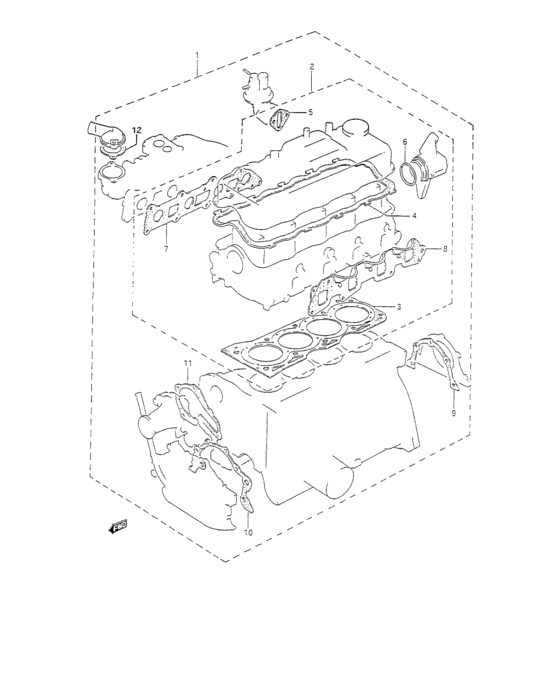

Engine gasket set (ENGINE GASKET SET) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11400-83818-000
Gasket set, engine
<-11400-83817 |
11400-83818-000 |
— | ||
| replacement | |||||
|
1
|
1
11400-83873-000
GASKET SET,ENGINE
<-11400-83817 |
11400-83873-000 |
— | ||
|
2
|
2
11100-83815-000
Gasket set, cylinder head
<-11100-83815 |
11100-83815-000 |
— | ||
| replacement | |||||
|
2
|
2
11100-83819-000
New Genuine Part
<-11100-83815 |
11100-83819-000 |
— | ||
|
3
|
3
11141-82611-000
Joint culasse
<-11141-82602 |
11141-82611-000 |
— | ||
| replacement | |||||
|
3
|
3
11141-86502-000 GASKET,CYL HEADGasket, cylinder head <-11141-82602 |
11141-86502-000 |
from US $50.33 |
||
|
4
|
4
11189-82600-000 GASKET,CYL HEAD COVER |
11189-82600-000 |
from US $15.21 |
||
|
5
|
5
15319-63B00-000 GASKET,FUEL PUMP |
15319-63B00-000 |
US $8.16 |
||
|
6
|
6
09280-56004-000 O RING(D:1.9,ID:55.5) |
09280-56004-000 |
from US $1.48 |
||
|
7
|
7
13119-82601-000
Joint collecteur
|
13119-82601-000 |
— | ||
| replacement | |||||
|
7
|
7
13119-63B11-000 GASKET,INTK MANF |
13119-63B11-000 |
US $48 |
||
|
8
|
8
14140-83010-000 GASKET,EXH MANF<-14140-83000 |
14140-83010-000 |
US $68 |
||
|
9
|
9
11349-82010-000
Gasket, oil seal housing
<-11349-82000 |
11349-82010-000 |
— | ||
| replacement | |||||
|
9
|
9
11349-60A01-000 GASKET,OIL SEAL HSGGasket, oil seal housing <-11349-82000 |
11349-60A01-000 |
from US $6.05 |
||
|
10
|
10
16119-82000-000
Joint
|
16119-82000-000 |
— | ||
| replacement | |||||
|
10
|
10
16119-82012-000 GASKET,OIL PUMP |
16119-82012-000 |
US $23.20 |
||
|
11
|
11
17431-60A00-000 GASKET,WATER PUMP<-17431-82000 |
17431-60A00-000 |
from US $3.80 |
||
|
12
|
12
17569-80000-000
Joint thermostat
|
17569-80000-000 |
— | ||
| replacement | |||||
|
12
|
12
17569-60A10-000 GASKET,THERMO CAP |
17569-60A10-000 |
US $4.32 |
||
