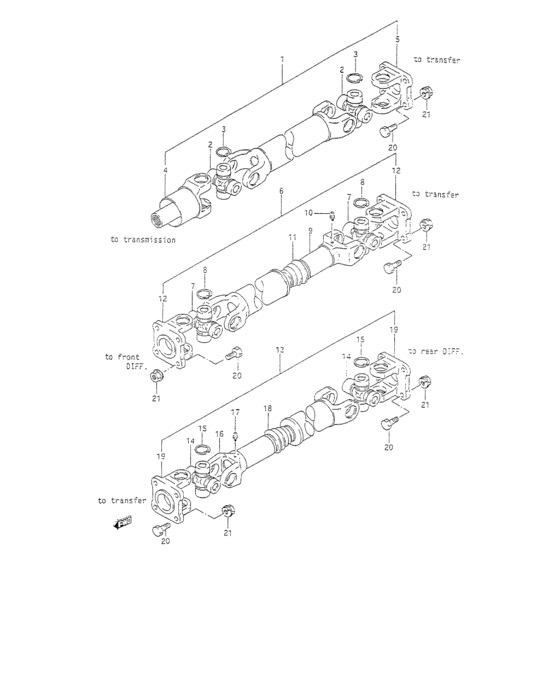

Propeller shaft (PROPELLER SHAFT) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27101-83001-000
Shaft assy, propeller no.1
<-27101-83000 |
27101-83001-000 |
— | ||
| replacement | |||||
|
1
|
1
27101-83002-000 SHAFT ASSY,PROPELLER<-27101-83000 |
27101-83002-000 |
US $358.80 |
||
|
2
|
2
27200-83810-000
ジョイントアッシ,ユニバーサル
<-27200-83010 |
27200-83810-000 |
— | ||
| replacements | |||||
|
2
|
2
27200-83812-000
JOINT SET,UNIVERSAL
<-27200-83010 |
27200-83812-000 |
— | ||
|
2
|
2
27200-83813-000 Joint Set,universal<-27200-83010 |
27200-83813-000 |
from US $53.48 |
||
|
3
|
3
08331-41256-000
サークリップ
|
08331-41256-000 |
— | ||
| replacement | |||||
|
3
|
3
51118-36213-000 RING,SNAP |
51118-36213-000 |
from US $2.24 |
||
|
4
|
4
27140-83001-000 YOKE,SLIDING<-27140-83000 |
27140-83001-000 |
US $122.37 |
||
|
5
|
5
27131-83001-000 YOKE,CROSS JOINT FLANGE<-27131-83000 |
27131-83001-000 |
US $52.62 |
||
|
6
|
6
27102-83001-000
Shaft assy, propeller no.2
FRONT DRIVE,<-27102-83000 |
27102-83001-000 |
— | ||
| replacement | |||||
|
6
|
6
27102-83002-000 SHAFT ASSY,PROPELLERFRONT DRIVE,<-27102-83000 |
27102-83002-000 |
US $450.56 |
||
|
7
|
7
27200-83810-000
ジョイントアッシ,ユニバーサル
<-27200-83010 |
27200-83810-000 |
— | ||
| replacements | |||||
|
7
|
7
27200-83812-000
JOINT SET,UNIVERSAL
<-27200-83010 |
27200-83812-000 |
— | ||
|
7
|
7
27200-83813-000 Joint Set,universal<-27200-83010 |
27200-83813-000 |
from US $53.48 |
||
|
8
|
8
08331-41256-000
サークリップ
|
08331-41256-000 |
— | ||
| replacement | |||||
|
8
|
8
51118-36213-000 RING,SNAP |
51118-36213-000 |
from US $2.24 |
||
|
9
|
9
27180-83001-000 YOKE,SLIDING<-27180-83000 |
27180-83001-000 |
US $148.96 |
||
|
10
|
10
08351-21008-000
Grease nipple
|
08351-21008-000 |
— | ||
| replacement | |||||
|
10
|
10
08351-2100A-000 NIPPLE |
08351-2100A-000 |
from US $2.40 |
||
|
11
|
11
27153-83000-000
ブーツ,プロペラシャフト
|
27153-83000-000 |
— | ||
| replacements | |||||
|
11
|
11
27153-83001-000
BOOT,PROPELLER SHAFT
|
27153-83001-000 |
— | ||
|
11
|
11
27153-77R00-000 Boot,propeller Shaft |
27153-77R00-000 |
from US $7.65 |
||
|
12
|
12
27131-83001-000 YOKE,CROSS JOINT FLANGE<-27131-83000 |
27131-83001-000 |
US $52.62 |
||
|
13
|
13
27103-83001-000
Shaft assy, propeller no.3
REAR DRIVE,<-27103-83000 |
27103-83001-000 |
— | ||
| replacement | |||||
|
13
|
13
27103-82C01-000 SHAFT ASSY,PROPELLERREAR DRIVE,<-27103-83000 |
27103-82C01-000 |
US $984.96 |
||
|
14
|
14
27200-83810-000
ジョイントアッシ,ユニバーサル
<-27200-83010 |
27200-83810-000 |
— | ||
| replacements | |||||
|
14
|
14
27200-83812-000
JOINT SET,UNIVERSAL
<-27200-83010 |
27200-83812-000 |
— | ||
|
14
|
14
27200-83813-000 Joint Set,universal<-27200-83010 |
27200-83813-000 |
from US $53.48 |
||
|
15
|
15
08331-41256-000
サークリップ
|
08331-41256-000 |
— | ||
| replacement | |||||
|
15
|
15
51118-36213-000 RING,SNAP |
51118-36213-000 |
from US $2.24 |
||
|
16
|
16
27180-83001-000 YOKE,SLIDING<-27180-83000 |
27180-83001-000 |
US $148.96 |
||
|
17
|
17
08351-21008-000
Grease nipple
|
08351-21008-000 |
— | ||
| replacement | |||||
|
17
|
17
08351-2100A-000 NIPPLE |
08351-2100A-000 |
from US $2.40 |
||
|
18
|
18
27153-83000-000
ブーツ,プロペラシャフト
|
27153-83000-000 |
— | ||
| replacements | |||||
|
18
|
18
27153-83001-000
BOOT,PROPELLER SHAFT
|
27153-83001-000 |
— | ||
|
18
|
18
27153-77R00-000 Boot,propeller Shaft |
27153-77R00-000 |
from US $7.65 |
||
|
19
|
19
27131-83001-000 YOKE,CROSS JOINT FLANGE<-27131-83000 |
27131-83001-000 |
US $52.62 |
||
|
20
|
20
09100-08270-000 BOLT(8X28) |
09100-08270-000 |
US $1.67 |
||
|
21
|
21
09159-08068-000
ナット
|
09159-08068-000 |
— | ||
| replacement | |||||
|
21
|
21
09159-08075-000 NUT |
09159-08075-000 |
US $0.91 |
||
