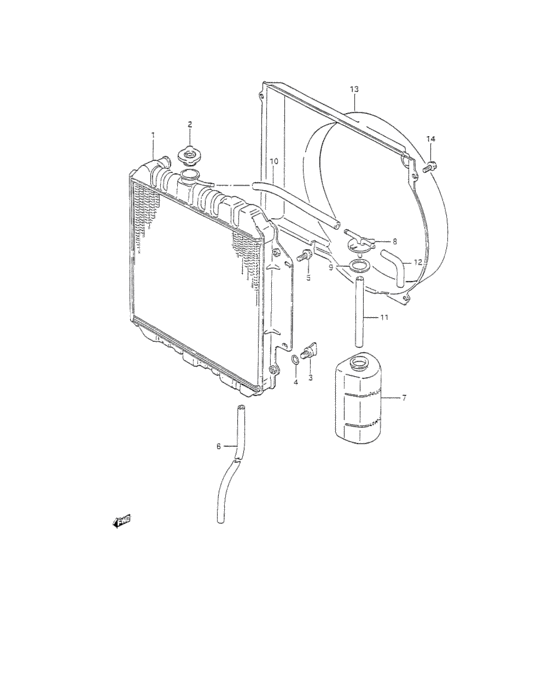

Radiator (RADIATOR) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17700-83011-000
Radiator assy
<-17700-83010 |
17700-83011-000 |
— | ||
| replacement | |||||
|
1
|
1
17700-83002-000 RADIATOR ASSY<-17700-83010 |
17700-83002-000 |
US $1,319.36 |
||
|
2
|
2
17920-82000-000
Cap, radiator
|
17920-82000-000 |
— | ||
| replacement | |||||
|
2
|
2
17920-60B21-000 CAP,RADIATOR 0.9 |
17920-60B21-000 |
US $15.36 |
||
|
3
|
3
17751-72010-000 PLUG,DRAIN |
17751-72010-000 |
US $3.80 |
||
|
4
|
4
17759-72010-000 O-RING |
17759-72010-000 |
US $1.52 |
||
|
5
|
5
01517-06103-000
ボルト
|
01517-06103-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
5
|
5
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
6
|
6
09351-75111-300
ホース,7.5X11.5X300
L:300->180 |
09351-75111-300 |
— | ||
| replacement | |||||
|
6
|
6
09351-75111-600 HOSE(7.5X11.5X600)L:300->180 |
09351-75111-600 |
US $2.89 |
||
|
7
|
7
17931-80000-000
タンク,ウォータリザーブ
|
17931-80000-000 |
— | ||
| replacement | |||||
|
7
|
7
17931-80001-000 TANK,WATER RESERVE |
17931-80001-000 |
from US $15.35 |
||
|
8
|
8
17932-82001-000 CAP,WATER RESERVOIR TANKCap, water reservoir tank |
17932-82001-000 |
US $9.12 |
||
|
9
|
9
17933-82002-000 RUBBER,WTR RSV TANK CAP<-17933-82001 |
17933-82002-000 |
US $2.13 |
||
|
10
|
10
09352-70121-300
Hose 7x12.1x600
L:300->265 |
09352-70121-300 |
— | ||
| replacement | |||||
|
10
|
10
09352-70121-600 HOSE(7X12.1X600)Hose (inmani to iac) L:300->265 |
09352-70121-600 |
from US $4.84 |
||
|
11
|
11
09352-70121-300
Hose 7x12.1x600
L:300->170 |
09352-70121-300 |
— | ||
| replacement | |||||
|
11
|
11
09352-70121-600 HOSE(7X12.1X600)Hose (inmani to iac) L:300->170 |
09352-70121-600 |
from US $4.84 |
||
|
12
|
12
17859-80701-000 HOSE,WATER BYPASS<-17859-80700 |
17859-80701-000 |
US $2.74 |
||
|
13
|
13
17761-83000-000 SHROUD,FAN |
17761-83000-000 |
US $79.04 |
||
|
14
|
14
01517-06103-000
ボルト
|
01517-06103-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
14
|
14
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
