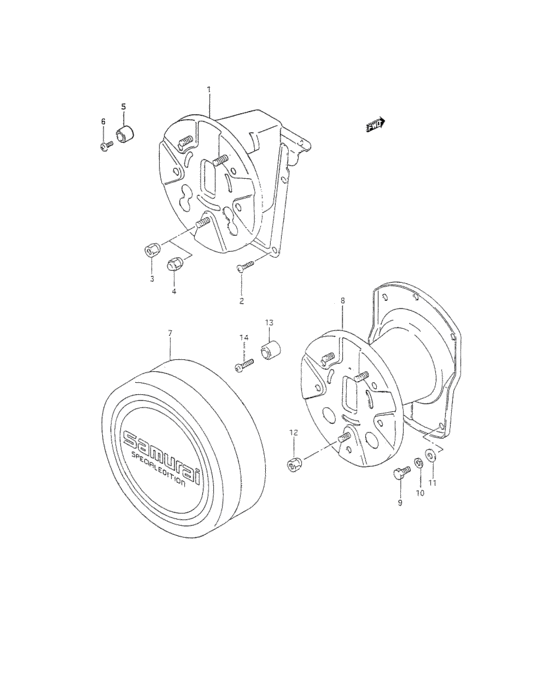

Tire carrier (TIRE CARRIER) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
72810-80022-000
Carrier, spare tire
|
72810-80022-000 |
— | ||
| replacement | |||||
|
1
|
1
72810-50C00-000
CARRIER,SPARE TIRE
|
72810-50C00-000 |
— | ||
|
2
|
2
09125-08011-000
スクリュ
|
09125-08011-000 |
— | ||
| replacement | |||||
|
2
|
2
09125-08015-XC0 SCREW(8X20) |
09125-08015-XC0 |
US $1.60 |
||
|
3
|
3
09140-12026-000
ナット
|
09140-12026-000 |
— | ||
| replacement | |||||
|
3
|
3
09140-12042-000 NUT |
09140-12042-000 |
from US $1.33 |
||
|
4
|
4
09159-12024-000 NUT86 MODEL,SPECIAL EDITION,87 MODEL,SPECIAL EDITION S |
09159-12024-000 |
from US $2.40 |
||
|
5
|
5
09320-06006-000 CUSHION |
09320-06006-000 |
from US $1.04 |
||
|
6
|
6
02112-06163-000
Screw
|
02112-06163-000 |
— | ||
| replacements | |||||
|
6
|
6
02112-0616B-000 SCREW |
02112-0616B-000 |
from US $0.80 |
||
|
6
|
6
02112-0616A-000 SCREW |
02112-0616A-000 |
from US $0.76 |
||
|
7
|
7
72880-83050-9TL
Cover, spare tire
87 MODEL,SPECIAL EDITION S |
72880-83050-9TL |
— | ||
|
8
|
8
83960-83501-000
CARRIER,SPARE TIRE
<-83960-83500 |
83960-83501-000 |
— | ||
|
9
|
9
01107-10203-000 ボルト |
01107-10203-000 |
US $2.22 |
||
| replacement | |||||
|
9
|
9
01500-1020B-000 BOLTBolt, axle bearing housing |
01500-1020B-000 |
from US $0.76 |
||
|
10
|
10
08321-21103-000 Lock washer |
08321-21103-000 |
from US $0.77 |
||
| replacements | |||||
|
10
|
10
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
10
|
10
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
11
|
11
08322-21103-000 ワッシャ |
08322-21103-000 |
US $2.73 |
||
| replacements | |||||
|
11
|
11
08322-0110A-000 WASHERWasher, knuckle end |
08322-0110A-000 |
from US $0.80 |
||
|
11
|
11
08322-0110B-000 WASHERWasher, knuckle end |
08322-0110B-000 |
from US $0.76 |
||
|
12
|
12
09140-12026-000
ナット
86 MODEL,87 MODEL:JA |
09140-12026-000 |
— | ||
| replacement | |||||
|
12
|
12
09140-12042-000 NUT86 MODEL,87 MODEL:JA |
09140-12042-000 |
from US $1.33 |
||
|
12
|
12
09159-12024-000 NUT87 MODEL:JX,CHROMIUM PLATED |
09159-12024-000 |
from US $2.40 |
||
|
13
|
13
09320-06006-000 CUSHION |
09320-06006-000 |
from US $1.04 |
||
|
14
|
14
02112-06166-000
Screw
|
02112-06166-000 |
— | ||
| replacements | |||||
|
14
|
14
02112-0616B-000 SCREW |
02112-0616B-000 |
from US $0.80 |
||
|
14
|
14
02112-0616A-000 SCREW |
02112-0616A-000 |
from US $0.76 |
||
