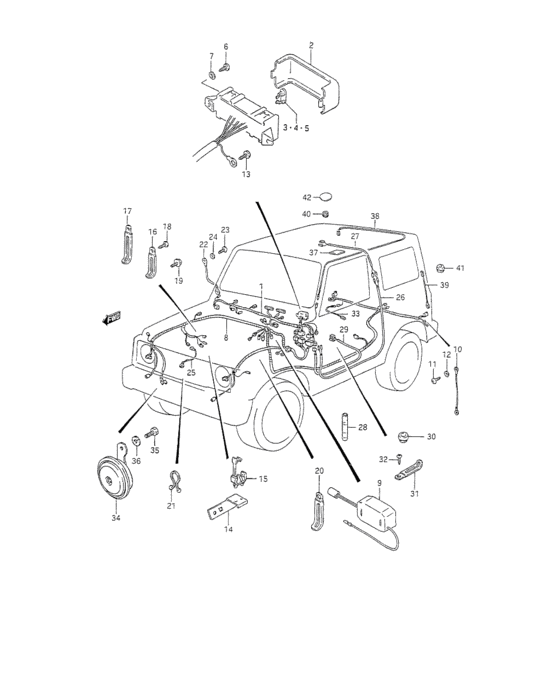

Wiring harness (WIRING HARNESS) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610-83100-000
Harness, wiring no.1
|
36610-83100-000 |
— | ||
|
2
|
2
36717-80011-000
Cover,fuse box
|
36717-80011-000 |
— | ||
|
3
|
3
09481-05101-000 FUSE(5A) |
09481-05101-000 |
from US $2.82 |
||
|
4
|
4
09481-10101-000 FUSE(10A) |
09481-10101-000 |
from US $1.28 |
||
|
5
|
5
09481-15101-000 FUSE(15A)Fuse (15a) |
09481-15101-000 |
from US $1.28 |
||
|
6
|
6
03211-05128-000
Screw
|
03211-05128-000 |
— | ||
| replacement | |||||
|
6
|
6
03212-0512B-000 SCREW |
03212-0512B-000 |
from US $0.80 |
||
|
7
|
7
08322-21057-000
Washer
|
08322-21057-000 |
— | ||
| replacement | |||||
|
7
|
7
08322-01057-000 WASHERWasher, front hook holder |
08322-01057-000 |
from US $0.80 |
||
|
8
|
8
36620-83091-000
Harness, wiring no.2
<-36620-83090 |
36620-83091-000 |
— | ||
|
9
|
9
33552-83000-000
FILTER ASSY,NOISE SUPPR
|
33552-83000-000 |
— | ||
|
10
|
10
36821-83000-000
Wire, earth
|
36821-83000-000 |
— | ||
| replacement | |||||
|
10
|
10
36821-80000-000 REED WIRE,WINDOW EARTH |
36821-80000-000 |
US $6.40 |
||
|
11
|
11
03111-05126-000
New Genuine Part
|
03111-05126-000 |
— | ||
| replacement | |||||
|
11
|
11
03111-0512A-000 SCREW |
03111-0512A-000 |
from US $0.80 |
||
|
12
|
12
08322-21056-000
Washer
|
08322-21056-000 |
— | ||
| replacements | |||||
|
12
|
12
08322-0105B-000 WASHER |
08322-0105B-000 |
from US $0.76 |
||
|
12
|
12
08322-0105A-000 WASHERWasher, front |
08322-0105A-000 |
from US $0.80 |
||
|
13
|
13
09129-06002-000 SCREW(6X12) |
09129-06002-000 |
US $0.96 |
||
|
14
|
14
36625-83000-000 BRACKET,HARN&CABLE |
36625-83000-000 |
US $2.24 |
||
|
15
|
15
09403-16306-000
CLAMP
|
09403-16306-000 |
— | ||
|
16
|
16
09404-06404-000
Clamp, fuel hose
|
09404-06404-000 |
— | ||
| replacements | |||||
|
16
|
16
09404-06434-000
CLAMP(L:80 T:1.0)
|
09404-06434-000 |
— | ||
|
16
|
16
09404-06433-000
CLAMP(L:80)
|
09404-06433-000 |
— | ||
|
16
|
16
09404-06436-000 Clamp(L:80) |
09404-06436-000 |
from US $2.13 |
||
|
16
|
16
09404-06036-000 Clamp(L:80) |
09404-06036-000 |
from US $1.82 |
||
|
17
|
17
09404-06405-000
Clamp
|
09404-06405-000 |
— | ||
| replacements | |||||
|
17
|
17
09404-06434-000
CLAMP(L:80 T:1.0)
|
09404-06434-000 |
— | ||
|
17
|
17
09404-06433-000
CLAMP(L:80)
|
09404-06433-000 |
— | ||
|
17
|
17
09404-06436-000 Clamp(L:80) |
09404-06436-000 |
from US $2.13 |
||
|
17
|
17
09404-06036-000 Clamp(L:80) |
09404-06036-000 |
from US $1.82 |
||
|
18
|
18
03141-05128-000
スクリュ
|
03141-05128-000 |
— | ||
| replacement | |||||
|
18
|
18
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.76 |
||
|
19
|
19
01517-06103-000
ボルト
|
01517-06103-000 |
— | ||
| replacements | |||||
|
19
|
19
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
19
|
19
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
20
|
20
09404-08402-000
Clamp
|
09404-08402-000 |
— | ||
| replacement | |||||
|
20
|
20
09404-08420-000 CLAMP(L:120 T:1.0) |
09404-08420-000 |
from US $2.08 |
||
|
21
|
21
09408-00012-000 CLIP(ID:11.5)Clamp, stop switch lead (id:11.5) |
09408-00012-000 |
from US $3.37 |
||
|
22
|
22
36821-80000-000 REED WIRE,WINDOW EARTH |
36821-80000-000 |
US $6.40 |
||
|
23
|
23
03112-05129-000
Screw
|
03112-05129-000 |
— | ||
| replacement | |||||
|
23
|
23
03111-0512A-000 SCREW |
03111-0512A-000 |
from US $0.80 |
||
|
24
|
24
08322-21057-000
Washer
|
08322-21057-000 |
— | ||
| replacement | |||||
|
24
|
24
08322-01057-000 WASHERWasher, front hook holder |
08322-01057-000 |
from US $0.80 |
||
|
25
|
25
36748-83010-000
Wire, generator
|
36748-83010-000 |
— | ||
| replacement | |||||
|
25
|
25
36748-55F00-000
WIRE,GENERATOR
|
36748-55F00-000 |
— | ||
|
26
|
26
36820-80010-000 WIRE,ROOM LAMP NO.2 |
36820-80010-000 |
US $12.16 |
||
|
27
|
27
36820-80001-000 WIRE,ROOM LAMP NO.1 |
36820-80001-000 |
US $13.92 |
||
|
28
|
28
37132-03000-000
CONNECTOR
2 PASSENGER |
37132-03000-000 |
— | ||
|
29
|
29
36823-80000-000
REED WIRE,BELT&PARKING SW
|
36823-80000-000 |
— | ||
|
30
|
30
09308-14006-000 GROMMET |
09308-14006-000 |
from US $2.88 |
||
|
31
|
31
09404-06402-000
Clamp, hose (l:60)
|
09404-06402-000 |
— | ||
| replacements | |||||
|
31
|
31
09404-06432-000
CLAMP(L:65)
|
09404-06432-000 |
— | ||
|
31
|
31
09404-06206-000
CLAMP(L:45)
|
09404-06206-000 |
— | ||
|
31
|
31
09404-06039-000 Clamp(L:65) |
09404-06039-000 |
from US $1.82 |
||
|
31
|
31
09404-06031-000 Clamp,rsvr Tank Ovfl Hose |
09404-06031-000 |
from US $1.37 |
||
|
32
|
32
03112-05129-000
Screw
|
03112-05129-000 |
— | ||
| replacement | |||||
|
32
|
32
03111-0512A-000 SCREW |
03111-0512A-000 |
from US $0.80 |
||
|
33
|
33
36822-80001-000
REED WIRE,FUEL LEVEL GAUGE
|
36822-80001-000 |
— | ||
|
34
|
34
38500-80010-000
Horn assy
|
38500-80010-000 |
— | ||
| replacement | |||||
|
34
|
34
38500-60G00-000 HORN ASSY |
38500-60G00-000 |
US $66.40 |
||
|
35
|
35
01107-08126-000
Bolt 8x12
|
01107-08126-000 |
— | ||
| replacement | |||||
|
35
|
35
01500-0812A-000 Bolt |
01500-0812A-000 |
from US $0.77 |
||
|
36
|
36
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
36
|
36
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
36
|
36
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
37
|
37
36930-82000-000
カバー
JX:2 PASSENGER |
36930-82000-000 |
— | ||
| replacement | |||||
|
37
|
37
36930-82010-000 COVER,HARNESSCover, roof wire JX:2 PASSENGER |
36930-82010-000 |
from US $1.73 |
||
|
38
|
38
36890-66700-000
Wire,defogger lead
|
36890-66700-000 |
— | ||
|
39
|
39
36891-66700-000
リードワイヤ,デフォッガアース
|
36891-66700-000 |
— | ||
|
40
|
40
09308-06003-000 GROMMET86 MODEL,87 MODEL |
09308-06003-000 |
US $16.20 |
||
|
41
|
41
09308-050A1-000
グロメット
88 MODEL,<-09308-05011 |
09308-050A1-000 |
— | ||
| replacement | |||||
|
41
|
41
09308-05011-000 GROMMET88 MODEL,<-09308-05011 |
09308-05011-000 |
US $9.20 |
||
|
42
|
42
67627-70000-000
シール,ホール
N/REAR DEFOGGER |
67627-70000-000 |
— | ||
| replacement | |||||
|
42
|
42
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole N/REAR DEFOGGER |
84761-50X50-000 |
US $6.72 |
||
