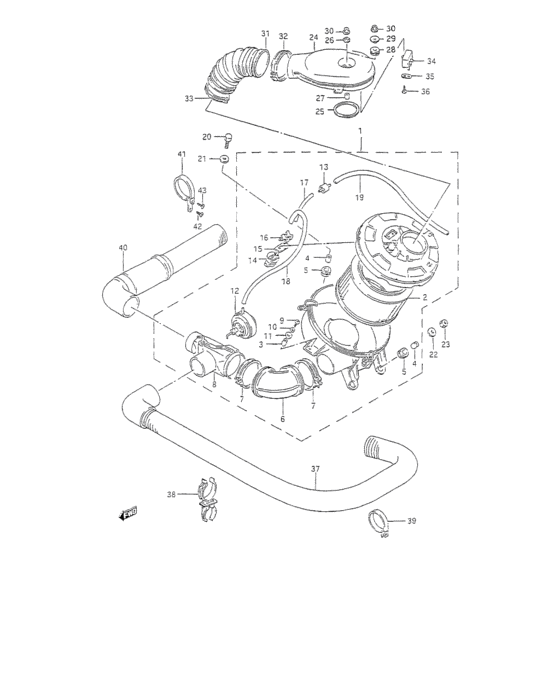

Air cleaner (AIR CLEANER) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
- grade
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13700-83040-000
Cleaner assy, air
|
13700-83040-000 |
— | ||
|
2
|
2
13780-83000-000 ELEMENT,AIR CLEANER |
13780-83000-000 |
US $38.40 |
||
| replacement | |||||
|
2
|
2
99000-990YJ-002
Filter, air cle
|
99000-990YJ-002 |
— | ||
|
3
|
3
13712-83000-000
SPACER
|
13712-83000-000 |
— | ||
|
4
|
4
13812-83001-000
Bush
<-13812-83000 |
13812-83001-000 |
— | ||
|
5
|
5
13813-83000-000 GROMMET |
13813-83000-000 |
from US $1.92 |
||
| replacement | |||||
|
5
|
5
13813-61AT0-000 GROMMET SET,AIR CLEANER |
13813-61AT0-000 |
US $6.56 |
||
|
6
|
6
13731-83001-000 JOINT,WARM AIR VALVE<-13731-83000 |
13731-83001-000 |
US $27.36 |
||
|
7
|
7
09402-70207-000
Clamp
|
09402-70207-000 |
— | ||
| replacement | |||||
|
7
|
7
09402-70902-000 CLAMP |
09402-70902-000 |
from US $6.56 |
||
|
8
|
8
13740-83030-000
VALVE,WARM AIR
|
13740-83030-000 |
— | ||
|
9
|
9
02112-06164-000
Screw
|
02112-06164-000 |
— | ||
| replacements | |||||
|
9
|
9
02112-0616B-000 SCREW |
02112-0616B-000 |
from US $0.80 |
||
|
9
|
9
02112-0616A-000 SCREW |
02112-0616A-000 |
from US $0.76 |
||
|
10
|
10
08321-21064-000
Lock washer
|
08321-21064-000 |
— | ||
| replacement | |||||
|
10
|
10
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
11
|
11
08322-21064-000
Washer
|
08322-21064-000 |
— | ||
| replacement | |||||
|
11
|
11
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
12
|
12
13748-83030-000
ACTUATOR,WARM AIR VALVE
|
13748-83030-000 |
— | ||
|
13
|
13
13715-82110-000
Valve,check
|
13715-82110-000 |
— | ||
|
14
|
14
13749-82111-000 SENSOR ASSY,THERMO |
13749-82111-000 |
US $75.25 |
||
|
15
|
15
13818-82000-000
GASKET,THERMO SENSOR
|
13818-82000-000 |
— | ||
|
16
|
16
13819-83000-000
Clamp,thermo sensor
|
13819-83000-000 |
— | ||
|
17
|
17
09343-03087-000
ホース,#2/3.5X7.5X50
|
09343-03087-000 |
— | ||
| replacements | |||||
|
17
|
17
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
|
17
|
17
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
18
|
18
09343-03101-000
ホース,#21/3.5X7.5X240
|
09343-03101-000 |
— | ||
| replacements | |||||
|
18
|
18
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
|
18
|
18
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
19
|
19
09343-03103-000
ホース,#15/3.5X7.5X340
|
09343-03103-000 |
— | ||
| replacements | |||||
|
19
|
19
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
|
19
|
19
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
20
|
20
01107-06203-000 JoltBolt, front |
01107-06203-000 |
US $0.75 |
||
| replacement | |||||
|
20
|
20
01500-0620A-000 BOLT |
01500-0620A-000 |
from US $0.76 |
||
|
20
|
20
01517-06203-000
Bolt
JS3JC51C G4107713~,JS4JC51C G4107692~,JS3JC51V G4106137~,JS4JC51V G4106105~ |
01517-06203-000 |
— | ||
| replacements | |||||
|
20
|
20
01550-0620B-000 BOLTBolt, inspection cap JS3JC51C G4107713~,JS4JC51C G4107692~,JS3JC51V G4106137~,JS4JC51V G4106105~ |
01550-0620B-000 |
from US $0.76 |
||
|
20
|
20
01550-0620A-000 BOLTJS3JC51C G4107713~,JS4JC51C G4107692~,JS3JC51V G4106137~,JS4JC51V G4106105~ |
01550-0620A-000 |
from US $0.76 |
||
|
21
|
21
09160-06027-000
Washer (6.5x20x1.2)
~JS3JC51C G4107712,~JS4JC51C G4107691,~JS3JC51V G4106136,~JS4JC51V G4106104 |
09160-06027-000 |
— | ||
| replacement | |||||
|
21
|
21
09160-06077-000 WASHER(6.5X20X1.2)Washer (6.5x20x1.2) ~JS3JC51C G4107712,~JS4JC51C G4107691,~JS3JC51V G4106136,~JS4JC51V G4106104 |
09160-06077-000 |
from US $0.96 |
||
|
22
|
22
09160-06077-000 WASHER(6.5X20X1.2)Washer (6.5x20x1.2) ~JS3JC51C G4107712,~JS4JC51C G4107691,~JS3JC51V G4106136,~JS4JC51V G4106104 |
09160-06077-000 |
from US $0.96 |
||
|
23
|
23
08310-11063-000 Nut m6x1x5 |
08310-11063-000 |
US $1.07 |
||
| replacements | |||||
|
23
|
23
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
23
|
23
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
23
|
23
08316-16063-000 NutJS3JC51C G4107713~,JS4JC51C G4107692~,JS3JC51V G4106137~,JS4JC51V G4106105~ |
08316-16063-000 |
US $2.91 |
||
| replacement | |||||
|
23
|
23
08316-1006B-000 NUTJS3JC51C G4107713~,JS4JC51C G4107692~,JS3JC51V G4106137~,JS4JC51V G4106105~ |
08316-1006B-000 |
from US $0.76 |
||
|
24
|
24
13830-83011-000
Case, air intake
->13830-83012,USED WITH 13839-83010,,09320-09034,AND 09169-06057 |
13830-83011-000 |
— | ||
| replacements | |||||
|
24
|
24
13830-83012-000
Case, air intake
->13830-83012,USED WITH 13839-83010,,09320-09034,AND 09169-06057 |
13830-83012-000 |
— | ||
|
24
|
24
09169-06057-000 WASHER->13830-83012,USED WITH 13839-83010,,09320-09034,AND 09169-06057 |
09169-06057-000 |
from US $1.76 |
||
|
24
|
24
09320-09034-000
GROMMET
->13830-83012,USED WITH 13839-83010,,09320-09034,AND 09169-06057 |
09320-09034-000 |
— | ||
|
24
|
24
13839-83010-000
BOLT,INTAKE CASE STUD
->13830-83012,USED WITH 13839-83010,,09320-09034,AND 09169-06057 |
13839-83010-000 |
— | ||
|
24
|
24
09320-09063-000 Cushion->13830-83012,USED WITH 13839-83010,,09320-09034,AND 09169-06057 |
09320-09063-000 |
from US $4.22 |
||
|
24
|
24
13830-83012-000
Case, air intake
JS3JC51C H4164092~,JS4JC51C H4164091~,JS3JC51V H4127838~,JS4JC51V H4127835~ |
13830-83012-000 |
— | ||
|
25
|
25
13885-61A00-000
シール,エアインテークケース
<-13885-83010 |
13885-61A00-000 |
— | ||
| replacement | |||||
|
25
|
25
13879-81050-000 GASKET,CARB UPR<-13885-83010 |
13879-81050-000 |
US $2.89 |
||
|
26
|
26
11180-83000-000
Washer, case seal
~JS3JC51C H4164091,~JS4JC51C H4164090,~JS3JC51V H4127837,~JS4JC51V H4127834 |
11180-83000-000 |
— | ||
| replacement | |||||
|
26
|
26
11180-82010-000 WASHER,CYL HEAD COVER SEAL~JS3JC51C H4164091,~JS4JC51C H4164090,~JS3JC51V H4127837,~JS4JC51V H4127834 |
11180-82010-000 |
from US $2.95 |
||
|
27
|
27
09180-06146-000
Spacer,6.5x10.5
~JS3JC51C H4164091,~JS4JC51C H4164090,~JS3JC51V H4127837,~JS4JC51V H4127834 |
09180-06146-000 |
— | ||
| replacement | |||||
|
27
|
27
09180-06146-XC0 SPACER(6.5X10.5X31.7)~JS3JC51C H4164091,~JS4JC51C H4164090,~JS3JC51V H4127837,~JS4JC51V H4127834 |
09180-06146-XC0 |
from US $2.54 |
||
|
28
|
28
09320-09034-000
GROMMET
JS3JC51C H4164092~,JS4JC51C H4164091~,JS3JC51V H4127838~,JS4JC51V H4127835~ |
09320-09034-000 |
— | ||
|
29
|
29
09169-06057-000 WASHERJS3JC51C H4164092~,JS4JC51C H4164091~,JS3JC51V H4127838~,JS4JC51V H4127835~ |
09169-06057-000 |
from US $1.76 |
||
|
30
|
30
08316-16063-000 Nut |
08316-16063-000 |
US $2.91 |
||
| replacement | |||||
|
30
|
30
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
31
|
31
13881-83011-000
HOSE,AIR CLEANER OUTLET
<-13881-83010 |
13881-83011-000 |
— | ||
|
32
|
32
13891-83002-000
Clamp, outlet hose
<-13891-83001 |
13891-83002-000 |
— | ||
| replacement | |||||
|
32
|
32
13891-61A0V-000 CLAMP,AIR CLEANER OUTLET HOSE<-13891-83001 |
13891-61A0V-000 |
US $14.29 |
||
|
33
|
33
09402-82202-000
Clamp
|
09402-82202-000 |
— | ||
| replacement | |||||
|
33
|
33
09402-82208-000 CLAMP |
09402-82208-000 |
from US $9.62 |
||
|
34
|
34
13747-83000-000
COMPENSATOR,HIGH IDLE
|
13747-83000-000 |
— | ||
|
35
|
35
13714-80030-000
Packing, compensator
|
13714-80030-000 |
— | ||
|
36
|
36
02112-04083-000
Screw
|
02112-04083-000 |
— | ||
| replacement | |||||
|
36
|
36
02112-0408A-000 SCREW |
02112-0408A-000 |
from US $0.80 |
||
|
37
|
37
13840-83000-000
Hose, warm air
|
13840-83000-000 |
— | ||
| replacement | |||||
|
37
|
37
13840-83011-000
HOSE,WARM AIR
|
13840-83011-000 |
— | ||
|
38
|
38
13860-83000-000
CLAMP ASSY,WARM AIR HOSE
|
13860-83000-000 |
— | ||
|
39
|
39
09403-48401-000 CLAMP |
09403-48401-000 |
US $2.13 |
||
|
40
|
40
13870-83000-000 HOSE,COOL AIR |
13870-83000-000 |
US $39.20 |
||
|
41
|
41
13896-83000-000 CLAMP,COOL AIR HOSE |
13896-83000-000 |
US $2.24 |
||
|
42
|
42
02142-06123-000
Screw
|
02142-06123-000 |
— | ||
| replacements | |||||
|
42
|
42
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
42
|
42
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
43
|
43
03141-05106-000
New Genuine Part
|
03141-05106-000 |
— | ||
| replacement | |||||
|
43
|
43
03142-0510B-000 SCREW |
03142-0510B-000 |
US $0.80 |
||
