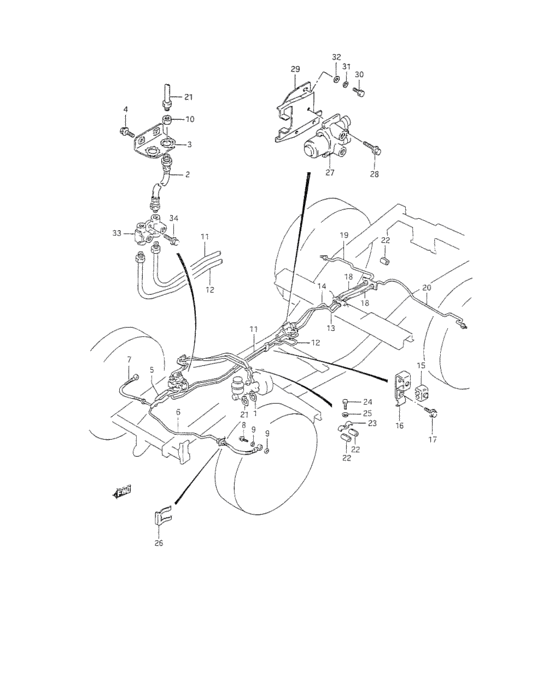

Brake piping (BRAKE PIPING) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
- grade
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51410-83100-000
Pipe, brake no. 1
|
51410-83100-000 |
— | ||
|
2
|
2
51570-83030-000
ホース,マスタシリンダフレキシブル
|
51570-83030-000 |
— | ||
| replacement | |||||
|
2
|
2
51570-80030-000 HOSE,MASTER CYLINDER FLEXIBLE |
51570-80030-000 |
US $12.80 |
||
|
3
|
3
51712-83001-000 BRACKET,MA CYL HOSE |
51712-83001-000 |
US $2.72 |
||
|
4
|
4
01517-06163-000
Bolt
|
01517-06163-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
4
|
4
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
|
5
|
5
51420-83300-000
Pipe, brake no.2
|
51420-83300-000 |
— | ||
|
6
|
6
51430-83300-000
Pipe, brake no.3
|
51430-83300-000 |
— | ||
|
7
|
7
51540-80151-000 HOSE,FR BRAKE FLEXIBLE |
51540-80151-000 |
US $13.83 |
||
|
8
|
8
09360-10026-000 Union bolt |
09360-10026-000 |
from US $1.85 |
||
|
9
|
9
09161-10009-000 WASHER(10X15X1.5)Lock washer |
09161-10009-000 |
from US $1.06 |
||
|
10
|
10
09140-16007-000 NUT |
09140-16007-000 |
US $1.92 |
||
|
11
|
11
51460-83500-000
Pipe, brake no.6
|
51460-83500-000 |
— | ||
|
12
|
12
51340-83500-000
Pipe, brake no.14
|
51340-83500-000 |
— | ||
|
13
|
13
51350-83100-000
Pipe, brake no. 15
86 MODEL |
51350-83100-000 |
— | ||
| replacement | |||||
|
13
|
13
51350-83101-000
Pipe, brake no. 15
86 MODEL |
51350-83101-000 |
— | ||
|
13
|
13
51350-83101-000
Pipe, brake no. 15
87 MODEL,88 MODEL |
51350-83101-000 |
— | ||
|
14
|
14
51360-83100-000
Pipe, brake no. 16
86 MODEL |
51360-83100-000 |
— | ||
|
14
|
14
51360-83101-000
Pipe, brake no. 16
87 MODEL,88 MODEL |
51360-83101-000 |
— | ||
|
15
|
15
51401-83000-000
RETAINER,BRAKE PIPE
|
51401-83000-000 |
— | ||
| replacement | |||||
|
15
|
15
51402-83000-000 CLAMP,BRAKE PIPE |
51402-83000-000 |
US $3.09 |
||
|
16
|
16
51402-83000-000 CLAMP,BRAKE PIPE |
51402-83000-000 |
US $3.09 |
||
|
17
|
17
09132-06006-000 SCREW(6X12) |
09132-06006-000 |
US $1.60 |
||
|
18
|
18
51560-83031-000 HOSE,RR BRAKE FLEXIBLE |
51560-83031-000 |
US $17.60 |
||
|
19
|
19
51470-83301-000
Pipe,brake,no.7
|
51470-83301-000 |
— | ||
|
20
|
20
51480-83301-000
Pipe, brake no.8
|
51480-83301-000 |
— | ||
|
21
|
21
51520-83100-000
Pipe, brake no. 12
|
51520-83100-000 |
— | ||
|
22
|
22
51755-67000-000
New Genuine Part
|
51755-67000-000 |
— | ||
| replacement | |||||
|
22
|
22
51755-77200-000 PROTECTOR,BRAKE PIPE |
51755-77200-000 |
US $4.56 |
||
|
23
|
23
09403-07312-000 CLAMP |
09403-07312-000 |
from US $0.92 |
||
|
24
|
24
01107-06123-000
Bolt 6x1x16
|
01107-06123-000 |
— | ||
| replacements | |||||
|
24
|
24
01500-0612A-000 BOLT |
01500-0612A-000 |
from US $0.76 |
||
|
24
|
24
01500-06123-000
Bolt, front
|
01500-06123-000 |
— | ||
|
25
|
25
08321-21063-000 Lock washer |
08321-21063-000 |
US $1.07 |
||
| replacement | |||||
|
25
|
25
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
26
|
26
09383-13001-000 E RING |
09383-13001-000 |
from US $1.60 |
||
| replacement | |||||
|
26
|
26
09383-13003-000 E-RING |
09383-13003-000 |
from US $1.60 |
||
|
27
|
27
51910-83110-000
VALVE ASSY,PROPORTIONING
|
51910-83110-000 |
— | ||
|
28
|
28
01517-06303-000
ボルト
|
01517-06303-000 |
— | ||
| replacement | |||||
|
28
|
28
01550-0630A-000 BOLT |
01550-0630A-000 |
from US $0.96 |
||
|
29
|
29
51950-83501-000
Plate, proportion valve
|
51950-83501-000 |
— | ||
|
30
|
30
01107-06103-000 Bolt 6x10 |
01107-06103-000 |
US $1.03 |
||
| replacement | |||||
|
30
|
30
01500-0610B-000 BOLTBolt |
01500-0610B-000 |
from US $0.80 |
||
|
31
|
31
08321-21063-000 Lock washer |
08321-21063-000 |
US $1.07 |
||
| replacement | |||||
|
31
|
31
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
32
|
32
08322-21063-000
Washer
|
08322-21063-000 |
— | ||
| replacement | |||||
|
32
|
32
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
33
|
33
51650-80030-000
Joint, brake 6 way
|
51650-80030-000 |
— | ||
|
34
|
34
01517-06253-000
ボルト
|
01517-06253-000 |
— | ||
| replacements | |||||
|
34
|
34
01550-0625A-000 BOLTBolt |
01550-0625A-000 |
from US $0.96 |
||
|
34
|
34
01550-0625B-000 BOLTBolt, head cover |
01550-0625B-000 |
from US $0.91 |
||
