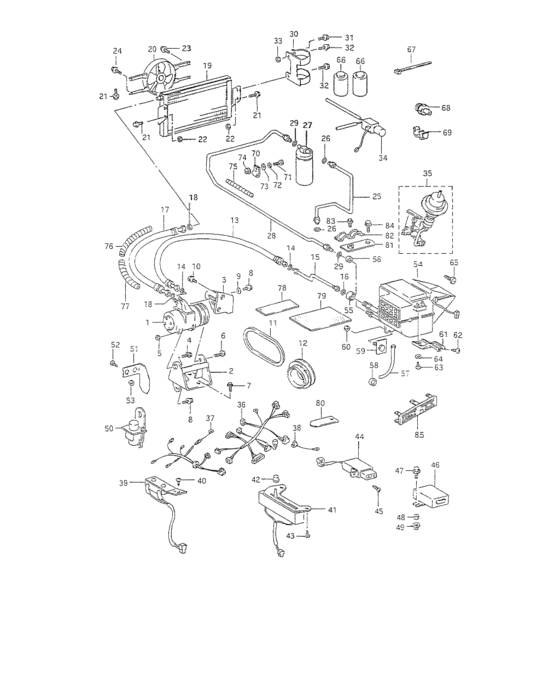

Car air con (CAR AIR CON) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
- grade
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
95000-83080-000
Car air con assy
|
95000-83080-000 |
— | ||
|
1
|
1
95200-83080-000
Compressor/magnet clutch assy
INNER PARTS FIG.100(L-6) |
95200-83080-000 |
— | ||
|
2
|
2
95111-82000-000
BRACKET,CPRSR
|
95111-82000-000 |
— | ||
|
3
|
3
95112-82000-000
STAY,COMPRESSOR ADJUSTING
|
95112-82000-000 |
— | ||
|
4
|
4
95911-82000-000
BOLT,CPRSR HOLD
|
95911-82000-000 |
— | ||
|
5
|
5
08316-26083-000
Nut
|
08316-26083-000 |
— | ||
| replacement | |||||
|
5
|
5
08316-2008A-000 NUT |
08316-2008A-000 |
from US $0.80 |
||
|
6
|
6
01517-08253-000
ボルト
|
01517-08253-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0825A-000 BOLT |
01550-0825A-000 |
from US $1.06 |
||
|
6
|
6
01550-0825B-000 BOLT |
01550-0825B-000 |
from US $0.96 |
||
|
7
|
7
01517-10203-000
ボルト
|
01517-10203-000 |
— | ||
| replacement | |||||
|
7
|
7
01550-1020A-000 BOLTBolt, bal sprocket |
01550-1020A-000 |
from US $0.96 |
||
|
8
|
8
01517-08203-000
ボルト
|
01517-08203-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0820A-000 BOLTBolt, funnel bracket |
01550-0820A-000 |
from US $0.96 |
||
|
8
|
8
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
9
|
9
95912-83080-000
WASHER
|
95912-83080-000 |
— | ||
|
10
|
10
01517-08163-000
Bolt 8 x 16
|
01517-08163-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0816B-000 BOLT |
01550-0816B-000 |
from US $0.91 |
||
|
10
|
10
01550-0816A-000 BOLTBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
11
|
11
95141-83000-000
V belt
|
95141-83000-000 |
— | ||
| replacement | |||||
|
11
|
11
95141-60D03-000 V-BELT,762 |
95141-60D03-000 |
US $17.60 |
||
|
12
|
12
12611-83000-000
Pulley,crankshaft
|
12611-83000-000 |
— | ||
|
13
|
13
95710-83021-000
Hose, cprsr suction
|
95710-83021-000 |
— | ||
| replacement | |||||
|
13
|
13
95710-70A50-000
Hose, compressor suction
|
95710-70A50-000 |
— | ||
|
14
|
14
95751-82000-000
O ring
|
95751-82000-000 |
— | ||
| replacements | |||||
|
14
|
14
95897-60E00-000 O-RING |
95897-60E00-000 |
US $30.50 |
||
|
14
|
14
09280-14012-000
Oリング,D:1.78,ID:14.0
|
09280-14012-000 |
— | ||
|
15
|
15
95731-83020-000
Pipe, suction
86 MODEL,87 MODEL |
95731-83020-000 |
— | ||
| replacement | |||||
|
15
|
15
95731-83021-000
Pipe, suction
86 MODEL,87 MODEL |
95731-83021-000 |
— | ||
|
15
|
15
95731-83021-000
Pipe, suction
88 MODEL |
95731-83021-000 |
— | ||
|
16
|
16
95751-82000-000
O ring
|
95751-82000-000 |
— | ||
| replacements | |||||
|
16
|
16
95897-60E00-000 O-RING |
95897-60E00-000 |
US $30.50 |
||
|
16
|
16
09280-14012-000
Oリング,D:1.78,ID:14.0
|
09280-14012-000 |
— | ||
|
17
|
17
95720-83020-000
Hose,cprsr delivery
|
95720-83020-000 |
— | ||
|
18
|
18
95752-82000-000
O ring
|
95752-82000-000 |
— | ||
| replacements | |||||
|
18
|
18
95894-60E00-000 O-RING |
95894-60E00-000 |
US $1.28 |
||
|
18
|
18
09280-11006-000
Oリング,D:1.78,ID:10.8
|
09280-11006-000 |
— | ||
|
19
|
19
95310-83020-000
Condenser
|
95310-83020-000 |
— | ||
| replacement | |||||
|
19
|
19
95310-83021-000
Condenser comp
|
95310-83021-000 |
— | ||
|
20
|
20
95520-83080-000
Shroud, fan
INNER PARTS FIG.102(L-8) |
95520-83080-000 |
— | ||
| replacement | |||||
|
20
|
20
95520-70A50-000
Shroud assy, fan
INNER PARTS FIG.102(L-8) |
95520-70A50-000 |
— | ||
|
21
|
21
01517-06163-000
Bolt
|
01517-06163-000 |
— | ||
| replacements | |||||
|
21
|
21
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
21
|
21
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
|
22
|
22
08316-16063-000 Nut |
08316-16063-000 |
US $2.91 |
||
| replacement | |||||
|
22
|
22
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
23
|
23
95917-83080-000
Bolt
|
95917-83080-000 |
— | ||
|
24
|
24
95328-82000-000
Bolt
|
95328-82000-000 |
— | ||
| replacements | |||||
|
24
|
24
01570-0635B-000 Bolt |
01570-0635B-000 |
from US $4.61 |
||
|
24
|
24
01137-06353-000
Bolt
|
01137-06353-000 |
— | ||
|
25
|
25
95751-83020-000
Pipe,receiver dryer out
|
95751-83020-000 |
— | ||
|
26
|
26
95753-82000-000
O ring
|
95753-82000-000 |
— | ||
| replacements | |||||
|
26
|
26
95891-60E00-000 O-RING |
95891-60E00-000 |
US $0.70 |
||
|
26
|
26
09280-07005-000
Oリング,D:1.42,ID:6.8
|
09280-07005-000 |
— | ||
|
27
|
27
95330-80020-000
Dryer, receiver
|
95330-80020-000 |
— | ||
| replacement | |||||
|
27
|
27
95330-800R0-000
TANK,RECEIVER
|
95330-800R0-000 |
— | ||
|
28
|
28
95741-83020-000
Pipe, receiver dryer outlet
|
95741-83020-000 |
— | ||
| replacement | |||||
|
28
|
28
95741-70A50-000
Pipe, receiver dryer out
|
95741-70A50-000 |
— | ||
|
29
|
29
95753-82000-000
O ring
|
95753-82000-000 |
— | ||
| replacements | |||||
|
29
|
29
95891-60E00-000 O-RING |
95891-60E00-000 |
US $0.70 |
||
|
29
|
29
09280-07005-000
Oリング,D:1.42,ID:6.8
|
09280-07005-000 |
— | ||
|
30
|
30
95931-80000-000
HOLDER,RECEIVER
|
95931-80000-000 |
— | ||
|
31
|
31
01517-06203-000
Bolt
|
01517-06203-000 |
— | ||
| replacements | |||||
|
31
|
31
01550-0620B-000 BOLTBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
31
|
31
01550-0620A-000 BOLT |
01550-0620A-000 |
from US $0.76 |
||
|
32
|
32
01517-06123-000
Bolt
|
01517-06123-000 |
— | ||
| replacements | |||||
|
32
|
32
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
32
|
32
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
33
|
33
08316-16063-000 Nut |
08316-16063-000 |
US $2.91 |
||
| replacement | |||||
|
33
|
33
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
34
|
34
95551-83080-000
Vsv, idle up
|
95551-83080-000 |
— | ||
|
35
|
35
95550-83050-000
Idle up assy
|
95550-83050-000 |
— | ||
|
36
|
36
95582-83080-000
Harness, wiring no.1
|
95582-83080-000 |
— | ||
|
37
|
37
95583-83080-000
Harness, wiring no.2
|
95583-83080-000 |
— | ||
| replacement | |||||
|
37
|
37
95583-70A50-000
Harness, wiring no.2
|
95583-70A50-000 |
— | ||
|
38
|
38
95584-83000-000
Harness,wiring meter
|
95584-83000-000 |
— | ||
|
39
|
39
95578-83020-000
Switch assy, micro
|
95578-83020-000 |
— | ||
|
40
|
40
95915-83000-000
Screw
|
95915-83000-000 |
— | ||
| replacement | |||||
|
40
|
40
03111-0412A-000 SCREW |
03111-0412A-000 |
from US $3.04 |
||
|
41
|
41
95591-83000-000
REGISTER ASSY,VARIABLE
|
95591-83000-000 |
— | ||
|
42
|
42
95592-83000-000
Bush, volume
|
95592-83000-000 |
— | ||
|
43
|
43
95915-83000-000
Screw
|
95915-83000-000 |
— | ||
| replacement | |||||
|
43
|
43
03111-0412A-000 SCREW |
03111-0412A-000 |
from US $3.04 |
||
|
44
|
44
95571-83000-000
SWITCH ASSY,CONTROL
|
95571-83000-000 |
— | ||
|
45
|
45
95915-83000-000
Screw
|
95915-83000-000 |
— | ||
| replacement | |||||
|
45
|
45
03111-0412A-000 SCREW |
03111-0412A-000 |
from US $3.04 |
||
|
46
|
46
95572-83000-000
Amplifier assy
|
95572-83000-000 |
— | ||
| replacement | |||||
|
46
|
46
95572-70A50-000
AMPLIFIER
|
95572-70A50-000 |
— | ||
|
47
|
47
01517-06164-000
Bolt, front fender side
|
01517-06164-000 |
— | ||
| replacements | |||||
|
47
|
47
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
47
|
47
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
|
48
|
48
08310-12066-000
Nut
|
08310-12066-000 |
— | ||
| replacements | |||||
|
48
|
48
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
48
|
48
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
49
|
49
08316-16066-000
Nut
|
08316-16066-000 |
— | ||
| replacement | |||||
|
49
|
49
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
50
|
50
38860-60A00-000
リレーアッシ
|
38860-60A00-000 |
— | ||
| replacement | |||||
|
50
|
50
95572-63C00-000 RELAY ASSY |
95572-63C00-000 |
US $42.69 |
||
|
51
|
51
95776-83020-000
Bracket
|
95776-83020-000 |
— | ||
|
52
|
52
02112-06126-000
Screw 6x12
|
02112-06126-000 |
— | ||
| replacements | |||||
|
52
|
52
02112-0612B-000 SCREWScrew, oil guide plate |
02112-0612B-000 |
from US $0.76 |
||
|
52
|
52
02112-0612A-000 SCREW |
02112-0612A-000 |
from US $0.76 |
||
|
53
|
53
08316-16063-000 Nut |
08316-16063-000 |
US $2.91 |
||
| replacement | |||||
|
53
|
53
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
54
|
54
95400-83020-000
EVAPORATOR
INNER PARTS FIG.101(L-7) |
95400-83020-000 |
— | ||
|
55
|
55
95763-83000-000
Grommet, suction
|
95763-83000-000 |
— | ||
| replacement | |||||
|
55
|
55
95761-73A00-000 GROMMET,CAR AIR CON,30 |
95761-73A00-000 |
from US $3.84 |
||
|
56
|
56
95762-83000-000
Grommet, liquid
|
95762-83000-000 |
— | ||
| replacement | |||||
|
56
|
56
74814-82000-000 GROMMET,CAR AIR CON,NO.2 |
74814-82000-000 |
US $6.08 |
||
|
57
|
57
95491-83020-000 HOSE,DRAIN |
95491-83020-000 |
US $11 |
||
|
58
|
58
95765-74000-000
Grommet, drain
|
95765-74000-000 |
— | ||
| replacement | |||||
|
58
|
58
74814-82000-000 GROMMET,CAR AIR CON,NO.2 |
74814-82000-000 |
US $6.08 |
||
|
59
|
59
95911-80000-000
Bolt, bracket
|
95911-80000-000 |
— | ||
| replacement | |||||
|
59
|
59
74180-80000-000 BRACKET |
74180-80000-000 |
US $4.05 |
||
|
60
|
60
08316-16086-000
Nut, reverse lever pivot
|
08316-16086-000 |
— | ||
| replacement | |||||
|
60
|
60
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
61
|
61
95961-83020-000
Bracket, evaporator
|
95961-83020-000 |
— | ||
|
62
|
62
03151-05166-000
New Genuine Part
|
03151-05166-000 |
— | ||
| replacement | |||||
|
62
|
62
03141-0516A-000 SCREW |
03141-0516A-000 |
from US $0.80 |
||
|
63
|
63
03211-06166-000
New Genuine Part
|
03211-06166-000 |
— | ||
| replacement | |||||
|
63
|
63
03211-0616A-000 SCREW |
03211-0616A-000 |
US $0.80 |
||
|
64
|
64
08322-21063-000
Washer
|
08322-21063-000 |
— | ||
| replacement | |||||
|
64
|
64
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
65
|
65
03511-05166-000
Screw
|
03511-05166-000 |
— | ||
| replacement | |||||
|
65
|
65
03511-0516A-000 SCREW |
03511-0516A-000 |
from US $0.76 |
||
|
66
|
66
95790-74000-000
Drum, refrigerant
|
95790-74000-000 |
— | ||
|
67
|
67
95779-80000-000
Clamp, wiring & vacuum
|
95779-80000-000 |
— | ||
| replacements | |||||
|
67
|
67
09407-25402-000 CLAMP(L:250)Clamp, tilt sw |
09407-25402-000 |
from US $2.24 |
||
|
67
|
67
09407-20405-000
Clamp
|
09407-20405-000 |
— | ||
|
68
|
68
95558-78100-000
Union, vacuum
|
95558-78100-000 |
— | ||
| replacement | |||||
|
68
|
68
95562-78540-000 UNION,VACUUM HOSE |
95562-78540-000 |
US $9.83 |
||
|
69
|
69
09408-00033-000 CLAMPClamp |
09408-00033-000 |
from US $1.60 |
||
|
70
|
70
95773-83000-000
Clamp, pipe
|
95773-83000-000 |
— | ||
|
71
|
71
01107-06303-000 ボルト |
01107-06303-000 |
US $1.23 |
||
| replacement | |||||
|
71
|
71
01500-0630A-000 Bolt |
01500-0630A-000 |
from US $0.80 |
||
|
72
|
72
08321-21063-000 Lock washer |
08321-21063-000 |
US $1.07 |
||
| replacement | |||||
|
72
|
72
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
73
|
73
08322-21063-000
Washer
|
08322-21063-000 |
— | ||
| replacement | |||||
|
73
|
73
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
74
|
74
08316-16063-000 Nut |
08316-16063-000 |
US $2.91 |
||
| replacement | |||||
|
74
|
74
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
75
|
75
95766-83000-000
Protector, brake hose
|
95766-83000-000 |
— | ||
| replacement | |||||
|
75
|
75
95766-70A00-000
INSULATOR,PIPING
|
95766-70A00-000 |
— | ||
|
76
|
76
95765-78120-000
Protector, distributor hose
|
95765-78120-000 |
— | ||
|
77
|
77
95765-83000-000 PROTECTOR,PIPE |
95765-83000-000 |
US $10.19 |
||
|
78
|
78
95622-80000-000
PACKING
|
95622-80000-000 |
— | ||
|
79
|
79
95765-84000-000
Back-packing
|
95765-84000-000 |
— | ||
| replacement | |||||
|
79
|
79
36930-82010-000 COVER,HARNESSCover, roof wire |
36930-82010-000 |
from US $1.73 |
||
|
80
|
80
95778-86000-000
Clamp, harness
|
95778-86000-000 |
— | ||
| replacements | |||||
|
80
|
80
09404-08420-000 CLAMP(L:120 T:1.0) |
09404-08420-000 |
from US $2.08 |
||
|
80
|
80
09404-08405-000
Clamp, drain tube
|
09404-08405-000 |
— | ||
|
81
|
81
95779-83020-000
Bracket
|
95779-83020-000 |
— | ||
|
82
|
82
95778-83020-000
Clamp, pipe
|
95778-83020-000 |
— | ||
| replacement | |||||
|
82
|
82
95773-82000-000
Clamp, pipe
|
95773-82000-000 |
— | ||
|
83
|
83
01517-06163-000
Bolt
|
01517-06163-000 |
— | ||
| replacements | |||||
|
83
|
83
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
83
|
83
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
|
84
|
84
95916-83080-000
Bolt
|
95916-83080-000 |
— | ||
|
85
|
85
73850-83070-281
Panel, heater control
|
73850-83070-281 |
— | ||
