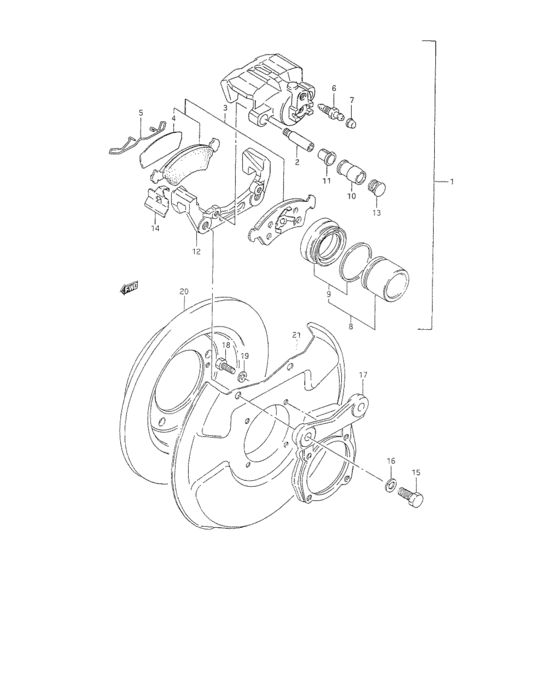

Front wheel brake (FRONT WHEEL BRAKE) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
- grade
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55100-83300-000
Caliper assy
|
55100-83300-000 |
— | ||
| replacement | |||||
|
1
|
1
55100-70A20-999
New Genuine Part
|
55100-70A20-999 |
— | ||
|
2
|
2
55191-84231-000
PIN,GUIDE
|
55191-84231-000 |
— | ||
|
3
|
3
55200-83822-000
Pad set, disc brake
|
55200-83822-000 |
— | ||
| replacement | |||||
|
3
|
3
55200-83831-000
PAD SET,DISC BRAKE
|
55200-83831-000 |
— | ||
|
4
|
4
55171-83300-000
Shim, anti noise
JS3JC51C H4144256~,JS4JC51C H4144256~,JS3JC51V H4123361~,JS4JC51V H4123361~ |
55171-83300-000 |
— | ||
|
5
|
5
55234-84230-000
CLIP,CALIPER ANTIRATTLE
|
55234-84230-000 |
— | ||
|
6
|
6
53473-82030-000
プラグ,ブリーダ
|
53473-82030-000 |
— | ||
| replacement | |||||
|
6
|
6
55151-78451-000 PLUG,BLEEDER |
55151-78451-000 |
from US $3.94 |
||
|
7
|
7
53474-82040-000
Cap, bleeder plug
|
53474-82040-000 |
— | ||
| replacements | |||||
|
7
|
7
55156-66310-000 CAP,BLEEDER PLUGCap, bleeder plug |
55156-66310-000 |
from US $1.98 |
||
|
7
|
7
59122-18410-000
Cap, bleeder plug
|
59122-18410-000 |
— | ||
|
8
|
8
55100-84811-000
PISTON / CUP SET
|
55100-84811-000 |
— | ||
|
9
|
9
55100-84820-000
SEAL SET,PISTON
|
55100-84820-000 |
— | ||
| replacement | |||||
|
9
|
9
55100-84821-000 New Genuine Part |
55100-84821-000 |
US $8.76 |
||
|
10
|
10
55201-83300-000 BOOT,GUIDE PIN |
55201-83300-000 |
US $4.53 |
||
|
11
|
11
55202-84230-000 SLEEVE,GUIDE PIN |
55202-84230-000 |
US $4.67 |
||
|
12
|
12
55160-83300-000
Carrier, disc brake
|
55160-83300-000 |
— | ||
|
13
|
13
55203-83300-000
CAP,GUIDE PIN
|
55203-83300-000 |
— | ||
|
14
|
14
55233-83300-000
PROTECTOR
|
55233-83300-000 |
— | ||
|
15
|
15
09100-12111-000 BOLT(12X33) |
09100-12111-000 |
from US $2.08 |
||
|
16
|
16
08321-31123-000
ロックワッシャ
|
08321-31123-000 |
— | ||
| replacement | |||||
|
16
|
16
08321-0112A-000 WASHER,LOCK |
08321-0112A-000 |
from US $0.76 |
||
|
17
|
17
55311-80000-000 HOLDER,BRAKE CALIPER |
55311-80000-000 |
US $74.40 |
||
|
18
|
18
09100-10023-000 BOLT(10X40.5) |
09100-10023-000 |
US $1.92 |
||
|
19
|
19
08321-31103-000
ロックワッシャ
|
08321-31103-000 |
— | ||
| replacements | |||||
|
19
|
19
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
19
|
19
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
20
|
20
55211-80000-000
ディスク,フロントブレーキ
|
55211-80000-000 |
— | ||
| replacement | |||||
|
20
|
20
55211-80020-000 DISC,FR BRAKE |
55211-80020-000 |
US $140.80 |
||
|
21
|
21
55221-80000-000 DUST COVER,BRAKE DISC |
55221-80000-000 |
US $84 |
||
