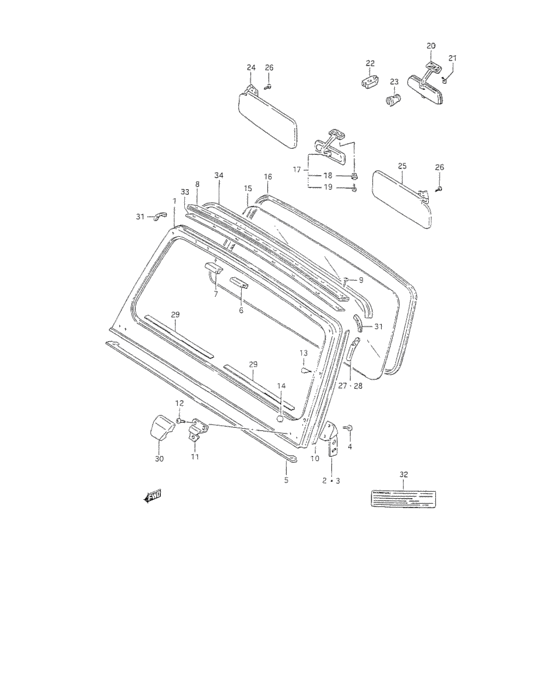

Front window (FRONT WINDOW) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
- grade
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
59101-83011-000
Panel assy, front window
<-59101-83010 |
59101-83011-000 |
— | ||
| replacement | |||||
|
1
|
1
59101-83012-000
PANEL ASSY,FRONT WINDOW
<-59101-83010 |
59101-83012-000 |
— | ||
|
2
|
2
72431-83000-000
Stopper, window rear rh
|
72431-83000-000 |
— | ||
|
3
|
3
72432-83000-000
Stopper,front window rr,l
|
72432-83000-000 |
— | ||
|
4
|
4
02142-06164-000
Screw
|
02142-06164-000 |
— | ||
| replacement | |||||
|
4
|
4
02142-0616A-000 SCREW |
02142-0616A-000 |
from US $0.76 |
||
|
5
|
5
72413-83000-000 WEATHERSTRIP,FR WDO UNDER<-72413-80004 |
72413-83000-000 |
US $77.60 |
||
|
6
|
6
72414-83000-000
CUSHION,FR WINDOW
|
72414-83000-000 |
— | ||
|
7
|
7
78142-80101-000 CUSHION,FR HOOD |
78142-80101-000 |
US $14.88 |
||
|
8
|
8
72418-80003-000 GARNISH,FR WINDOW,UPR |
72418-80003-000 |
US $26.60 |
||
|
9
|
9
03111-05203-000
New Genuine Part
|
03111-05203-000 |
— | ||
| replacement | |||||
|
9
|
9
03111-0520A-000 SCREW |
03111-0520A-000 |
US $0.80 |
||
|
10
|
10
84644-80001-000 SEAL,WINDOW SIDE |
84644-80001-000 |
US $2.24 |
||
|
11
|
11
72421-83000-000
BRACKET,FR WINDOW
|
72421-83000-000 |
— | ||
|
12
|
12
09125-06068-000
スクリュ,6X16
|
09125-06068-000 |
— | ||
| replacement | |||||
|
12
|
12
09125-06068-XC0 SCREW(6X16) |
09125-06068-XC0 |
US $1.52 |
||
|
13
|
13
09250-02001-000
CAP(OD:6)
N/CAR RADIO |
09250-02001-000 |
— | ||
| replacement | |||||
|
13
|
13
09250-02002-000 Cap(Od:6)N/CAR RADIO |
09250-02002-000 |
US $1.92 |
||
|
14
|
14
09250-14003-000 CAP(OD:18)N/CAR RADIO |
09250-14003-000 |
US $2.08 |
||
|
15
|
15
84511-80122-000
Glass, windshield
|
84511-80122-000 |
— | ||
| replacement | |||||
|
15
|
15
84511-82C00-000
GLASS,WINDSHIELD
|
84511-82C00-000 |
— | ||
|
16
|
16
79711-73161-000
WEATHERSTRIP,WINDSHIELD
|
79711-73161-000 |
— | ||
|
17
|
17
86103-73010-000
Mirror assy, inside
JA |
86103-73010-000 |
— | ||
| replacement | |||||
|
17
|
17
86103-73030-000
MIRROR ASSY,INS RR VIEW
JA |
86103-73030-000 |
— | ||
|
18
|
18
86124-63010-000
ワッシャ,インサイドミラー
JA |
86124-63010-000 |
— | ||
| replacement | |||||
|
18
|
18
86124-63011-000 WASHER,ROOM MIRRORJA |
86124-63011-000 |
US $2.13 |
||
|
19
|
19
02112-05125-000
Screw, cap
JA |
02112-05125-000 |
— | ||
| replacement | |||||
|
19
|
19
02112-0512A-000 SCREWJA |
02112-0512A-000 |
from US $0.80 |
||
|
20
|
20
84703-80000-000
ミラーアッシ,インサイドリヤビュー
JX |
84703-80000-000 |
— | ||
| replacement | |||||
|
20
|
20
84703-80000-5PK MIRROR ASSY,INS RR VIEWJX |
84703-80000-5PK |
US $241.60 |
||
|
21
|
21
02142-05128-000
Screw
JX |
02142-05128-000 |
— | ||
| replacement | |||||
|
21
|
21
02142-05127-000 SCREWJX |
02142-05127-000 |
from US $0.80 |
||
|
22
|
22
86169-79000-000
SUPPORT,INSIDE MIRROR STAY
JX |
86169-79000-000 |
— | ||
|
23
|
23
84781-80000-000 SUPPORT,INSIDE REAR VIEWJX |
84781-80000-000 |
US $8 |
||
|
24
|
24
84800-80830-46Z
Sunvisor set, rh
JA, BLACK 1986 |
84800-80830-46Z |
— | ||
| replacement | |||||
|
24
|
24
84800-80832-46Z
SUNVISOR SET,R
JA, BLACK 1986 |
84800-80832-46Z |
— | ||
|
24
|
24
84800-80830-4KJ
Sunvisor set, rh
JA, GRAYISH BEIGE 1986 |
84800-80830-4KJ |
— | ||
| replacement | |||||
|
24
|
24
84800-80832-4KJ
SUNVISOR SET,R
JA, GRAYISH BEIGE 1986 |
84800-80832-4KJ |
— | ||
|
24
|
24
84800-83860-46Z
Sunvisor set, rh
JX, BLACK 1987 W/MIRROR |
84800-83860-46Z |
— | ||
| replacement | |||||
|
24
|
24
84800-83862-46Z
SUNVISOR SET,R
JX, BLACK 1987 W/MIRROR |
84800-83862-46Z |
— | ||
|
24
|
24
84800-83860-4KJ
Sunvisor set, rh
JX, GRAYISH BEIGE 1987 W/MIRROR |
84800-83860-4KJ |
— | ||
| replacement | |||||
|
24
|
24
84800-83862-4KJ SUNVISOR SET,RJX, GRAYISH BEIGE 1987 W/MIRROR |
84800-83862-4KJ |
US $59.62 |
||
|
25
|
25
84800-80840-46Z
サンバイザセット,レフト(ブラック)
BLACK |
84800-80840-46Z |
— | ||
| replacement | |||||
|
25
|
25
84800-80842-46Z SUNVISOR SET,LBLACK |
84800-80842-46Z |
US $68 |
||
|
25
|
25
84800-80840-4KJ
サンバイザアッシ,レフト(グレー)
GRAYISH BEIGE |
84800-80840-4KJ |
— | ||
| replacement | |||||
|
25
|
25
84800-80842-4KJ SUNVISOR SET,LGRAYISH BEIGE |
84800-80842-4KJ |
US $33.67 |
||
|
26
|
26
02132-05105-000
Screw
|
02132-05105-000 |
— | ||
| replacement | |||||
|
26
|
26
02122-0510A-000 SCREW |
02122-0510A-000 |
US $0.80 |
||
|
27
|
27
84648-80011-000 GARNISH,FR WINDOW SIDE,R |
84648-80011-000 |
US $2.24 |
||
|
28
|
28
84649-80011-000 GARNISH,FR WINDOW SIDE,L |
84649-80011-000 |
US $2.24 |
||
|
29
|
29
72416-83000-000 SHEET,FRONT WINDOW REAR LOWER |
72416-83000-000 |
US $11.36 |
||
|
30
|
30
72422-83001-000
COVER,FR WINDOW BRACKET
|
72422-83001-000 |
— | ||
|
31
|
31
77314-83000-000
PAD,FR WINDOW UPPER
|
77314-83000-000 |
— | ||
|
32
|
32
79114-83040-000
Label, fr window caution
|
79114-83040-000 |
— | ||
| replacement | |||||
|
32
|
32
79114-83041-000
Label, fr window warning
|
79114-83041-000 |
— | ||
|
33
|
33
72419-83010-000 PAD,FR WINDOW GARNISH |
72419-83010-000 |
US $12.01 |
||
|
34
|
34
72462-83001-000 WEATHERSTRIP,FR WDO UPR |
72462-83001-000 |
US $74.40 |
||
