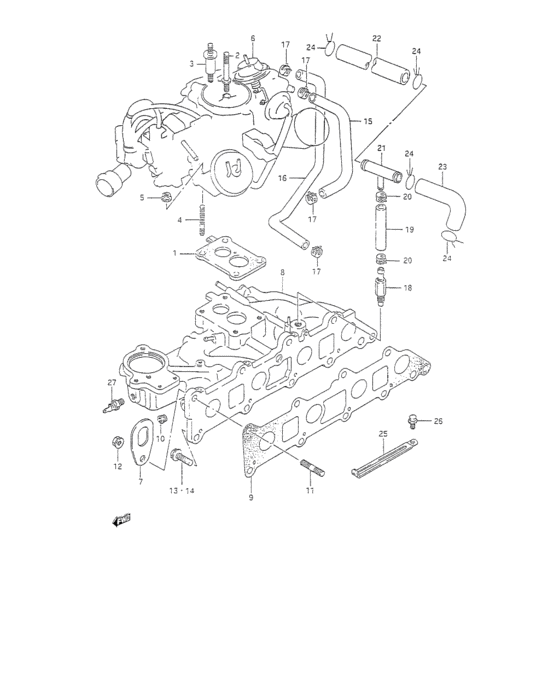

Intake manifold (INTAKE MANIFOLD) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
- grade
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13121-83000-000
Insulator, carburetor
|
13121-83000-000 |
— | ||
| replacement | |||||
|
1
|
1
13121-81X50-000
INSULATOR,CARBURETOR
|
13121-81X50-000 |
— | ||
|
2
|
2
09108-06071-000
Stud bolt, intake case
|
09108-06071-000 |
— | ||
|
3
|
3
13839-83010-000
BOLT,INTAKE CASE STUD
JS3JC51C H4164092~,JS4JC51C H4164091~,JS3JC51V H4127838~,JS4JC51V H4127835~ |
13839-83010-000 |
— | ||
|
4
|
4
01421-08306-000
Stud bolt, carburetor
|
01421-08306-000 |
— | ||
| replacement | |||||
|
4
|
4
01421-0830A-000 BOLT,STUD |
01421-0830A-000 |
from US $1.44 |
||
|
5
|
5
08316-16086-000
Nut, reverse lever pivot
|
08316-16086-000 |
— | ||
| replacement | |||||
|
5
|
5
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
6
|
6
95550-83050-000
Idle up assy
W/AIR CON |
95550-83050-000 |
— | ||
|
7
|
7
11851-73001-000
フック,エンジン
<-11851-73000 |
11851-73001-000 |
— | ||
| replacement | |||||
|
7
|
7
11851-62B00-000 HOOK<-11851-73000 |
11851-62B00-000 |
US $5.02 |
||
|
8
|
8
13110-83102-000
Manifold, intake
86 MODEL,87 MODEL,<-13110-83101 |
13110-83102-000 |
— | ||
| replacement | |||||
|
8
|
8
13110-83X52-000
New Genuine Part
86 MODEL,87 MODEL,<-13110-83101 |
13110-83X52-000 |
— | ||
|
8
|
8
13110-83110-000
Manifold, intake
88 MODEL |
13110-83110-000 |
— | ||
| replacement | |||||
|
8
|
8
13110-83X52-000
New Genuine Part
88 MODEL |
13110-83X52-000 |
— | ||
|
9
|
9
13119-82601-000
Joint collecteur
|
13119-82601-000 |
— | ||
| replacement | |||||
|
9
|
9
13119-63B11-000 GASKET,INTK MANF |
13119-63B11-000 |
US $48 |
||
|
10
|
10
09246-04002-000
プラグ
|
09246-04002-000 |
— | ||
| replacement | |||||
|
10
|
10
09246-04005-000 PLUGPlug, cylinder head cover |
09246-04005-000 |
from US $2.72 |
||
|
11
|
11
01421-08253-000
Stud bolt, no.2
|
01421-08253-000 |
— | ||
| replacement | |||||
|
11
|
11
01421-0825A-000 BOLT,STUD |
01421-0825A-000 |
from US $1.12 |
||
|
12
|
12
08316-16083-000 NutNut |
08316-16083-000 |
US $3.06 |
||
| replacement | |||||
|
12
|
12
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
13
|
13
01517-08253-000
ボルト
|
01517-08253-000 |
— | ||
| replacements | |||||
|
13
|
13
01550-0825A-000 BOLT |
01550-0825A-000 |
from US $1.06 |
||
|
13
|
13
01550-0825B-000 BOLT |
01550-0825B-000 |
from US $0.96 |
||
|
14
|
14
01517-08256-000
Bolt
|
01517-08256-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0825B-000 BOLT |
01550-0825B-000 |
from US $0.96 |
||
|
14
|
14
01550-0825A-000 BOLT |
01550-0825A-000 |
from US $1.06 |
||
|
15
|
15
13191-83011-000
Hose, choke inlet
|
13191-83011-000 |
— | ||
| replacement | |||||
|
15
|
15
09352-70131-600
HOSE(7X13X600)
|
09352-70131-600 |
— | ||
|
16
|
16
13192-83011-000 HOSE,CARB CHOKE OUTLET |
13192-83011-000 |
US $28.80 |
||
|
17
|
17
09401-12404-000 CLIPClip |
09401-12404-000 |
from US $1.52 |
||
|
18
|
18
18118-80010-000 VALVE,PCV |
18118-80010-000 |
US $38.40 |
||
|
19
|
19
09354-70153-300
ホース,ID:7 OD:15
L:300->130 |
09354-70153-300 |
— | ||
| replacement | |||||
|
19
|
19
09354-70153-600 HOSE(7X15X600)L:300->130 |
09354-70153-600 |
US $16.80 |
||
|
20
|
20
09401-13406-000
Clamp
|
09401-13406-000 |
— | ||
| replacement | |||||
|
20
|
20
09401-13404-000
CLIP
|
09401-13404-000 |
— | ||
|
21
|
21
09367-14003-000
Reccord 3 voices
<-09367-14002 |
09367-14003-000 |
— | ||
| replacement | |||||
|
21
|
21
09367-14002-000 JOINT<-09367-14002 |
09367-14002-000 |
US $58.90 |
||
|
22
|
22
11191-79200-000 HOSE,BREATHERL:625->420 |
11191-79200-000 |
US $35.20 |
||
|
23
|
23
11192-83000-000
Hose, breather
|
11192-83000-000 |
— | ||
| replacement | |||||
|
23
|
23
11191-71C01-000 HOSE,BREATHER NO.1 |
11191-71C01-000 |
US $34.40 |
||
|
24
|
24
09401-18304-000
Clip
|
09401-18304-000 |
— | ||
| replacement | |||||
|
24
|
24
09401-18304-A05 CLIP |
09401-18304-A05 |
from US $2.13 |
||
|
25
|
25
09404-06404-000
Clamp, fuel hose
|
09404-06404-000 |
— | ||
| replacements | |||||
|
25
|
25
09404-06434-000
CLAMP(L:80 T:1.0)
|
09404-06434-000 |
— | ||
|
25
|
25
09404-06433-000
CLAMP(L:80)
|
09404-06433-000 |
— | ||
|
25
|
25
09404-06436-000 Clamp(L:80) |
09404-06436-000 |
from US $2.13 |
||
|
25
|
25
09404-06036-000 Clamp(L:80) |
09404-06036-000 |
from US $1.82 |
||
|
26
|
26
01517-06103-000
ボルト
|
01517-06103-000 |
— | ||
| replacements | |||||
|
26
|
26
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
26
|
26
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
27
|
27
34850-82001-000
Gauge assy, water temperature
<-34850-82000 |
34850-82001-000 |
— | ||
| replacement | |||||
|
27
|
27
34850-50A00-000 GAUGE ASSY,WATER TEMPGauge assy, water temperature <-34850-82000 |
34850-50A00-000 |
from US $40.80 |
||
