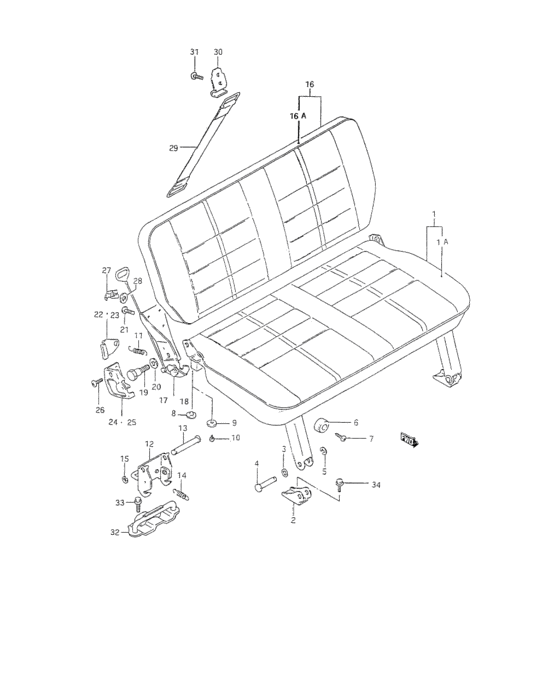

Rear seat see note (JA) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
- grade
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
87101-80612-8FC
Cushion assy, seat
86 MODEL |
87101-80612-8FC |
— | ||
|
1
|
1
87101-80612-9DA
Cushion assy, seat
87 MODEL |
87101-80612-9DA |
— | ||
|
1
|
1
87101-80612-9WH
Cushion assy, seat
88 MODEL |
87101-80612-9WH |
— | ||
|
1
|
1
87101-80692-8FD
Cushion assy, seat
86 MODEL,<-87101-80691 |
87101-80692-8FD |
— | ||
|
1
|
1
87101-80692-9DC
Cushion assy, seat
87 MODEL |
87101-80692-9DC |
— | ||
|
1
|
1
87101-80692-9WH
Cushion assy, seat
88 MODEL |
87101-80692-9WH |
— | ||
|
1A
|
1A
87180-80611-8FC
Cover, cushion
86 MODEL |
87180-80611-8FC |
— | ||
|
1A
|
1A
87180-80611-9DA
Cover, cushion
87 MODEL |
87180-80611-9DA |
— | ||
|
1A
|
1A
87180-80611-9WH
Cover, cushion
88 MODEL |
87180-80611-9WH |
— | ||
| replacement | |||||
|
1A
|
1A
87180-80612-9WH
New Genuine Part
88 MODEL |
87180-80612-9WH |
— | ||
|
1A
|
1A
87180-80691-8FD
Cover, cushion
86 MODEL |
87180-80691-8FD |
— | ||
|
1A
|
1A
87180-80691-9DC
Cover, cushion
87 MODEL |
87180-80691-9DC |
— | ||
|
1A
|
1A
87180-80691-9WH
Cover, cushion
88 MODEL |
87180-80691-9WH |
— | ||
| replacement | |||||
|
1A
|
1A
87180-80612-9WH
New Genuine Part
88 MODEL |
87180-80612-9WH |
— | ||
|
2
|
2
87271-80280-000
MALE,RR SEAT HNG
|
87271-80280-000 |
— | ||
|
3
|
3
09164-07001-000 WASHER |
09164-07001-000 |
US $1.60 |
||
|
4
|
4
09208-06001-000
ピン
|
09208-06001-000 |
— | ||
| replacements | |||||
|
4
|
4
87259-56B10-000 PIN,REAR SEAT HINGE |
87259-56B10-000 |
US $1.76 |
||
|
4
|
4
09148-06008-000 NUTNut, adjuster knob |
09148-06008-000 |
from US $0.83 |
||
|
4
|
4
87259-83000-000
ピン,リヤシートヒンジ
|
87259-83000-000 |
— | ||
|
4
|
4
09148-06005-000
Nut seat moldin
|
09148-06005-000 |
— | ||
|
5
|
5
08332-11046-000
E ring
|
08332-11046-000 |
— | ||
| replacements | |||||
|
5
|
5
08332-1104B-000 E RING |
08332-1104B-000 |
from US $0.80 |
||
|
5
|
5
08332-1104A-000 E RING |
08332-1104A-000 |
from US $0.76 |
||
|
6
|
6
09320-06014-000 CUSHION |
09320-06014-000 |
US $27.20 |
||
|
7
|
7
03142-05209-000
Screw
|
03142-05209-000 |
— | ||
| replacement | |||||
|
7
|
7
03142-0520B-000 SCREW |
03142-0520B-000 |
from US $0.80 |
||
|
8
|
8
87295-80200-000 CUSHION,REAR SEAT REAR LEG86 MODEL |
87295-80200-000 |
from US $1.47 |
||
|
9
|
9
09320-06015-000 CUSHION87 MODEL,88 MODEL |
09320-06015-000 |
US $1.67 |
||
|
10
|
10
03242-05129-000
Screw
87 MODEL,88 MODEL |
03242-05129-000 |
— | ||
| replacement | |||||
|
10
|
10
03241-0512A-000 SCREW87 MODEL,88 MODEL |
03241-0512A-000 |
from US $0.68 |
||
|
11
|
11
09443-14015-000 SPRING |
09443-14015-000 |
from US $4.57 |
||
|
12
|
12
87250-80270-000
Stopper,seat belt
|
87250-80270-000 |
— | ||
|
13
|
13
84366-79450-000 PIN,SEAT BELT ANCHOR STOPPER |
84366-79450-000 |
US $4.53 |
||
|
14
|
14
09443-14015-000 SPRING |
09443-14015-000 |
from US $4.57 |
||
|
15
|
15
08332-11086-000
E ring
|
08332-11086-000 |
— | ||
| replacement | |||||
|
15
|
15
08332-1108A-000 E RING |
08332-1108A-000 |
from US $0.96 |
||
|
16A
|
16A
87380-80590-8FC
Cover, back
86 MODEL |
87380-80590-8FC |
— | ||
|
16A
|
16A
87380-80590-9DA
New Genuine Part
87 MODEL |
87380-80590-9DA |
— | ||
|
16A
|
16A
87380-80590-9WH
Cover, back
88 MODEL |
87380-80590-9WH |
— | ||
|
16A
|
16A
87380-80670-8FD
Cover, back
86 MODEL |
87380-80670-8FD |
— | ||
|
16A
|
16A
87380-80670-9DC
Cover, back
87 MODEL |
87380-80670-9DC |
— | ||
|
16A
|
16A
87380-80670-9WH
Cover, back
88 MODEL |
87380-80670-9WH |
— | ||
|
16
|
16
87301-80611-8FC
Back assy, seat
86 MODEL |
87301-80611-8FC |
— | ||
|
16
|
16
87301-80611-9DA
Back assy, seat
87 MODEL |
87301-80611-9DA |
— | ||
|
16
|
16
87301-80611-9WH
Back assy, seat
88 MODEL |
87301-80611-9WH |
— | ||
|
16
|
16
87301-80691-8FD
Back assy, seat
86 MODEL |
87301-80691-8FD |
— | ||
|
16
|
16
87301-80691-9DC
Back assy, seat
87 MODEL |
87301-80691-9DC |
— | ||
|
16
|
16
87301-80691-9WH
Back assy, seat
88 MODEL |
87301-80691-9WH |
— | ||
|
17
|
17
87210-80281-000
Lock, hinge rh
|
87210-80281-000 |
— | ||
|
18
|
18
87610-80281-000
Lock, hinge lh
|
87610-80281-000 |
— | ||
|
19
|
19
09111-08044-000 BOLT(8X16) |
09111-08044-000 |
US $14.40 |
||
|
20
|
20
08321-21107-000 Lock washer |
08321-21107-000 |
US $2.54 |
||
| replacement | |||||
|
20
|
20
08321-01107-000 WASHER,LOCKLock washer |
08321-01107-000 |
from US $0.76 |
||
|
21
|
21
02142-06207-000 SCREW |
02142-06207-000 |
from US $0.80 |
||
|
22
|
22
87221-80200-000
PROTECTOR,HINGE,R
|
87221-80200-000 |
— | ||
|
23
|
23
87621-80200-000
PROTECTOR,HINGE,L
|
87621-80200-000 |
— | ||
|
24
|
24
87229-80200-000 COVER,RR SEAT BACK HINGE,R |
87229-80200-000 |
US $7.36 |
||
|
25
|
25
87629-80200-000 COVER,RR SEAT BACK HINGE,L |
87629-80200-000 |
US $7.99 |
||
|
26
|
26
03241-05085-000
New Genuine Part
|
03241-05085-000 |
— | ||
| replacement | |||||
|
26
|
26
03241-0508A-000 SCREW |
03241-0508A-000 |
US $0.80 |
||
|
27
|
27
09403-06403-000 CLAMP |
09403-06403-000 |
US $1.60 |
||
|
28
|
28
87328-83000-000 WASHER,HINGE LOCK HANDLE CLAMP |
87328-83000-000 |
US $1.60 |
||
|
29
|
29
87291-80230-000
BAND,RR SEAT STOPPER
|
87291-80230-000 |
— | ||
|
30
|
30
87292-80230-000 HOLDER,RR SEAT STOPPER BAND |
87292-80230-000 |
US $2.56 |
||
|
31
|
31
02142-05087-000 SCREW |
02142-05087-000 |
from US $0.80 |
||
|
32
|
32
87830-80270-000
STRIKER,SEAT BELT STOPPER
|
87830-80270-000 |
— | ||
|
33
|
33
01517-10256-000
Boulon
|
01517-10256-000 |
— | ||
| replacements | |||||
|
33
|
33
01550-1025B-000 BoltBolt, rr swgarm bracket, l |
01550-1025B-000 |
from US $5.59 |
||
|
33
|
33
01550-1025A-000 BOLTBolt, drive gear |
01550-1025A-000 |
from US $1.06 |
||
|
34
|
34
01517-08166-000
Bolt 8x16
|
01517-08166-000 |
— | ||
| replacement | |||||
|
34
|
34
01550-0816B-000 BOLT |
01550-0816B-000 |
from US $0.91 |
||
