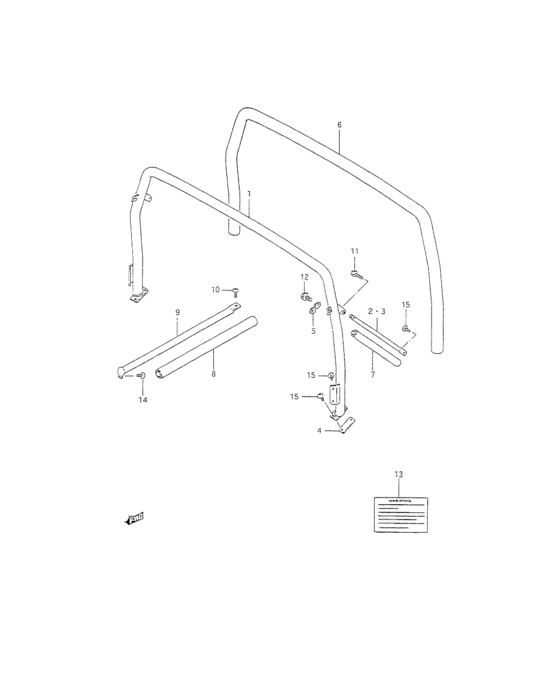

Roll bar (Q) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
- grade
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
78600-83003-000
Pipe, roll bar center
<-78600-83002 |
78600-83003-000 |
— | ||
| replacement | |||||
|
1
|
1
78600-83004-000
Pipe, roll bar center
<-78600-83002 |
78600-83004-000 |
— | ||
|
2
|
2
78612-83001-000
Support, roll bar rr rh
<-78612-83000 |
78612-83001-000 |
— | ||
| replacement | |||||
|
2
|
2
78612-83002-000
Support,roll bar rear,r
<-78612-83000 |
78612-83002-000 |
— | ||
|
3
|
3
78613-83001-000
Support, roll bar rr lh
<-78613-83000 |
78613-83001-000 |
— | ||
| replacement | |||||
|
3
|
3
78612-83002-000
Support,roll bar rear,r
<-78613-83000 |
78612-83002-000 |
— | ||
|
4
|
4
78636-80091-000
Reinf, extension
|
78636-80091-000 |
— | ||
|
5
|
5
78637-83000-000
STAY,EXT JOINT
|
78637-83000-000 |
— | ||
|
6
|
6
78638-83001-000
PAD,ROLL BAR CENTER NO.1
|
78638-83001-000 |
— | ||
|
7
|
7
78639-83001-000
Pad, center no.2
FASTENER TYPE |
78639-83001-000 |
— | ||
|
7
|
7
78639-83002-000
PAD,ROLL BAR CENTER NO.2
SEWING TYPE |
78639-83002-000 |
— | ||
|
8
|
8
78641-83000-000
Pad, front
|
78641-83000-000 |
— | ||
|
9
|
9
78671-83001-000
Pipe, extension
<-78670-83000 |
78671-83001-000 |
— | ||
|
10
|
10
09125-08011-000
スクリュ
|
09125-08011-000 |
— | ||
| replacement | |||||
|
10
|
10
09125-08015-XC0 SCREW(8X20) |
09125-08015-XC0 |
US $1.60 |
||
|
11
|
11
01204-08354-000
Bolt 8 x 35
86 MODEL |
01204-08354-000 |
— | ||
| replacement | |||||
|
11
|
11
01204-08357-000 BOLT86 MODEL |
01204-08357-000 |
from US $1.06 |
||
|
11
|
11
09125-08012-000
スクリュ,8X35
87 MODEL,88 MODEL |
09125-08012-000 |
— | ||
| replacement | |||||
|
11
|
11
09125-08012-XC0
SCREW(5X35)
87 MODEL,88 MODEL |
09125-08012-XC0 |
— | ||
|
12
|
12
01517-10165-000
Plug,adjuster hole
|
01517-10165-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-1016B-000 BoltPlug, oil gallery |
01550-1016B-000 |
from US $0.96 |
||
|
12
|
12
01550-1016A-000 BoltPlug, oil gallery |
01550-1016A-000 |
from US $4.96 |
||
|
13
|
13
79114-83031-000
Label, roll bar caution
|
79114-83031-000 |
— | ||
| replacement | |||||
|
13
|
13
79114-83032-000
LABEL,ROLL BAR WARNING
|
79114-83032-000 |
— | ||
|
14
|
14
02142-06164-000
Screw
|
02142-06164-000 |
— | ||
| replacement | |||||
|
14
|
14
02142-0616A-000 SCREW |
02142-0616A-000 |
from US $0.76 |
||
|
15
|
15
09125-08011-000
スクリュ
|
09125-08011-000 |
— | ||
| replacement | |||||
|
15
|
15
09125-08015-XC0 SCREW(8X20) |
09125-08015-XC0 |
US $1.60 |
||
