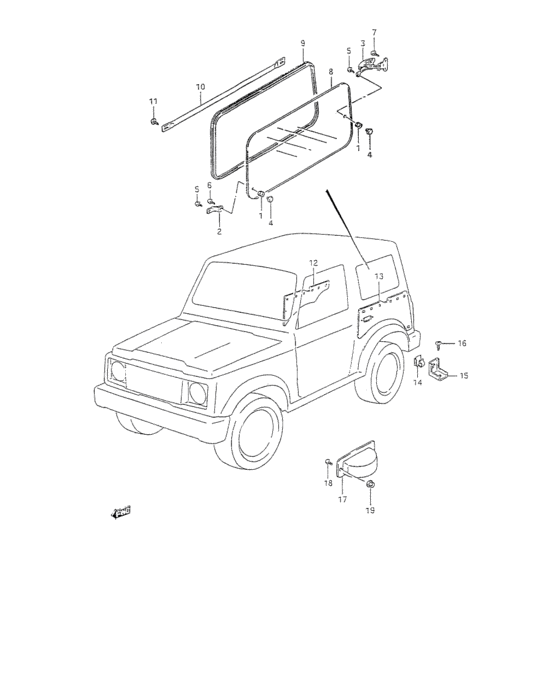

Side window (SIDE WINDOW) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
- grade
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
69275-78200-000 PAD,QUARTER WINDOW |
69275-78200-000 |
US $1.44 |
||
|
2
|
2
81411-80100-000
ヒンジ,クォータウィンドガラス
|
81411-80100-000 |
— | ||
| replacement | |||||
|
2
|
2
81411-80101-000 HINGE,QTR WINDOW GLASS |
81411-80101-000 |
US $21.60 |
||
|
3
|
3
81430-80102-000 LOCK,QTR WINDOW GLASS |
81430-80102-000 |
US $60 |
||
|
4
|
4
81451-80102-000 COVER,QUARTER WINDOW GLASS<-81451-80101 |
81451-80102-000 |
US $2.24 |
||
|
5
|
5
02142-05085-000
Screw
|
02142-05085-000 |
— | ||
| replacement | |||||
|
5
|
5
02142-0508A-000 SCREWScrew, cap |
02142-0508A-000 |
from US $0.76 |
||
|
6
|
6
02142-05065-000
New Genuine Part
|
02142-05065-000 |
— | ||
| replacement | |||||
|
6
|
6
09125-05117-000 SCREW(5X6)Screw (5x6) |
09125-05117-000 |
from US $0.96 |
||
|
7
|
7
02142-05167-000 SCREWScrew, air intk guide no.2 |
02142-05167-000 |
from US $0.76 |
||
|
8
|
8
84561-80102-000
ガラス,クォータウィンド(ブルー)
|
84561-80102-000 |
— | ||
| replacement | |||||
|
8
|
8
84561-82C00-000
GLASS,QTR WINDOW
|
84561-82C00-000 |
— | ||
|
9
|
9
84621-80101-000 WEATHERSTRIP,QTR WDO |
84621-80101-000 |
US $87.20 |
||
|
10
|
10
81111-83001-000
BAR,SIDE WINDOW GUARD
|
81111-83001-000 |
— | ||
|
11
|
11
09125-08011-000
スクリュ
|
09125-08011-000 |
— | ||
| replacement | |||||
|
11
|
11
09125-08015-XC0 SCREW(8X20) |
09125-08015-XC0 |
US $1.60 |
||
|
12
|
12
76110-83000-4JS
Trim, side body inner rh
|
76110-83000-4JS |
— | ||
| replacement | |||||
|
12
|
12
76110-83000-5GT
TRIM,SIDE BODY INNER,R
|
76110-83000-5GT |
— | ||
|
12
|
12
76110-80100-4JS
Trim, side body inner rh
JA |
76110-80100-4JS |
— | ||
| replacement | |||||
|
12
|
12
76110-80100-5GT TRIM,SIDE BODY INNER,RJA |
76110-80100-5GT |
US $49.31 |
||
|
12
|
12
76110-83100-8FR
Trim, side body inner rh
86 MODEL:JX |
76110-83100-8FR |
— | ||
|
12
|
12
76110-83100-9EU
Trim, side body inner rh
87 MODEL:JX |
76110-83100-9EU |
— | ||
|
12
|
12
76110-83100-2CR
Trim, side body inner rh
88 MODEL:JX |
76110-83100-2CR |
— | ||
|
13
|
13
76120-83030-4JS
Trim, side body inner lh
|
76120-83030-4JS |
— | ||
| replacement | |||||
|
13
|
13
76120-50C10-5GT
TRIM,SIDE BODY INNER,L
|
76120-50C10-5GT |
— | ||
|
13
|
13
76120-80100-4JS
Trim, side body inner lh
JA |
76120-80100-4JS |
— | ||
| replacement | |||||
|
13
|
13
76120-80100-5GT TRIM,SIDE BODY INNER,LJA |
76120-80100-5GT |
US $44.53 |
||
|
13
|
13
76120-83110-8FR
Trim, side body inner lh
86 MODEL:JX |
76120-83110-8FR |
— | ||
| replacement | |||||
|
13
|
13
76120-83100-8FR
New Genuine Part
86 MODEL:JX |
76120-83100-8FR |
— | ||
|
13
|
13
76120-83100-9EU
Trim, side body inner lh
87 MODEL:JX(2 PASSENGER) |
76120-83100-9EU |
— | ||
|
13
|
13
76120-83100-2CR
Trim, side body inner lh
88 MODEL:JX(2 PASSENGER) |
76120-83100-2CR |
— | ||
|
13
|
13
76120-83110-9EU
Trim, side body inner lh
87 MODEL:JX(4 PASSENGER) |
76120-83110-9EU |
— | ||
| replacement | |||||
|
13
|
13
76120-83100-9EU
Trim, side body inner lh
87 MODEL:JX(4 PASSENGER) |
76120-83100-9EU |
— | ||
|
13
|
13
76120-83110-2CR
Trim, side body inner lh
88 MODEL:JX(4 PASSENGER) |
76120-83110-2CR |
— | ||
| replacement | |||||
|
13
|
13
76120-83100-2CR
Trim, side body inner lh
88 MODEL:JX(4 PASSENGER) |
76120-83100-2CR |
— | ||
|
14
|
14
09409-08303-281
クリップ(ブラック)
|
09409-08303-281 |
— | ||
| replacement | |||||
|
14
|
14
09409-08303-000 CLIP |
09409-08303-000 |
US $1.82 |
||
|
15
|
15
76131-83000-000
STAY,SIDE BODY TRIM
|
76131-83000-000 |
— | ||
|
16
|
16
03141-06123-000
Screw 6x12
|
03141-06123-000 |
— | ||
| replacement | |||||
|
16
|
16
03141-0612A-000 SCREW |
03141-0612A-000 |
US $0.76 |
||
|
17
|
17
86370-58140-5PK
アッシュトレー,リヤ(ブラック)
|
86370-58140-5PK |
— | ||
| replacement | |||||
|
17
|
17
86370-58141-5PK ASHTRAY,RR DR |
86370-58141-5PK |
US $16.72 |
||
|
18
|
18
02122-04168-000
スクリュ
|
02122-04168-000 |
— | ||
| replacement | |||||
|
18
|
18
02122-0416A-000 SCREW |
02122-0416A-000 |
from US $0.64 |
||
|
19
|
19
08316-16046-000
Nut 4mm
|
08316-16046-000 |
— | ||
| replacement | |||||
|
19
|
19
08316-1004B-000 NUT |
08316-1004B-000 |
from US $4.28 |
||
