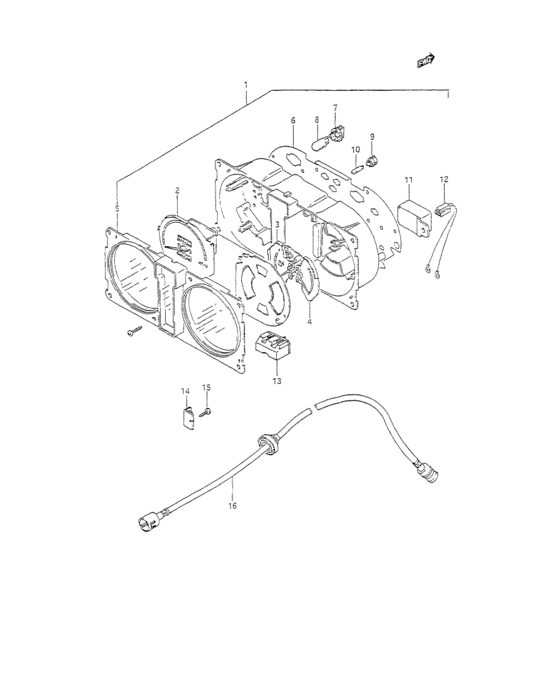

Speedometer (JA) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
- grade
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34100-80470-000
Speedometer assy *
86 MODEL,*THIS IS AN INSTRUMENT CLUSTER ASSE |
34100-80470-000 |
— | ||
|
1
|
1
34100-80900-000
Speedometer assy *
87 MODEL,*THIS IS AN INSTRUMENT CLUSTER ASSE |
34100-80900-000 |
— | ||
|
1
|
1
34100-80951-000
Speedometer assy *
88 MODEL,<-34100-80950,*THIS IS AN INSTRUMENT CLUSTER ASSE |
34100-80951-000 |
— | ||
|
2
|
2
34120-80471-000
Body, speedometer
86 MODEL |
34120-80471-000 |
— | ||
|
2
|
2
34120-80900-000
Body, speedometer
87 MODEL |
34120-80900-000 |
— | ||
|
2
|
2
34120-80950-000
Body, speedometer
88 MODEL |
34120-80950-000 |
— | ||
|
3
|
3
34320-80201-000
BODY ASSY,FUEL METER
|
34320-80201-000 |
— | ||
|
4
|
4
34420-80251-000
Body, temp. guage
|
34420-80251-000 |
— | ||
|
5
|
5
34111-80200-000
Visor
|
34111-80200-000 |
— | ||
|
6
|
6
34152-80470-000
Plate, meter print
|
34152-80470-000 |
— | ||
|
7
|
7
34173-64010-000
ソケット
|
34173-64010-000 |
— | ||
| replacement | |||||
|
7
|
7
34172-50E10-000 SOCKET |
34172-50E10-000 |
US $1.60 |
||
|
8
|
8
09471-12028-000 BULB(12V3.4W,T10) |
09471-12028-000 |
from US $1.98 |
||
|
9
|
9
34175-78900-000 SOCKET |
34175-78900-000 |
US $1.52 |
||
|
10
|
10
09471-12055-000 BULB(14V1.4W,T5) |
09471-12055-000 |
from US $2.40 |
||
|
11
|
11
34160-67010-000
BUZZER ASSY
|
34160-67010-000 |
— | ||
|
12
|
12
34165-80250-000
Wire
|
34165-80250-000 |
— | ||
|
13
|
13
34180-82000-000
TIMER
|
34180-82000-000 |
— | ||
|
14
|
14
34130-82090-000
Switch assy, cancel
|
34130-82090-000 |
— | ||
|
15
|
15
02142-05086-000
スクリュ
|
02142-05086-000 |
— | ||
| replacement | |||||
|
15
|
15
02142-0508A-000 SCREWScrew, cap |
02142-0508A-000 |
from US $0.76 |
||
|
16
|
16
34910-80031-000
Cable, speedometer
<-34910-80030 |
34910-80031-000 |
— | ||
| replacement | |||||
|
16
|
16
34910-80C60-000
CABLE ASSY,SPEEDOMETER
<-34910-80030 |
34910-80C60-000 |
— | ||
