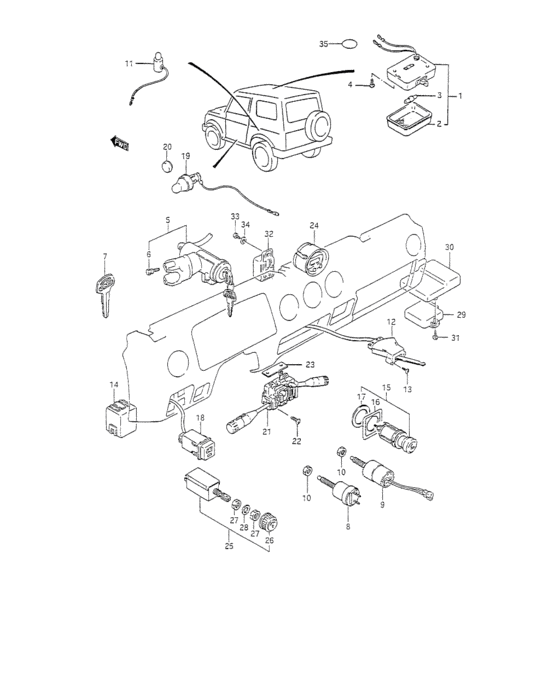

Switch (SWITCH) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
- grade
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36210-79003-000 LAMP ASSY,ROOM |
36210-79003-000 |
US $91.97 |
||
|
2
|
2
36212-79001-000 LENS,ROOM LAMPLens, room lamp |
36212-79001-000 |
from US $11.80 |
||
|
3
|
3
09471-12073-000 BULB(12V,5W) |
09471-12073-000 |
from US $2.40 |
||
|
4
|
4
03212-04109-000
Screw 4x10
|
03212-04109-000 |
— | ||
| replacement | |||||
|
4
|
4
03211-0410B-000 SCREW |
03211-0410B-000 |
from US $0.80 |
||
|
5
|
5
37100-80100-000 LOCK SET |
37100-80100-000 |
US $263.12 |
||
|
6
|
6
37152-66010-000 BOLT,STEERING LOCK |
37152-66010-000 |
US $7.90 |
||
|
7
|
7
37145-70010-000
キー,ブランク
OPT |
37145-70010-000 |
— | ||
| replacement | |||||
|
7
|
7
37145-73302-000 KEY,BLANKOPT |
37145-73302-000 |
US $7.60 |
||
|
8
|
8
37740-66010-000 SWITCH ASSY,BRAKE LAMP |
37740-66010-000 |
US $19.20 |
||
|
9
|
9
37970-82000-000
Switch assy, clutch start
|
37970-82000-000 |
— | ||
| replacement | |||||
|
9
|
9
37970-60B00-000
SWITCH ASSY,CLUTCH START
|
37970-60B00-000 |
— | ||
|
10
|
10
08310-22106-000
Nut
|
08310-22106-000 |
— | ||
| replacements | |||||
|
10
|
10
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
10
|
10
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
11
|
11
37940-80000-000 SWITCH ASSY,PARKING BRAKE |
37940-80000-000 |
US $15.84 |
||
|
12
|
12
37870-80000-000 SWITCH ASSY,HTR FAN MOTOR |
37870-80000-000 |
US $64 |
||
|
13
|
13
03212-04107-000
Screw, center fender
|
03212-04107-000 |
— | ||
| replacement | |||||
|
13
|
13
03211-0410B-000 SCREW |
03211-0410B-000 |
from US $0.80 |
||
|
14
|
14
38610-78304-000
Relay, turn signe1/4 way
86 MODEL |
38610-78304-000 |
— | ||
| replacement | |||||
|
14
|
14
38610-76G00-000 RELAY,TURN SIGNAL&4WAYRelay, turnsignal & 4 way 86 MODEL |
38610-76G00-000 |
US $56.80 |
||
|
14
|
14
38610-50A01-000
リレーアッシ,ターンシグナル/4ウェイ
87 MODEL,88 MODEL,<-38610-84011 |
38610-50A01-000 |
— | ||
| replacement | |||||
|
14
|
14
38610-76G00-000 RELAY,TURN SIGNAL&4WAYRelay, turnsignal & 4 way 87 MODEL,88 MODEL,<-38610-84011 |
38610-76G00-000 |
US $56.80 |
||
|
15
|
15
39400-83810-000
ライタアッシ,シガレット
|
39400-83810-000 |
— | ||
| replacement | |||||
|
15
|
15
39400-83811-000 LIGHTER ASSY,CIGARETTE |
39400-83811-000 |
US $14.40 |
||
|
16
|
16
39471-78001-000 RIM,CIGARETTE LIGHTER |
39471-78001-000 |
US $4.31 |
||
|
17
|
17
09160-23007-000 WASHER(23X34X1) |
09160-23007-000 |
US $15.50 |
||
|
18
|
18
37860-82001-000
Switch assy, defogger
|
37860-82001-000 |
— | ||
|
19
|
19
37670-80002-000 SWITCH ASSY,DOOR<-37670-80001 |
37670-80002-000 |
US $21.60 |
||
|
20
|
20
09250-14003-000 CAP(OD:18)86 MODEL |
09250-14003-000 |
US $2.08 |
||
|
20
|
20
09250-14008-000 CAP(OD:17.3)87 MODEL,88 MODEL |
09250-14008-000 |
US $1.12 |
||
|
21
|
21
37400-80521-000
SWITCH ASSY,COMB
<-37400-80520 |
37400-80521-000 |
— | ||
|
22
|
22
03141-04086-000
New Genuine Part
|
03141-04086-000 |
— | ||
| replacement | |||||
|
22
|
22
03141-0408A-000 SCREW |
03141-0408A-000 |
US $0.80 |
||
|
23
|
23
37495-80000-000 SEAT,COMB SW WATER PROOF |
37495-80000-000 |
US $2.72 |
||
|
24
|
24
34600-83020-000
Clock assy
JX |
34600-83020-000 |
— | ||
|
25
|
25
39600-82010-000
Controller assy, illum
|
39600-82010-000 |
— | ||
| replacement | |||||
|
25
|
25
39600-82021-000 CONTROLLER ASSY,ILLUM |
39600-82021-000 |
US $264 |
||
|
26
|
26
39611-82010-000
Knob
|
39611-82010-000 |
— | ||
|
27
|
27
39612-82010-000
ナット
|
39612-82010-000 |
— | ||
|
28
|
28
39613-82010-000
ワッシャ
|
39613-82010-000 |
— | ||
|
29
|
29
33920-83023-000
Controller, emission
<-33920-83021 |
33920-83023-000 |
— | ||
|
30
|
30
33925-83000-000
Cover, computer
|
33925-83000-000 |
— | ||
|
31
|
31
02142-06456-000
New Genuine Part
|
02142-06456-000 |
— | ||
| replacement | |||||
|
31
|
31
02142-0645B-000 SCREW |
02142-0645B-000 |
from US $4.28 |
||
|
32
|
32
38590-82010-000
Buzzer, seat belt warning
|
38590-82010-000 |
— | ||
|
33
|
33
03511-05166-000
Screw
|
03511-05166-000 |
— | ||
| replacement | |||||
|
33
|
33
03511-0516A-000 SCREW |
03511-0516A-000 |
from US $0.76 |
||
|
34
|
34
08322-21056-000
Washer
|
08322-21056-000 |
— | ||
| replacements | |||||
|
34
|
34
08322-0105B-000 WASHER |
08322-0105B-000 |
from US $0.76 |
||
|
34
|
34
08322-0105A-000 WASHERWasher, front |
08322-0105A-000 |
from US $0.80 |
||
|
35
|
35
67627-70000-000
シール,ホール
N/ROOM LAMP |
67627-70000-000 |
— | ||
| replacement | |||||
|
35
|
35
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole N/ROOM LAMP |
84761-50X50-000 |
US $6.72 |
||
