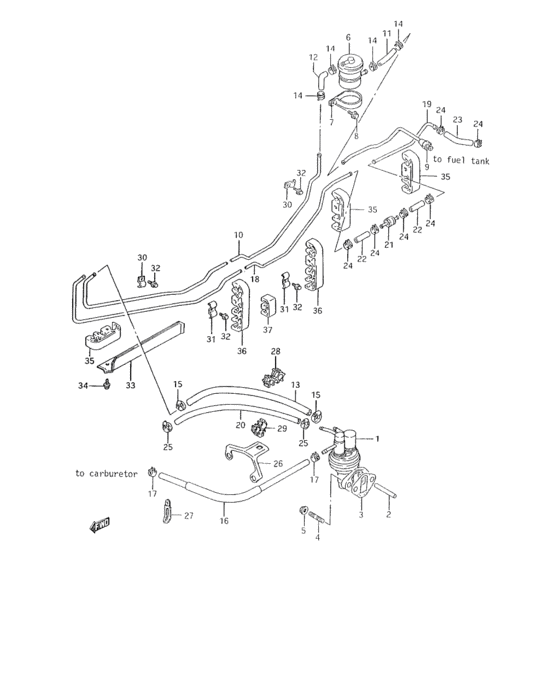

Fuel pump (FUEL PUMP) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-83010-000 PUMP ASSY,FUEL |
15100-83010-000 |
US $408.88 |
||
|
2
|
2
15315-82000-000 ROD,FUEL PUMP |
15315-82000-000 |
US $3.04 |
||
|
3
|
3
15319-73001-000
ガスケット,フューエルポンプ
|
15319-73001-000 |
— | ||
| replacement | |||||
|
3
|
3
15319-63B00-000 GASKET,FUEL PUMP |
15319-63B00-000 |
US $7.36 |
||
|
4
|
4
01421-08253-000
Stud bolt, no.2
|
01421-08253-000 |
— | ||
| replacement | |||||
|
4
|
4
01421-0825A-000 BOLT,STUD |
01421-0825A-000 |
from US $1.12 |
||
|
5
|
5
08316-16083-000 NutNut |
08316-16083-000 |
US $3.06 |
||
| replacement | |||||
|
5
|
5
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
6
|
6
15410-80000-000
FILTER,FUEL
|
15410-80000-000 |
— | ||
|
7
|
7
09403-51407-000 CLAMP |
09403-51407-000 |
US $2.56 |
||
|
8
|
8
01517-06123-000
Bolt
|
01517-06123-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
8
|
8
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
9
|
9
15810-80021-000 PIPE,FUEL88 1/2 MODEL |
15810-80021-000 |
US $47.12 |
||
|
9
|
9
15810-70A20-000
PIPE,FUEL TANK TO FILTER
89 MODEL |
15810-70A20-000 |
— | ||
|
10
|
10
15821-83320-000 PIPE,FUEL FILTER TO PUMP88 1/2 MODEL |
15821-83320-000 |
US $36.62 |
||
|
10
|
10
15821-70A20-000
Pipe, pipe to filter
89 MODEL |
15821-70A20-000 |
— | ||
| replacement | |||||
|
10
|
10
15821-70A21-000
New Genuine Part
89 MODEL |
15821-70A21-000 |
— | ||
|
11
|
11
09354-70124-320
Hose, pipe to pipe
L:320->95 |
09354-70124-320 |
— | ||
| replacements | |||||
|
11
|
11
09354-65113-600
HOSE(6.5X11.5X600)
L:320->95 |
09354-65113-600 |
— | ||
|
11
|
11
44421-12FR0-000 HOSEL:320->95 |
44421-12FR0-000 |
from US $15.38 |
||
|
11
|
11
09355-70125-600 HOSE(7X12X600)Hose, fuel (pump to separator) L:320->95 |
09355-70125-600 |
from US $4.88 |
||
|
11
|
11
09355-65001-600 Hose(6.5X11.5X600)L:320->95 |
09355-65001-600 |
from US $11.10 |
||
|
12
|
12
09354-70124-320
Hose, pipe to pipe
L:320->120 |
09354-70124-320 |
— | ||
| replacements | |||||
|
12
|
12
09354-65113-600
HOSE(6.5X11.5X600)
L:320->120 |
09354-65113-600 |
— | ||
|
12
|
12
44421-12FR0-000 HOSEL:320->120 |
44421-12FR0-000 |
from US $15.38 |
||
|
12
|
12
09355-70125-600 HOSE(7X12X600)Hose, fuel (pump to separator) L:320->120 |
09355-70125-600 |
from US $4.88 |
||
|
12
|
12
09355-65001-600 Hose(6.5X11.5X600)L:320->120 |
09355-65001-600 |
from US $11.10 |
||
|
13
|
13
15840-83002-000
Hose, pipe to pump
|
15840-83002-000 |
— | ||
| replacement | |||||
|
13
|
13
09356-76145-600 HOSE(7.6X14X600)Hose (7.6x14x600) |
09356-76145-600 |
from US $22.63 |
||
|
14
|
14
09401-11405-000 CLAMP |
09401-11405-000 |
US $1.22 |
||
|
15
|
15
09402-15501-000
Clamp
|
09402-15501-000 |
— | ||
| replacement | |||||
|
15
|
15
09402-17511-000 CLAMP |
09402-17511-000 |
US $52.60 |
||
|
16
|
16
15830-83001-000
Hose, pump to carburator
L:400->360 |
15830-83001-000 |
— | ||
| replacement | |||||
|
16
|
16
15830-83X50-000
HOSE,FUEL PUMP TO CARB
L:400->360 |
15830-83X50-000 |
— | ||
|
17
|
17
09401-10404-000 CLAMP |
09401-10404-000 |
US $13.20 |
||
| replacement | |||||
|
17
|
17
09401-10411-000 CLIPClip, cap |
09401-10411-000 |
from US $2.12 |
||
|
18
|
18
15861-83320-000
Pipe, fuel return no.1
88 1/2 MODEL |
15861-83320-000 |
— | ||
|
18
|
18
15861-70A20-000
Pipe, fuel return no.1
89 MODEL |
15861-70A20-000 |
— | ||
| replacement | |||||
|
18
|
18
15861-70A21-000
Pipe, fuel filter
89 MODEL |
15861-70A21-000 |
— | ||
|
19
|
19
15862-83301-000
Pipe, fuel return no.2
88 1/2 MODEL |
15862-83301-000 |
— | ||
|
19
|
19
15862-70A20-000
Pipe, fuel return no.2
89 MODEL |
15862-70A20-000 |
— | ||
| replacement | |||||
|
19
|
19
15862-83301-000
Pipe, fuel return no.2
89 MODEL |
15862-83301-000 |
— | ||
|
20
|
20
15870-83002-000
Hose, pump to pipe
|
15870-83002-000 |
— | ||
| replacement | |||||
|
20
|
20
09356-42115-600 HOSE(4.2X11.2X600) |
09356-42115-600 |
US $14.75 |
||
|
21
|
21
15850-82000-000 VALVE,FUEL RETURN CHECK |
15850-82000-000 |
US $36.43 |
||
|
22
|
22
09356-42115-150
Hose, pipe to valve
L:150->60 |
09356-42115-150 |
— | ||
| replacement | |||||
|
22
|
22
09356-42115-600 HOSE(4.2X11.2X600)L:150->60 |
09356-42115-600 |
US $14.75 |
||
|
23
|
23
09356-42115-150
Hose, pipe to valve
L:150->125 |
09356-42115-150 |
— | ||
| replacement | |||||
|
23
|
23
09356-42115-600 HOSE(4.2X11.2X600)L:150->125 |
09356-42115-600 |
US $14.75 |
||
|
24
|
24
09401-10404-000 CLAMP |
09401-10404-000 |
US $13.20 |
||
| replacement | |||||
|
24
|
24
09401-10411-000 CLIPClip, cap |
09401-10411-000 |
from US $2.12 |
||
|
25
|
25
09402-15501-000
Clamp
|
09402-15501-000 |
— | ||
| replacement | |||||
|
25
|
25
09402-17511-000 CLAMP |
09402-17511-000 |
US $52.60 |
||
|
26
|
26
15881-83002-000
Bracket,fuel hose clamp
|
15881-83002-000 |
— | ||
|
27
|
27
09404-08404-000
Collier (l:100)
|
09404-08404-000 |
— | ||
| replacements | |||||
|
27
|
27
09404-08207-000
CLAMP(L:80)
|
09404-08207-000 |
— | ||
|
27
|
27
09404-08420-000 CLAMP(L:120 T:1.0) |
09404-08420-000 |
from US $2.08 |
||
|
27
|
27
09404-08212-000 Clamp |
09404-08212-000 |
US $1.22 |
||
|
28
|
28
09408-00083-000 CLAMP |
09408-00083-000 |
US $17.30 |
||
|
29
|
29
09408-00090-000
クランプ
|
09408-00090-000 |
— | ||
| replacement | |||||
|
29
|
29
09403-13308-000 CLAMP |
09403-13308-000 |
US $14 |
||
|
30
|
30
09403-08309-000 CLAMP88 1/2 MODEL |
09403-08309-000 |
US $1.98 |
||
|
31
|
31
15819-78000-000
Clamp, fuel pipe
88 1/2 MODEL |
15819-78000-000 |
— | ||
| replacement | |||||
|
31
|
31
15819-78101-000
CLAMP
88 1/2 MODEL |
15819-78101-000 |
— | ||
|
32
|
32
09132-06006-000 SCREW(6X12)88 1/2 MODEL |
09132-06006-000 |
US $1.60 |
||
|
33
|
33
15829-83300-000
Cover, fuel pipe
|
15829-83300-000 |
— | ||
|
34
|
34
09132-06006-000 SCREW(6X12) |
09132-06006-000 |
US $1.60 |
||
|
35
|
35
15893-70A00-000
CLAMP,FUEL,PIPE
89 MODEL |
15893-70A00-000 |
— | ||
|
36
|
36
15895-70A00-000
CLAMP,FUEL PIPE
89 MODEL |
15895-70A00-000 |
— | ||
|
37
|
37
15896-70A00-000 CLAMP,FUEL PIPE89 MODEL |
15896-70A00-000 |
US $1.77 |
||
