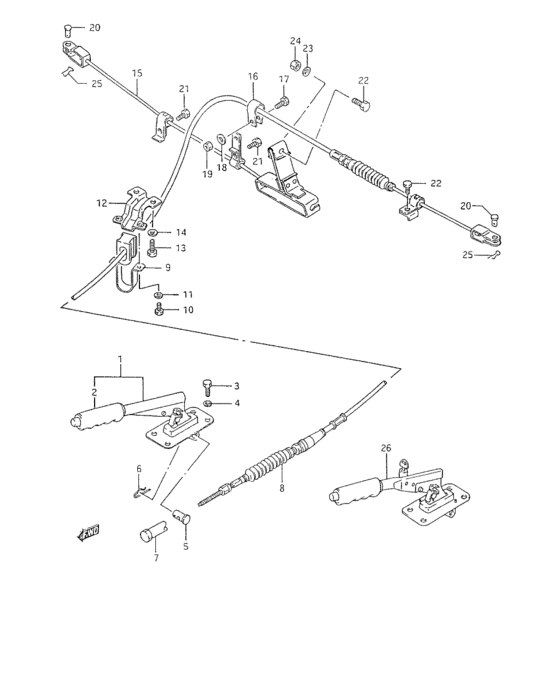

Parking brake (PARKING BRAKE) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54100-83310-000 LEVER ASSY,PARKING BK |
54100-83310-000 |
US $203.20 |
||
|
2
|
2
54112-83310-000
グリップ
|
54112-83310-000 |
— | ||
|
3
|
3
01107-06203-000 JoltBolt, front |
01107-06203-000 |
US $0.75 |
||
| replacement | |||||
|
3
|
3
01500-0620A-000 BOLT |
01500-0620A-000 |
from US $0.76 |
||
|
4
|
4
08321-31063-000 Lock washer |
08321-31063-000 |
US $1.07 |
||
| replacement | |||||
|
4
|
4
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
5
|
5
54161-83300-000 PIN,PARKING BRAKE LEVER |
54161-83300-000 |
US $7.36 |
||
|
6
|
6
09385-12001-000 CLIP |
09385-12001-000 |
US $11 |
||
|
7
|
7
54683-83300-000
ナット,パーキングブレーキアジャスト
|
54683-83300-000 |
— | ||
| replacement | |||||
|
7
|
7
54683-83301-000 NUT,PARKING BRAKE ADJUST |
54683-83301-000 |
US $11.52 |
||
|
8
|
8
54640-70A00-000 CABLE,PARKING BRAKE,NO.1 |
54640-70A00-000 |
US $294.40 |
||
|
9
|
9
54682-83300-000 BRACKET,PARKING CABLE |
54682-83300-000 |
US $4.42 |
||
|
10
|
10
01107-06123-000
Bolt 6x1x16
|
01107-06123-000 |
— | ||
| replacements | |||||
|
10
|
10
01500-0612A-000 BOLT |
01500-0612A-000 |
from US $0.76 |
||
|
10
|
10
01500-06123-000
Bolt, front
|
01500-06123-000 |
— | ||
|
11
|
11
08321-21063-000 Lock washer |
08321-21063-000 |
US $1.07 |
||
| replacement | |||||
|
11
|
11
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
12
|
12
54681-83300-000
STAY,PARKING CABLE BRACKET
|
54681-83300-000 |
— | ||
|
13
|
13
01107-08163-000
Bolt m8x1.25x16
|
01107-08163-000 |
— | ||
| replacements | |||||
|
13
|
13
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
13
|
13
01500-08163-000
Bolt
|
01500-08163-000 |
— | ||
|
14
|
14
08321-21083-000
Washr,lk8.2x15.
|
08321-21083-000 |
— | ||
| replacements | |||||
|
14
|
14
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
14
|
14
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
15
|
15
54660-83310-000 CABLE,PARKING BRAKE,NO.2 |
54660-83310-000 |
US $56 |
||
|
16
|
16
54691-83300-000 BAND,PARKING BRAKE CABLE |
54691-83300-000 |
US $2.24 |
||
|
17
|
17
09128-06049-000 BOLT(6X16)Bolt, inner |
09128-06049-000 |
US $11.40 |
||
|
18
|
18
09160-06077-000 WASHER(6.5X20X1.2)Washer (6.5x20x1.2) |
09160-06077-000 |
from US $0.96 |
||
|
19
|
19
08310-11063-000 Nut m6x1x5 |
08310-11063-000 |
US $1.07 |
||
| replacements | |||||
|
19
|
19
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
19
|
19
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
20
|
20
09200-08059-000 PIN |
09200-08059-000 |
US $1.60 |
||
|
21
|
21
09128-06045-000 BOLT(6X12) |
09128-06045-000 |
US $1.07 |
||
|
22
|
22
01107-08203-000
Bolt
|
01107-08203-000 |
— | ||
| replacement | |||||
|
22
|
22
01500-0820A-000 Bolt |
01500-0820A-000 |
from US $0.80 |
||
|
23
|
23
08321-21083-000
Washr,lk8.2x15.
|
08321-21083-000 |
— | ||
| replacements | |||||
|
23
|
23
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
23
|
23
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
24
|
24
08310-11083-000
ナット
|
08310-11083-000 |
— | ||
| replacements | |||||
|
24
|
24
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
24
|
24
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.80 |
||
|
25
|
25
09385-08004-000 PIN,SNAP |
09385-08004-000 |
from US $1.28 |
||
|
26
|
26
54100-70A20-000 LEVER ASSY,PARKING BKOPT:W/KEY LOCK |
54100-70A20-000 |
US $131.01 |
||
