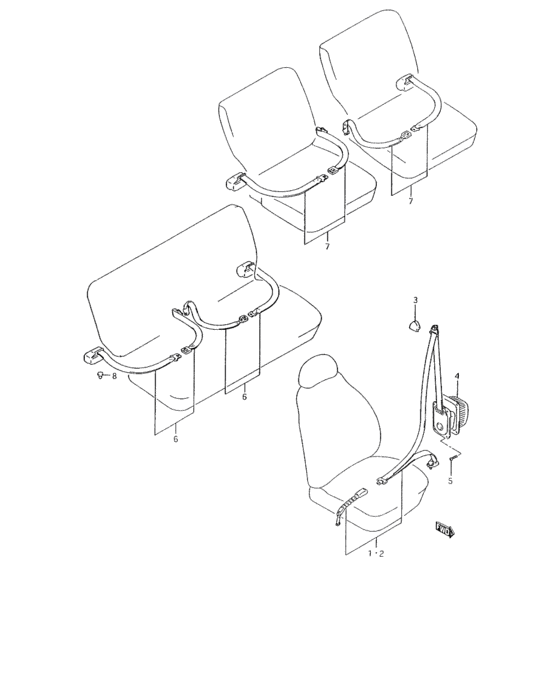

Seat belt (SEAT BELT) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
- grade
- JA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
84901-70A20-5DD
Belt assy, front rh
|
84901-70A20-5DD |
— | ||
| replacement | |||||
|
1
|
1
84901-70811-382
Belt assy, front rh
|
84901-70811-382 |
— | ||
|
1
|
1
84901-70A20-382
Belt assy, front rh
|
84901-70A20-382 |
— | ||
| replacement | |||||
|
1
|
1
84901-70811-382
Belt assy, front rh
|
84901-70811-382 |
— | ||
|
2
|
2
84902-70A30-5DD
Belt assy, front lh
|
84902-70A30-5DD |
— | ||
| replacement | |||||
|
2
|
2
84902-70811-382
Belt assy, front lh
|
84902-70811-382 |
— | ||
|
2
|
2
84902-70A30-382
Belt assy, front lh
|
84902-70A30-382 |
— | ||
| replacement | |||||
|
2
|
2
84902-70811-382
Belt assy, front lh
|
84902-70811-382 |
— | ||
|
3
|
3
84922-82010-000
Cover,anchor
|
84922-82010-000 |
— | ||
| replacement | |||||
|
3
|
3
84922-82010-6GL
COVER,ANCHOR
|
84922-82010-6GL |
— | ||
|
4
|
4
84924-80130-000 COVER,FR SEAT BELT |
84924-80130-000 |
US $11.20 |
||
|
5
|
5
02142-06125-000
Screw
|
02142-06125-000 |
— | ||
| replacements | |||||
|
5
|
5
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
5
|
5
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
6
|
6
84904-70A00-5DD
Belt assy, rear
BENCH SEAT |
84904-70A00-5DD |
— | ||
| replacement | |||||
|
6
|
6
84904-70811-382
Belt assy, rear
BENCH SEAT |
84904-70811-382 |
— | ||
|
6
|
6
84904-70A00-382
Belt assy, rear
BENCH SEAT |
84904-70A00-382 |
— | ||
| replacement | |||||
|
6
|
6
84904-70811-382
Belt assy, rear
BENCH SEAT |
84904-70811-382 |
— | ||
|
7
|
7
84904-70A10-5DD
Belt assy, rear
SEPARATE SEAT |
84904-70A10-5DD |
— | ||
|
7
|
7
84904-70A10-382
Belt assy, rear
SEPARATE SEAT |
84904-70A10-382 |
— | ||
| replacement | |||||
|
7
|
7
84904-70811-382
Belt assy, rear
SEPARATE SEAT |
84904-70811-382 |
— | ||
|
8
|
8
09250-10017-000 PLUG(OD:22)2 PASSENGER |
09250-10017-000 |
US $17.70 |
||
