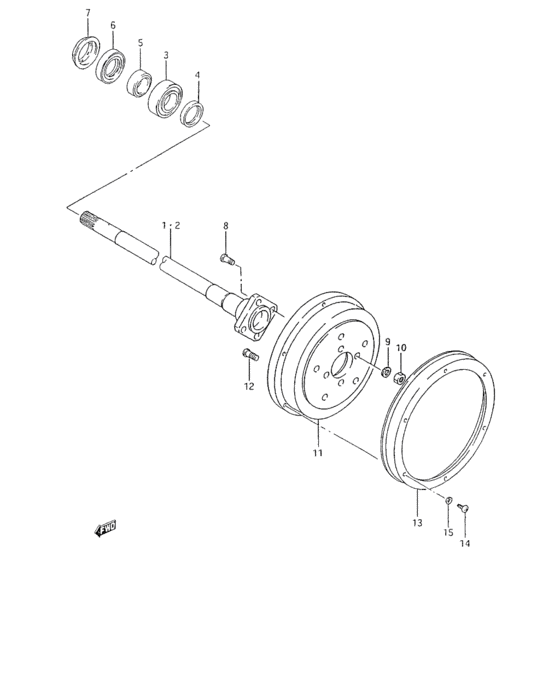

Rear axle (REAR AXLE) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
- grade
- JL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44210-83300-000
Arbre cd arriere
|
44210-83300-000 |
— | ||
| replacements | |||||
|
1
|
1
44210-70AV0-000 SHAFT ASSY,REAR AXLE,R |
44210-70AV0-000 |
US $182.16 |
||
|
1
|
1
09119-12007-000 BOLT |
09119-12007-000 |
from US $1.19 |
||
|
1
|
1
44210-83301-000
Shaft, rear axle rh
JS3JC51C J4265910-,JS4JC51C J4265910-,JS3JC51V J4156140-,JS4JC51V J4156140- |
44210-83301-000 |
— | ||
| replacement | |||||
|
1
|
1
44210-70AV0-000 SHAFT ASSY,REAR AXLE,RJS3JC51C J4265910-,JS4JC51C J4265910-,JS3JC51V J4156140-,JS4JC51V J4156140- |
44210-70AV0-000 |
US $182.16 |
||
|
2
|
2
44220-83300-000
Arbre cg arriere
|
44220-83300-000 |
— | ||
| replacements | |||||
|
2
|
2
44220-70AV0-000 SHAFT ASSY,REAR AXLE,L |
44220-70AV0-000 |
US $202.40 |
||
|
2
|
2
09119-12007-000 BOLT |
09119-12007-000 |
from US $1.19 |
||
|
2
|
2
44220-83301-000
Shaft, rear axle lh
JS3JC51C J4265910-,JS4JC51C J4265910-,JS3JC51V J4156140-,JS4JC51V J4156140- |
44220-83301-000 |
— | ||
| replacement | |||||
|
2
|
2
44220-70AV0-000 SHAFT ASSY,REAR AXLE,LJS3JC51C J4265910-,JS4JC51C J4265910-,JS3JC51V J4156140-,JS4JC51V J4156140- |
44220-70AV0-000 |
US $202.40 |
||
|
3
|
3
09262-35036-000
ベアリング
|
09262-35036-000 |
— | ||
| replacement | |||||
|
3
|
3
09269-35009-000 BEARING(35X72X22) |
09269-35009-000 |
from US $37.60 |
||
|
3
|
3
09269-35009-000 BEARING(35X72X22)JS3JC51C J4258204-,JS4JC51C J4258204-,JS3JC51V J4154915-,JS4JC51V J4154915- |
09269-35009-000 |
from US $37.60 |
||
|
4
|
4
44131-73001-000
スペーサ,リヤシャフト
-JS3JC51C J4258203,-JS4JC51C J4258203,-JS3JC51V J4154914,-JS4JC51V J4154914 |
44131-73001-000 |
— | ||
| replacement | |||||
|
4
|
4
43429-77201-000 SPACER,REAR WHEEL BEARING-JS3JC51C J4258203,-JS4JC51C J4258203,-JS3JC51V J4154914,-JS4JC51V J4154914 |
43429-77201-000 |
from US $7.09 |
||
|
5
|
5
43485-73000-000 RING,RR WHEEL BRG RETAINER |
43485-73000-000 |
from US $8.51 |
||
|
6
|
6
09283-48007-000 SEAL,OIL(48X62X9) |
09283-48007-000 |
from US $3.98 |
||
|
7
|
7
43588-73000-000 PROTECTOR,OIL SEAL |
43588-73000-000 |
from US $1.52 |
||
|
8
|
8
09119-12003-000 Bolt |
09119-12003-000 |
US $2.24 |
||
|
8
|
8
09119-12007-000 BOLTJS3JC51C J4265910-,JS4JC51C J4265910-,JS3JC51V J4156140-,JS4JC51V J4156140- |
09119-12007-000 |
from US $1.19 |
||
|
9
|
9
08321-31126-000
Washer lock
|
08321-31126-000 |
— | ||
| replacement | |||||
|
9
|
9
08321-0112A-000 WASHER,LOCK |
08321-0112A-000 |
from US $0.76 |
||
|
10
|
10
08310-11126-000
Nut
|
08310-11126-000 |
— | ||
| replacement | |||||
|
10
|
10
08310-0012A-000 NUT |
08310-0012A-000 |
from US $0.76 |
||
|
11
|
11
43500-83810-000
Drum set,rear brake
|
43500-83810-000 |
— | ||
| replacement | |||||
|
11
|
11
43500-83811-000 DRUM SET,RR BRAKE |
43500-83811-000 |
US $297.60 |
||
|
12
|
12
09119-12007-000 BOLT |
09119-12007-000 |
from US $1.19 |
||
|
13
|
13
43521-83003-000 COVER,BRAKE DRUM DUST |
43521-83003-000 |
US $50.40 |
||
|
14
|
14
02112-06103-000
Screw 6x10
|
02112-06103-000 |
— | ||
| replacement | |||||
|
14
|
14
02112-0610B-000 SCREW |
02112-0610B-000 |
from US $0.76 |
||
|
15
|
15
08321-21063-000 Lock washer |
08321-21063-000 |
US $1.07 |
||
| replacement | |||||
|
15
|
15
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
