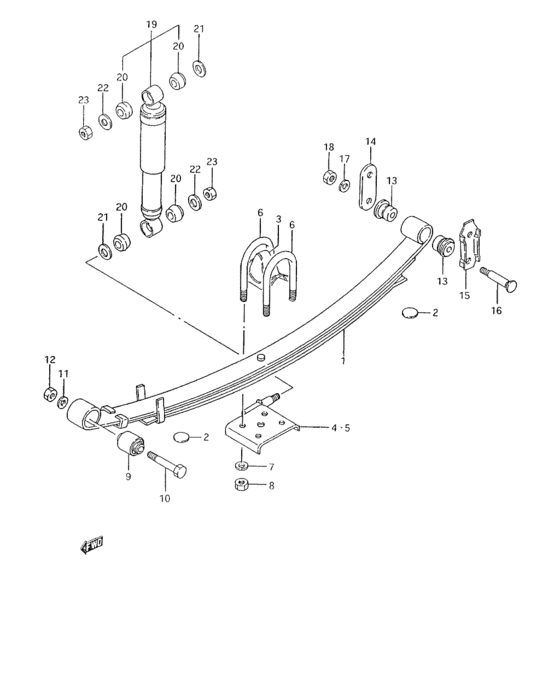

Rear suspension (REAR SUSPENSION) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
- grade
- JL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41310-70A30-000
Spring assy,rear
|
41310-70A30-000 |
— | ||
|
2
|
2
41118-70A00-000
サイレンサ,スプリング
|
41118-70A00-000 |
— | ||
| replacement | |||||
|
2
|
2
41117-70A10-000 SILENCER,SPRING |
41117-70A10-000 |
US $21.60 |
||
|
3
|
3
42150-83000-000 BUMPER,SPRING |
42150-83000-000 |
US $23.55 |
||
|
4
|
4
41430-83000-000
Plaque ressort cd
|
41430-83000-000 |
— | ||
| replacement | |||||
|
4
|
4
41240-83001-000 SEAT,FR SPRING,L |
41240-83001-000 |
US $53.20 |
||
|
5
|
5
41440-83000-000 SEAT,REAR SPRING,L |
41440-83000-000 |
US $37.25 |
||
|
6
|
6
41411-83000-000 U-BOLT,FR SPRING,L |
41411-83000-000 |
US $18.24 |
||
|
7
|
7
08321-31123-000
ロックワッシャ
|
08321-31123-000 |
— | ||
| replacement | |||||
|
7
|
7
08321-0112A-000 WASHER,LOCK |
08321-0112A-000 |
from US $0.76 |
||
|
8
|
8
08310-11123-000
New Genuine Part
|
08310-11123-000 |
— | ||
| replacement | |||||
|
8
|
8
08310-0012A-000 NUT |
08310-0012A-000 |
from US $0.76 |
||
|
9
|
9
09319-12023-000 BUSH |
09319-12023-000 |
from US $10.24 |
||
|
10
|
10
09100-12025-000
ボルト,12X92
|
09100-12025-000 |
— | ||
| replacements | |||||
|
10
|
10
09103-12044-000 BOLT(12X87) |
09103-12044-000 |
from US $2.48 |
||
|
10
|
10
09103-12048-000 BOLT(12X90) |
09103-12048-000 |
US $8.48 |
||
|
10
|
10
09100-12059-000
ボルト,12X92
JS3JC51C J4279932-,JS4JC51C J4279932-,JS3JC51V J4157689-,JS4JC51V J4157689- |
09100-12059-000 |
— | ||
| replacements | |||||
|
10
|
10
09103-12044-000 BOLT(12X87)JS3JC51C J4279932-,JS4JC51C J4279932-,JS3JC51V J4157689-,JS4JC51V J4157689- |
09103-12044-000 |
from US $2.48 |
||
|
10
|
10
09103-12048-000 BOLT(12X90)JS3JC51C J4279932-,JS4JC51C J4279932-,JS3JC51V J4157689-,JS4JC51V J4157689- |
09103-12048-000 |
US $8.48 |
||
|
11
|
11
08321-31123-000
ロックワッシャ
|
08321-31123-000 |
— | ||
| replacement | |||||
|
11
|
11
08321-0112A-000 WASHER,LOCK |
08321-0112A-000 |
from US $0.76 |
||
|
12
|
12
08310-11123-000
New Genuine Part
|
08310-11123-000 |
— | ||
| replacement | |||||
|
12
|
12
08310-0012A-000 NUT |
08310-0012A-000 |
from US $0.76 |
||
|
13
|
13
09305-13002-000 BUSH |
09305-13002-000 |
from US $1.58 |
||
|
14
|
14
41461-83300-000 PLATE,SPRING SHACKLE INNER |
41461-83300-000 |
US $19.20 |
||
|
15
|
15
41462-77300-000 PLATE,OUTER |
41462-77300-000 |
US $12.80 |
||
|
16
|
16
41463-82000-000 PIN,SHACKLE |
41463-82000-000 |
US $6.72 |
||
|
17
|
17
08321-31103-000
ロックワッシャ
|
08321-31103-000 |
— | ||
| replacements | |||||
|
17
|
17
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
17
|
17
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
18
|
18
08310-12103-000 Nut |
08310-12103-000 |
US $0.63 |
||
| replacements | |||||
|
18
|
18
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
18
|
18
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
19
|
19
41700-70A00-000 ABSORBER ASSY,RR SHOCK |
41700-70A00-000 |
US $294.40 |
||
|
20
|
20
09320-16006-000
ブッシュ
|
09320-16006-000 |
— | ||
| replacement | |||||
|
20
|
20
41781-52010-000 BUSHING,SHOCK ABSORBER NO.1 |
41781-52010-000 |
US $2.24 |
||
|
21
|
21
08322-21163-000
New Genuine Part
|
08322-21163-000 |
— | ||
| replacement | |||||
|
21
|
21
08322-0116A-000 WASHER |
08322-0116A-000 |
from US $0.80 |
||
|
22
|
22
09160-12073-000 WASHER(12.5X32X2.3)Washer (12.5x32x2.3) |
09160-12073-000 |
from US $0.96 |
||
|
23
|
23
08310-11123-000
New Genuine Part
|
08310-11123-000 |
— | ||
| replacement | |||||
|
23
|
23
08310-0012A-000 NUT |
08310-0012A-000 |
from US $0.76 |
||
