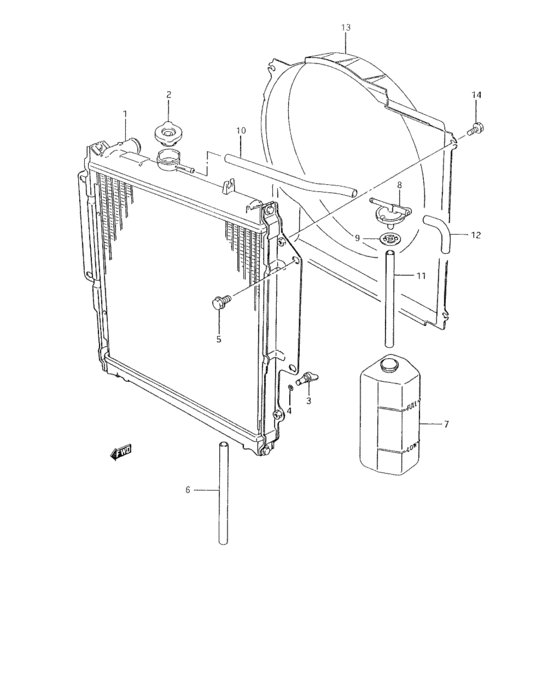

Radiator (RADIATOR) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17700-83100-000
Radiator assy
|
17700-83100-000 |
— | ||
| replacement | |||||
|
1
|
1
17700-83102-000 RADIATOR ASSY |
17700-83102-000 |
US $397.76 |
||
|
2
|
2
17920-83100-000
Cap
|
17920-83100-000 |
— | ||
| replacements | |||||
|
2
|
2
17920-60B21-000 CAP,RADIATOR 0.9 |
17920-60B21-000 |
US $15.36 |
||
|
2
|
2
17920-83101-000 CAP ASSY,RADIATOR 0.9 |
17920-83101-000 |
from US $25.97 |
||
|
3
|
3
17751-83100-000 PLUG,DRAIN |
17751-83100-000 |
US $4.82 |
||
|
4
|
4
17759-83100-000 GASKET,DRAIN PLUG |
17759-83100-000 |
US $2.24 |
||
|
5
|
5
01517-06103-000
ボルト
|
01517-06103-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
5
|
5
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
6
|
6
09351-75111-180
Hose, radiator drain
|
09351-75111-180 |
— | ||
| replacement | |||||
|
6
|
6
09351-75111-600 HOSE(7.5X11.5X600) |
09351-75111-600 |
US $2.89 |
||
|
7
|
7
17931-80000-000
タンク,ウォータリザーブ
|
17931-80000-000 |
— | ||
| replacement | |||||
|
7
|
7
17931-80001-000 TANK,WATER RESERVE |
17931-80001-000 |
from US $15.35 |
||
|
8
|
8
17932-82001-000 CAP,WATER RESERVOIR TANKCap, water reservoir tank |
17932-82001-000 |
US $9.12 |
||
|
9
|
9
17933-82002-000 RUBBER,WTR RSV TANK CAP |
17933-82002-000 |
US $2.13 |
||
|
10
|
10
09352-70121-13A
ホース,7X12X1130
L:1130->280 |
09352-70121-13A |
— | ||
| replacement | |||||
|
10
|
10
09352-70121-00B HOSE(7X12.1X2000)Hose, silencer L:1130->280 |
09352-70121-00B |
from US $21.60 |
||
|
11
|
11
09352-70111-430
ホース,7X11X430
L:430->170 |
09352-70111-430 |
— | ||
| replacement | |||||
|
11
|
11
09352-70111-600 HOSE(7X11X600)L:430->170 |
09352-70111-600 |
from US $6.84 |
||
|
12
|
12
17859-80701-000 HOSE,WATER BYPASS<-17859-80700 |
17859-80701-000 |
US $2.74 |
||
|
13
|
13
17761-83100-000
Shroud, fan
|
17761-83100-000 |
— | ||
| replacement | |||||
|
13
|
13
17761-83101-000
SHROUD,FAN
|
17761-83101-000 |
— | ||
|
14
|
14
01517-06103-000
ボルト
|
01517-06103-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
14
|
14
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
