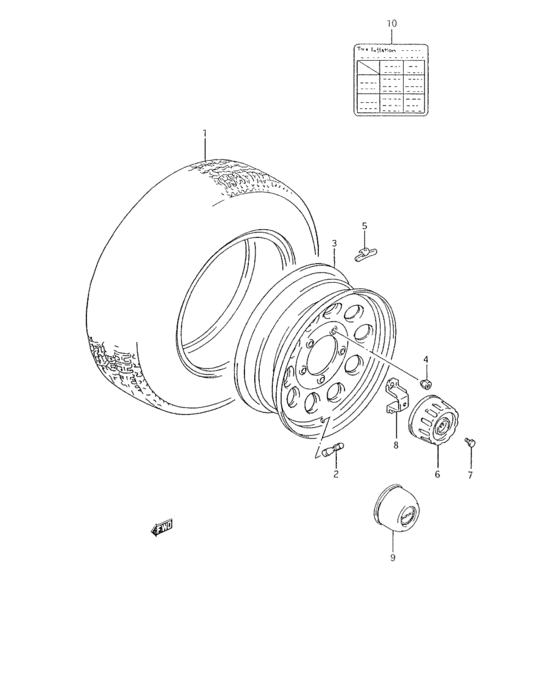

Tire and wheel (TIRE AND WHEEL) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43110-83310-000
Tire, p205/70r15
|
43110-83310-000 |
— | ||
|
2
|
2
43130-78030-000 VALVE,TIRE TR413 BSValve assy, wheel rim |
43130-78030-000 |
US $12.50 |
||
|
2
|
2
43130-85000-000
バルブ,タイヤ,TR413(SCHRADER)
|
43130-85000-000 |
— | ||
| replacement | |||||
|
2
|
2
43130-78030-000 VALVE,TIRE TR413 BSValve assy, wheel rim |
43130-78030-000 |
US $12.50 |
||
|
3
|
3
43210-70A00-26U
Wheel white
88 1/2 MODEL |
43210-70A00-26U |
— | ||
| replacement | |||||
|
3
|
3
43210-70A01-26U
WHEEL(15X5 1/2JJ)
88 1/2 MODEL |
43210-70A01-26U |
— | ||
|
3
|
3
43210-70A01-38B
Wheel gray
89 MODEL |
43210-70A01-38B |
— | ||
| replacement | |||||
|
3
|
3
43210-70A01-27S WHEEL(15X5 1/2JJ)89 MODEL |
43210-70A01-27S |
US $150.88 |
||
|
4
|
4
09140-12026-000
ナット
88 1/2 MODEL |
09140-12026-000 |
— | ||
| replacement | |||||
|
4
|
4
09140-12042-000 NUT88 1/2 MODEL |
09140-12042-000 |
from US $1.33 |
||
|
4
|
4
09159-12024-000 NUT89 MODEL |
09159-12024-000 |
from US $2.40 |
||
|
5
|
5
43231-83000-000
ウエイト,ホイールバランス,30G
|
43231-83000-000 |
— | ||
| replacement | |||||
|
5
|
5
43221-60C50-000 BALANCE WEIGHT,WHEEL 30G |
43221-60C50-000 |
US $2.80 |
||
|
5
|
5
43232-83000-000
ウエイト,ホイールバランス,40G
|
43232-83000-000 |
— | ||
| replacement | |||||
|
5
|
5
43234-78130-000 WEIGHT,WHEEL BALANCE 40G |
43234-78130-000 |
US $4.12 |
||
|
5
|
5
43233-83000-000
ウエイト,ホイールバランス,50G
|
43233-83000-000 |
— | ||
|
5
|
5
43234-83000-000
ウエイト,ホイールバランス,60G
|
43234-83000-000 |
— | ||
|
5
|
5
43235-83000-000
ウエイト,ホイールバランス,70G
|
43235-83000-000 |
— | ||
|
5
|
5
43236-83000-000
ウエイト,ホイールバランス,80G
|
43236-83000-000 |
— | ||
|
6
|
6
43252-80000-000 CAP,WHEEL,CENTER88 1/2 MODEL:JX |
43252-80000-000 |
US $32 |
||
|
7
|
7
09100-08253-000 BOLT(8X9)88 1/2 MODEL:JX |
09100-08253-000 |
from US $0.97 |
||
|
8
|
8
43271-80000-000 HOLDER,CTR CAP RR88 1/2 MODEL:JX |
43271-80000-000 |
US $25.60 |
||
|
9
|
9
43252-70A10-000
Cap, wheel center
89 MODEL |
43252-70A10-000 |
— | ||
|
10
|
10
79161-83300-000
Emblem, air indicator
|
79161-83300-000 |
— | ||
| replacement | |||||
|
10
|
10
79161-83301-000
PLACARD,TIRE INFORMATION
|
79161-83301-000 |
— | ||
