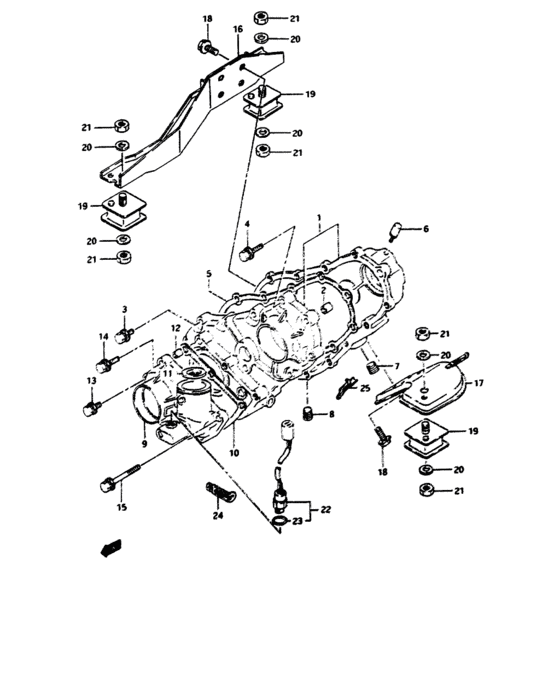

Transfer case (4WD) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
- drive
- 4WD
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29510-83050-000 CASE ASSY,T/F |
29510-83050-000 |
US $366.91 |
||
|
2
|
2
29527-80050-000 PIN,T/F CASE KNOCK |
29527-80050-000 |
US $1.82 |
||
|
3
|
3
01580-08303-000
Bolt
90 MODEL,91 MODEL,92 MODEL,93 MODEL |
01580-08303-000 |
— | ||
| replacement | |||||
|
3
|
3
01580-0830A-000 BOLT90 MODEL,91 MODEL,92 MODEL,93 MODEL |
01580-0830A-000 |
from US $5.88 |
||
|
3
|
3
09117-08092-000 BOLT(8X30)94 MODEL,95 MODEL |
09117-08092-000 |
US $19.50 |
||
|
4
|
4
01580-08403-000
ボルト
90 MODEL,91 MODEL,92 MODEL,93 MODEL |
01580-08403-000 |
— | ||
| replacement | |||||
|
4
|
4
01580-0840A-000 Bolt90 MODEL,91 MODEL,92 MODEL,93 MODEL |
01580-0840A-000 |
from US $3.33 |
||
|
4
|
4
09117-08090-000 BOLT(8X40)94 MODEL,95 MODEL |
09117-08090-000 |
US $21.70 |
||
|
5
|
5
29525-80050-000 GASKET,T/F CASE CENTER |
29525-80050-000 |
US $2.24 |
||
|
6
|
6
29515-80050-000 PLUG,T/F BREATHER |
29515-80050-000 |
US $3.52 |
||
|
7
|
7
29945-80051-000 PLUG,OIL FILLER |
29945-80051-000 |
from US $2.24 |
||
|
8
|
8
29946-80051-000 PLUG,OIL DRAIN |
29946-80051-000 |
US $5.28 |
||
|
9
|
9
29530-80051-000 CASE,T/F,FR |
29530-80051-000 |
US $241.60 |
||
|
10
|
10
29535-80050-000 GASKET,T/F CASE FR |
29535-80050-000 |
US $1.60 |
||
|
11
|
11
29541-80051-000 SHEET,T/F SHIFT BALL |
29541-80051-000 |
US $12 |
||
|
12
|
12
29527-80050-000 PIN,T/F CASE KNOCK |
29527-80050-000 |
US $1.82 |
||
|
13
|
13
01580-08303-000
Bolt
90 MODEL,91 MODEL,92 MODEL,93 MODEL |
01580-08303-000 |
— | ||
| replacement | |||||
|
13
|
13
01580-0830A-000 BOLT90 MODEL,91 MODEL,92 MODEL,93 MODEL |
01580-0830A-000 |
from US $5.88 |
||
|
13
|
13
09117-08092-000 BOLT(8X30)94 MODEL,95 MODEL |
09117-08092-000 |
US $19.50 |
||
|
14
|
14
01580-08403-000
ボルト
90 MODEL,91 MODEL,92 MODEL,93 MODEL |
01580-08403-000 |
— | ||
| replacement | |||||
|
14
|
14
01580-0840A-000 Bolt90 MODEL,91 MODEL,92 MODEL,93 MODEL |
01580-0840A-000 |
from US $3.33 |
||
|
14
|
14
09117-08090-000 BOLT(8X40)94 MODEL,95 MODEL |
09117-08090-000 |
US $21.70 |
||
|
15
|
15
01987-08803-000
ボルト
90 MODEL,91 MODEL,92 MODEL,93 MODEL |
01987-08803-000 |
— | ||
| replacement | |||||
|
15
|
15
09117-08093-000 BOLT(8X80)90 MODEL,91 MODEL,92 MODEL,93 MODEL |
09117-08093-000 |
US $32.80 |
||
|
15
|
15
09117-08093-000 BOLT(8X80)94 MODEL,95 MODEL |
09117-08093-000 |
US $32.80 |
||
|
16
|
16
29620-80701-000 BRACKET,T/F MOUNTING,R |
29620-80701-000 |
US $72 |
||
|
17
|
17
29630-80700-000 BRACKET,T/F MOUNTING,L |
29630-80700-000 |
US $16.19 |
||
|
18
|
18
01550-08203-000
Bolt
|
01550-08203-000 |
— | ||
| replacements | |||||
|
18
|
18
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
18
|
18
01550-0820A-000 BOLTBolt, funnel bracket |
01550-0820A-000 |
from US $0.96 |
||
|
19
|
19
29610-82C01-000 MOUNTING,T/F |
29610-82C01-000 |
from US $32.51 |
||
|
20
|
20
08321-01103-000
Washer
|
08321-01103-000 |
— | ||
| replacements | |||||
|
20
|
20
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
20
|
20
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
21
|
21
08310-00103-000
Nut
|
08310-00103-000 |
— | ||
| replacements | |||||
|
21
|
21
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
21
|
21
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
22
|
22
37620-80000-000 SWITCH ASSY90 MODEL |
37620-80000-000 |
US $78.40 |
||
|
22
|
22
37680-80002-000 SWITCH ASSY,4WD91 MODEL,92 MODEL,93 MODEL,94 MODEL,95 MODEL |
37680-80002-000 |
US $32 |
||
|
23
|
23
09280-11002-000 O RING(D:1.9,ID:11.4) |
09280-11002-000 |
from US $0.88 |
||
|
24
|
24
09404-08420-000 CLAMP(L:120 T:1.0) |
09404-08420-000 |
from US $2.08 |
||
|
25
|
25
29660-83000-000 PIPE,OIL RECEIVERJS4JC31C L4105661~,JS3JC31C L4106241~ |
29660-83000-000 |
US $8.65 |
||
