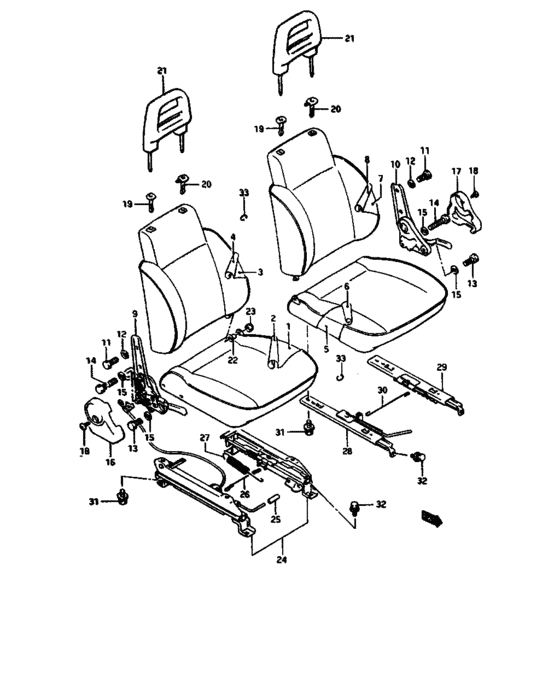

Front seat (4WD) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
- drive
- 4WD
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
85105-83001-000 CUSHION SUB ASSY,FR SEAT,R |
85105-83001-000 |
US $345.04 |
||
|
2
|
2
85180-83001-2AM
Cover, cushion rh
90 MODEL,91 MODEL |
85180-83001-2AM |
— | ||
|
2
|
2
85180-83001-2AP
Cover, cushion rh
90 MODEL,91 MODEL |
85180-83001-2AP |
— | ||
|
2
|
2
85180-83001-L45
Trim,front seat cushion,r
92 MODEL,93 MODEL |
85180-83001-L45 |
— | ||
|
2
|
2
85180-83001-C0N
Cover, cushion rh
94 MODEL,95 MODEL |
85180-83001-C0N |
— | ||
|
3
|
3
85305-83001-000 BACK S/ASSY,FR SEAT,R |
85305-83001-000 |
US $248.40 |
||
|
4
|
4
85380-83003-2AM
Cover, back lh
90 MODEL,91 MODEL |
85380-83003-2AM |
— | ||
|
4
|
4
85380-83003-2AP
Cover, back lh
90 MODEL,91 MODEL |
85380-83003-2AP |
— | ||
|
4
|
4
85380-83003-L45
Cover, back lh
92 MODEL,93 MODEL |
85380-83003-L45 |
— | ||
|
4
|
4
85380-83003-C0N
Cover, back lh
94 MODEL,95 MODEL |
85380-83003-C0N |
— | ||
|
5
|
5
85106-83001-000 CUSHION SUB ASSY,FR SEAT,L |
85106-83001-000 |
US $345.04 |
||
|
6
|
6
85680-83001-2AM
Cover, cushion lh
90 MODEL,91 MODEL |
85680-83001-2AM |
— | ||
|
6
|
6
85680-83001-2AP
Cover, cushion lh
90 MODEL,91 MODEL |
85680-83001-2AP |
— | ||
|
6
|
6
85680-83001-L45
Trim,front seat cushion,l
92 MODEL,93 MODEL |
85680-83001-L45 |
— | ||
|
6
|
6
85680-83001-C0N
TRIM,FR SEAT CUSHION,L
94 MODEL,95 MODEL |
85680-83001-C0N |
— | ||
|
7
|
7
85306-83001-000
BACK S/ASSY,FR SEAT,L
|
85306-83001-000 |
— | ||
|
8
|
8
85380-83003-2AM
Cover, back lh
90 MODEL,91 MODEL |
85380-83003-2AM |
— | ||
|
8
|
8
85380-83003-2AP
Cover, back lh
90 MODEL,91 MODEL |
85380-83003-2AP |
— | ||
|
8
|
8
85380-83003-L45
Cover, back lh
92 MODEL,93 MODEL |
85380-83003-L45 |
— | ||
|
8
|
8
85380-83003-C0N
Cover, back lh
94 MODEL,95 MODEL |
85380-83003-C0N |
— | ||
|
9
|
9
85210-83001-5PK
Reclining assy,fr seat,r
|
85210-83001-5PK |
— | ||
|
10
|
10
85710-80290-5PK
RECLINING,FR SEAT,L
|
85710-80290-5PK |
— | ||
|
11
|
11
01500-08163-000
Bolt
|
01500-08163-000 |
— | ||
| replacement | |||||
|
11
|
11
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
12
|
12
08321-01083-000
Lock washer
|
08321-01083-000 |
— | ||
| replacements | |||||
|
12
|
12
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
12
|
12
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
13
|
13
01570-10163-000
ボルト
|
01570-10163-000 |
— | ||
| replacement | |||||
|
13
|
13
01570-1016A-000 Bolt |
01570-1016A-000 |
US $17.30 |
||
|
14
|
14
01570-10403-000
Bolt, upper
|
01570-10403-000 |
— | ||
| replacement | |||||
|
14
|
14
01570-1040A-000 Bolt |
01570-1040A-000 |
US $1.06 |
||
|
15
|
15
08321-01103-000
Washer
|
08321-01103-000 |
— | ||
| replacements | |||||
|
15
|
15
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
15
|
15
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
16
|
16
85221-82001-5CW
Cover, reclining rh
|
85221-82001-5CW |
— | ||
| replacement | |||||
|
16
|
16
85221-82001-5PK COVER,RECLINING,R |
85221-82001-5PK |
US $8.02 |
||
|
16
|
16
85221-82001-5PK COVER,RECLINING,R |
85221-82001-5PK |
US $8.02 |
||
|
17
|
17
85721-82001-5CW
Cover, reclining lh
->85721-82001-5PK |
85721-82001-5CW |
— | ||
| replacement | |||||
|
17
|
17
85721-82001-5PK COVER,RECLINING,L->85721-82001-5PK |
85721-82001-5PK |
US $8.02 |
||
|
17
|
17
85721-82001-5PK COVER,RECLINING,L |
85721-82001-5PK |
US $8.02 |
||
|
18
|
18
03241-05123-000
Screw
|
03241-05123-000 |
— | ||
| replacement | |||||
|
18
|
18
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
19
|
19
85391-80290-000 GUIDE,HEADRESTRAINT,R |
85391-80290-000 |
US $12.32 |
||
|
20
|
20
85890-83000-000 GUIDE,HEADRESTRAINT,L |
85890-83000-000 |
US $15.36 |
||
|
21
|
21
86401-70A00-5GS
HEADRESTRAINT ASSY,FR SEAT (BROWN)
|
86401-70A00-5GS |
— | ||
|
21
|
21
86401-70A00-5GU HEADRESTRAINT ASSY,FR SEAT (BLACK) |
86401-70A00-5GU |
US $115.92 |
||
|
22
|
22
85291-80290-000 BUSH,SEAT BACK FIXING |
85291-80290-000 |
US $2.56 |
||
|
23
|
23
08313-20083-000
Nut
|
08313-20083-000 |
— | ||
| replacements | |||||
|
23
|
23
08313-2008B-000 NUT |
08313-2008B-000 |
from US $3.94 |
||
|
23
|
23
08313-2008A-000 NUT |
08313-2008A-000 |
from US $0.91 |
||
|
24
|
24
86701-83031-000
WALKIN ASSY,FR SEAT,R
|
86701-83031-000 |
— | ||
|
25
|
25
86736-83000-000 KNOB,LOCK HANDLE |
86736-83000-000 |
US $1.60 |
||
|
26
|
26
86731-83000-000 ROD,WALKIN TENSION |
86731-83000-000 |
US $8.64 |
||
|
27
|
27
86732-83030-000
SPRING,WALKIN TENSION
|
86732-83030-000 |
— | ||
|
28
|
28
86610-70A00-000
RAIL ASSY,FR SEAT SLIDE,R
|
86610-70A00-000 |
— | ||
|
29
|
29
86620-70A00-000
Rail assy,front seat slide,l
|
86620-70A00-000 |
— | ||
|
30
|
30
86731-70A00-000
Rod, rail
|
86731-70A00-000 |
— | ||
|
31
|
31
01580-06123-000
Bolt
|
01580-06123-000 |
— | ||
| replacements | |||||
|
31
|
31
01580-0612B-000 Bolt |
01580-0612B-000 |
US $0.96 |
||
|
31
|
31
01580-0612A-000 Bolt |
01580-0612A-000 |
from US $0.91 |
||
|
32
|
32
01580-08203-000
Bolt, rear
|
01580-08203-000 |
— | ||
| replacement | |||||
|
32
|
32
01580-0820A-000 Bolt |
01580-0820A-000 |
from US $0.91 |
||
|
33
|
33
09387-19001-000 RING |
09387-19001-000 |
US $1.76 |
||
