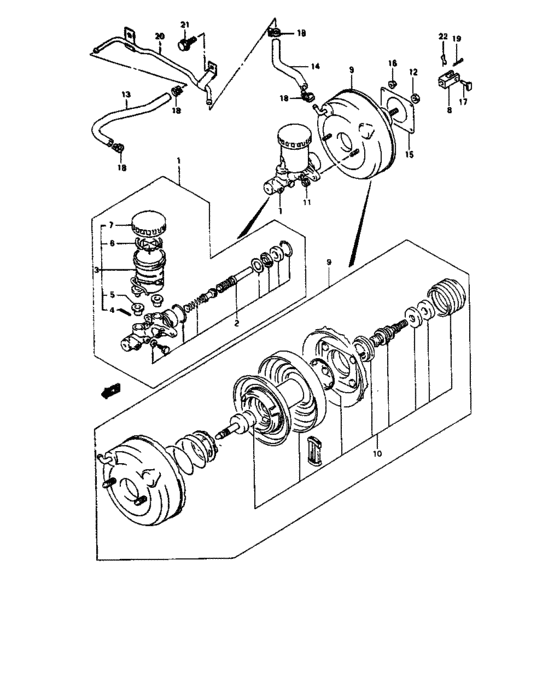

Brake master cylinder (BRAKE MASTER CYLINDER) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
- drive
- 4WD
- grade
- JL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51100-70A40-000
Cylinder assy,brake master
|
51100-70A40-000 |
— | ||
| replacement | |||||
|
1
|
1
51100-70A41-000 CYLINDER ASSY,BRAKE MASTER |
51100-70A41-000 |
US $292.56 |
||
|
2
|
2
51100-70841-000
Piston set,brake master
|
51100-70841-000 |
— | ||
| replacement | |||||
|
2
|
2
51100-70842-000 PISTON SET,BRAKE MASTER |
51100-70842-000 |
from US $60 |
||
|
3
|
3
51200-70A40-000 RESERVOIR ASSY,MASTER CYLINDER |
51200-70A40-000 |
US $138.74 |
||
|
4
|
4
09205-05016-000 PIN,SPRING(5X32) |
09205-05016-000 |
US $1.12 |
||
|
5
|
5
51197-85520-000 GROMMET,RESERVOIR CONNECTOR |
51197-85520-000 |
US $2.72 |
||
|
6
|
6
51234-60A20-000 STRAINER,MASTER CYLINDER |
51234-60A20-000 |
US $7.68 |
||
|
7
|
7
51220-60A20-000 CAP,RESERVOIR |
51220-60A20-000 |
US $17.60 |
||
|
8
|
8
51182-77E00-000 CLEVIS,CYLINDER PUSH ROD |
51182-77E00-000 |
US $9.12 |
||
|
8
|
8
51182-60A60-000
クレビス,シリンダプッシュロッド
JS4JD31C P4100151~ |
51182-60A60-000 |
— | ||
| replacement | |||||
|
8
|
8
51182-77E00-000 CLEVIS,CYLINDER PUSH RODJS4JD31C P4100151~ |
51182-77E00-000 |
US $9.12 |
||
|
9
|
9
51300-70A41-000
BOOSTER ASSY,BRAKE MASTER
|
51300-70A41-000 |
— | ||
|
10
|
10
51300-60810-000
REPAIR KIT,BRAKE MASTER
|
51300-60810-000 |
— | ||
|
11
|
11
09159-08075-000 NUT |
09159-08075-000 |
US $0.91 |
||
|
12
|
12
09140-10019-000 NUT |
09140-10019-000 |
US $9.20 |
||
|
13
|
13
51020-70A61-000
Hose comp,brake vacuum intake
|
51020-70A61-000 |
— | ||
|
14
|
14
51010-83021-000
HOSE,BRAKE VACUUM
|
51010-83021-000 |
— | ||
|
15
|
15
51132-82003-000 PACKING,BRAKE MASTER CYLINDER |
51132-82003-000 |
US $1.60 |
||
|
16
|
16
09159-08069-000
Nut
|
09159-08069-000 |
— | ||
| replacement | |||||
|
16
|
16
09159-08135-000 NUT |
09159-08135-000 |
from US $0.77 |
||
|
17
|
17
09200-10010-000
ピン
|
09200-10010-000 |
— | ||
| replacement | |||||
|
17
|
17
09200-10021-000 PIN |
09200-10021-000 |
US $1.28 |
||
|
17
|
17
09200-10021-000 PINJS4JD31C P4100151~ |
09200-10021-000 |
US $1.28 |
||
|
18
|
18
09401-15404-000 CLIP |
09401-15404-000 |
from US $1.06 |
||
|
19
|
19
04111-25208-000
25 x 20 cotter
~JS4JD31C P4100150 |
04111-25208-000 |
— | ||
| replacement | |||||
|
19
|
19
04111-2520A-000 PIN~JS4JD31C P4100150 |
04111-2520A-000 |
from US $0.80 |
||
|
20
|
20
51380-70A00-000
Pipe comp,brake booster
|
51380-70A00-000 |
— | ||
|
21
|
21
01550-06103-000
Bolt, front
|
01550-06103-000 |
— | ||
| replacements | |||||
|
21
|
21
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
21
|
21
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
22
|
22
09385-10006-000 PIN,SNAPPin JS4JD31C P4100151~ |
09385-10006-000 |
from US $1.60 |
||
