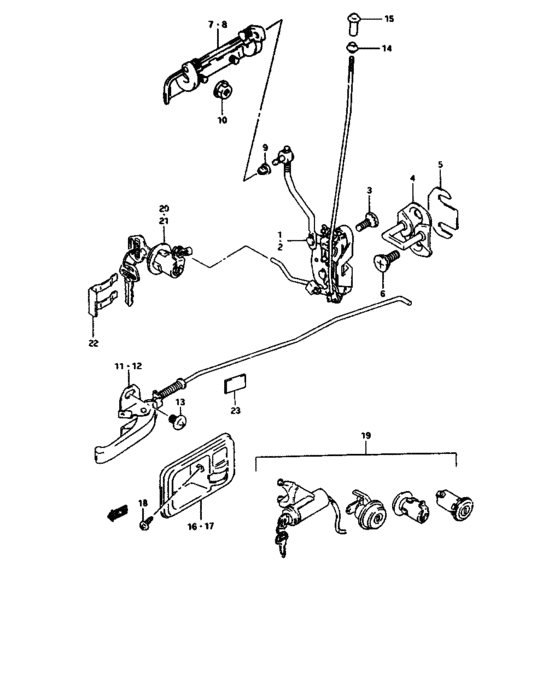

Front door lock (94,95 MODEL) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
- drive
- 2WD
- grade
- JL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82201-84C01-000
LATCH ASSY,FR DR,R
|
82201-84C01-000 |
— | ||
|
2
|
2
82202-84C01-000 LATCH ASSY,FR DR,L |
82202-84C01-000 |
US $109.30 |
||
|
3
|
3
02122-56163-000
SCREW
|
02122-56163-000 |
— | ||
| replacement | |||||
|
3
|
3
02122-5616B-000 SCREW |
02122-5616B-000 |
US $0.80 |
||
|
4
|
4
82610-84C01-000
Striker,front door latch
|
82610-84C01-000 |
— | ||
|
5
|
5
82681-80100-000 SPACER,STRIKER |
82681-80100-000 |
US $1.60 |
||
|
6
|
6
09137-08011-000 SCREW(8X18) |
09137-08011-000 |
US $1.44 |
||
|
7
|
7
82810-83000-000 HANDLE,DOOR OUTSIDE,R |
82810-83000-000 |
US $79.20 |
||
|
8
|
8
82820-83000-000 HANDLE,DOOR OUTSIDE,L |
82820-83000-000 |
US $79.04 |
||
|
9
|
9
82891-80100-000 SNAP,JOINT |
82891-80100-000 |
US $2.40 |
||
|
10
|
10
08316-20063-000
Nut
|
08316-20063-000 |
— | ||
| replacement | |||||
|
10
|
10
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
|
11
|
11
83110-84C01-5ES
HANDLE,DOOR INSIDE,R
|
83110-84C01-5ES |
— | ||
|
12
|
12
83130-84C01-5ES HANDLE,DOOR INSIDE,L |
83130-84C01-5ES |
US $21.90 |
||
|
13
|
13
02142-06103-000
Screw
|
02142-06103-000 |
— | ||
| replacements | |||||
|
13
|
13
02142-0610B-000 SCREWStopper, cl rlse cam shaft |
02142-0610B-000 |
from US $0.76 |
||
|
13
|
13
02142-0610A-000 SCREW |
02142-0610A-000 |
from US $0.80 |
||
|
14
|
14
78242-61000-000 CAP,LOCK KNOB |
78242-61000-000 |
US $1.52 |
||
|
15
|
15
78241-60002-000 KNOB |
78241-60002-000 |
US $1.52 |
||
|
16
|
16
78471-79001-5ES BEZEL,DR INSIDE HDL,R |
78471-79001-5ES |
US $16.80 |
||
|
17
|
17
78481-79001-5ES BEZEL,DR INSIDE HDL,L |
78481-79001-5ES |
US $16.80 |
||
|
18
|
18
03141-04083-000
スクリュ
|
03141-04083-000 |
— | ||
| replacement | |||||
|
18
|
18
03141-0408A-000 SCREW |
03141-0408A-000 |
US $0.80 |
||
|
19
|
19
37101-83820-5PK
ロックセット
|
37101-83820-5PK |
— | ||
| replacements | |||||
|
19
|
19
03241-0410A-000 SCREW |
03241-0410A-000 |
from US $0.80 |
||
|
19
|
19
37101-83822-5PK
LOCK SET
|
37101-83822-5PK |
— | ||
|
19
|
19
03242-04103-000
Screw
|
03242-04103-000 |
— | ||
|
20
|
20
82200-80851-000 CYLINDER,DR LOCK |
82200-80851-000 |
US $53.73 |
||
|
21
|
21
82200-80861-000 CYLINDER,FR DR LOCK,L |
82200-80861-000 |
US $53.73 |
||
|
22
|
22
89345-60B00-000 CLIP,FUEL FILLER LID KEY LOCK |
89345-60B00-000 |
US $2.13 |
||
|
23
|
23
77591-75000-000 PAD |
77591-75000-000 |
US $2.28 |
||
