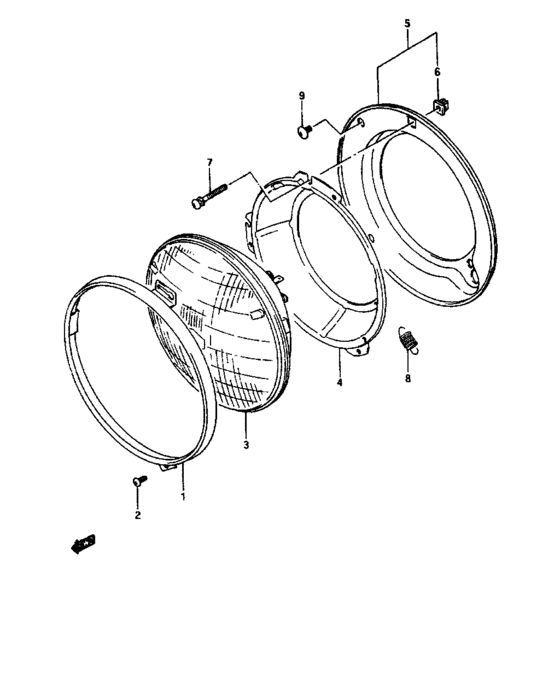

Headlamp (HEADLAMP) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
- drive
- 2WD
- grade
- JL
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35131-61530-000
RIM,HEADLAMP
|
35131-61530-000 |
— | ||
|
2
|
2
02112-04087-000 SCREW |
02112-04087-000 |
from US $0.80 |
||
|
3
|
3
35121-70A00-000
Unit, lamp
|
35121-70A00-000 |
— | ||
| replacement | |||||
|
3
|
3
35121-70A01-000
UNIT,LAMP
|
35121-70A01-000 |
— | ||
|
4
|
4
35132-61530-000
RING,LAMP UNIT RETAINER
|
35132-61530-000 |
— | ||
|
5
|
5
35141-80000-000
Housing,head lamp
|
35141-80000-000 |
— | ||
|
6
|
6
35158-82000-000
Nut
|
35158-82000-000 |
— | ||
|
7
|
7
35151-61530-000
Screw
|
35151-61530-000 |
— | ||
|
8
|
8
35154-80000-000
SPRING
|
35154-80000-000 |
— | ||
|
9
|
9
02142-05083-000
Screw
|
02142-05083-000 |
— | ||
| replacement | |||||
|
9
|
9
02142-0508A-000 SCREWScrew, cap |
02142-0508A-000 |
from US $0.76 |
||
