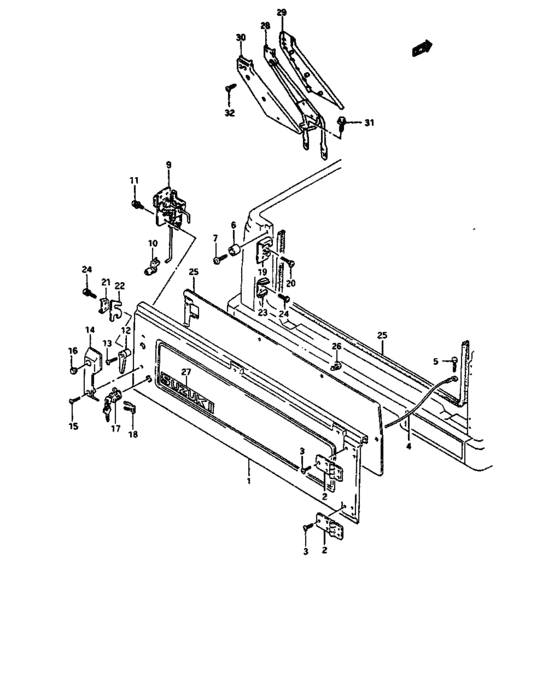

Rear gate (REAR GATE) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
- drive
- 2WD
- grade
- JL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
67700-80360-000 PANEL ASSY,REAR GATE90 MODEL,91 MODEL,92 MODEL |
67700-80360-000 |
US $366.16 |
||
|
1
|
1
67700-82C10-000
PANEL ASSY,REAR GATE
93 MODEL |
67700-82C10-000 |
— | ||
| replacement | |||||
|
1
|
1
67700-50C00-000
PANEL ASSY,REAR GATE
93 MODEL |
67700-50C00-000 |
— | ||
|
1
|
1
67700-50C00-000
PANEL ASSY,REAR GATE
94 MODEL,95 MODEL |
67700-50C00-000 |
— | ||
|
2
|
2
67790-80033-000 HINGE,RR GATE |
67790-80033-000 |
US $27.97 |
||
|
3
|
3
09125-08015-000
スクリュ,8X20
|
09125-08015-000 |
— | ||
| replacement | |||||
|
3
|
3
09125-08015-XC0 SCREW(8X20) |
09125-08015-XC0 |
US $1.60 |
||
|
4
|
4
72850-80002-000 CABLE,RR GATE |
72850-80002-000 |
US $8.66 |
||
|
5
|
5
09100-06075-000 BOLT(6X14)Bolt, carrier (6x14) |
09100-06075-000 |
US $1.12 |
||
|
6
|
6
72875-80003-000 CUSHION,REAR GATE |
72875-80003-000 |
US $2.88 |
||
|
7
|
7
02112-06163-000
Screw
|
02112-06163-000 |
— | ||
| replacements | |||||
|
7
|
7
02112-0616B-000 SCREW |
02112-0616B-000 |
from US $0.80 |
||
|
7
|
7
02112-0616A-000 SCREW |
02112-0616A-000 |
from US $0.76 |
||
|
8
|
8
84681-80001-000 WEATHERSTRIP,RR GATE OPNG |
84681-80001-000 |
US $47.89 |
||
|
9
|
9
82550-80082-000
LOCK ASSY,RR GATE SIDE,L
|
82550-80082-000 |
— | ||
|
10
|
10
09209-05016-000 PIN90 MODEL,91 MODEL,92 MODEL |
09209-05016-000 |
US $1.67 |
||
|
11
|
11
02112-76123-000
Screw
|
02112-76123-000 |
— | ||
| replacement | |||||
|
11
|
11
02112-7612B-000 SCREW |
02112-7612B-000 |
from US $0.96 |
||
|
12
|
12
82591-80060-000
HANDLE,REAR GATE LOCK
|
82591-80060-000 |
— | ||
|
13
|
13
02112-06123-000
Screw, breather cover
|
02112-06123-000 |
— | ||
| replacements | |||||
|
13
|
13
02112-0612B-000 SCREWScrew, oil guide plate |
02112-0612B-000 |
from US $0.76 |
||
|
13
|
13
02112-0612A-000 SCREW |
02112-0612A-000 |
from US $0.76 |
||
|
14
|
14
82592-80060-000
COVER,RR GATE LOCK HANDLE
|
82592-80060-000 |
— | ||
|
15
|
15
02112-06123-000
Screw, breather cover
|
02112-06123-000 |
— | ||
| replacements | |||||
|
15
|
15
02112-0612B-000 SCREWScrew, oil guide plate |
02112-0612B-000 |
from US $0.76 |
||
|
15
|
15
02112-0612A-000 SCREW |
02112-0612A-000 |
from US $0.76 |
||
|
16
|
16
09250-14006-000 PLUG(OD:17)Cap, oil level gauge hole |
09250-14006-000 |
from US $1.92 |
||
|
17
|
17
77400-70832-000 CYLINDER,FR DR LATCH LOCK,L90 MODEL,91 MODEL,92 MODEL |
77400-70832-000 |
US $36.80 |
||
|
17
|
17
82200-80851-000 CYLINDER,DR LOCK93 MODEL,94 MODEL,95 MODEL |
82200-80851-000 |
US $53.73 |
||
|
18
|
18
77461-80080-000
CLIP,KEY CYLINDER
90 MODEL,91 MODEL,92 MODEL |
77461-80080-000 |
— | ||
| replacement | |||||
|
18
|
18
77461-78000-000 CLIP90 MODEL,91 MODEL,92 MODEL |
77461-78000-000 |
US $6.88 |
||
|
18
|
18
89345-60B00-000 CLIP,FUEL FILLER LID KEY LOCK93 MODEL,94 MODEL,95 MODEL |
89345-60B00-000 |
US $2.13 |
||
|
19
|
19
77810-60021-000 STRIKER,RR GATE LATCH |
77810-60021-000 |
US $25.09 |
||
|
20
|
20
09137-08011-000 SCREW(8X18) |
09137-08011-000 |
US $1.44 |
||
|
21
|
21
78251-68201-000 MALE,BACK DR ST0P |
78251-68201-000 |
US $11.04 |
||
|
22
|
22
77891-63100-000 SPACER |
77891-63100-000 |
US $4.48 |
||
|
23
|
23
78261-68201-000 MALE,BACK DR ST0P |
78261-68201-000 |
US $11.04 |
||
|
24
|
24
02112-36163-000
Screw
|
02112-36163-000 |
— | ||
| replacements | |||||
|
24
|
24
02112-3616B-000 SCREW |
02112-3616B-000 |
from US $0.80 |
||
|
24
|
24
02112-3616A-000 SCREW |
02112-3616A-000 |
from US $3.11 |
||
|
25
|
25
76140-83000-5GT
TRIM,REAR DOOR
90 MODEL,91 MODEL |
76140-83000-5GT |
— | ||
|
25
|
25
76140-83000-5GR
Trim, rear door
90 MODEL,91 MODEL |
76140-83000-5GR |
— | ||
|
26
|
26
09409-12301-5PK CLIP(BLACK)90 MODEL,91 MODEL |
09409-12301-5PK |
US $1.22 |
||
|
26
|
26
09409-12301-5CW
Clip(brown)
90 MODEL,91 MODEL |
09409-12301-5CW |
— | ||
|
27
|
27
77813-80010-31R
EMBLEM,TAIL
90 MODEL,91 MODEL |
77813-80010-31R |
— | ||
|
27
|
27
77813-80010-019 EMBLEM,TAIL90 MODEL,91 MODEL |
77813-80010-019 |
US $63.84 |
||
|
27
|
27
77813-50C00-31R
EMBLEM,RR GATE LWR
92 MODEL,93 MODEL,94 MODEL,95 MODEL |
77813-50C00-31R |
— | ||
|
28
|
28
72820-50C00-000 STAY,STOP LAMP94 MODEL,95 MODEL |
72820-50C00-000 |
US $901.12 |
||
|
29
|
29
72831-50C00-5PK
COVER,HMSL,FR
94 MODEL,95 MODEL |
72831-50C00-5PK |
— | ||
|
30
|
30
72832-50C00-5PK
COVER,HMSL,RR
94 MODEL,95 MODEL |
72832-50C00-5PK |
— | ||
|
31
|
31
01550-08203-000
Bolt
94 MODEL,95 MODEL |
01550-08203-000 |
— | ||
| replacements | |||||
|
31
|
31
01550-0820B-000 Bolt94 MODEL,95 MODEL |
01550-0820B-000 |
from US $0.91 |
||
|
31
|
31
01550-0820A-000 BOLTBolt, funnel bracket 94 MODEL,95 MODEL |
01550-0820A-000 |
from US $0.96 |
||
|
32
|
32
03541-05123-000
Screw
94 MODEL,95 MODEL |
03541-05123-000 |
— | ||
| replacement | |||||
|
32
|
32
03541-0512B-000 SCREW94 MODEL,95 MODEL |
03541-0512B-000 |
from US $0.76 |
||
