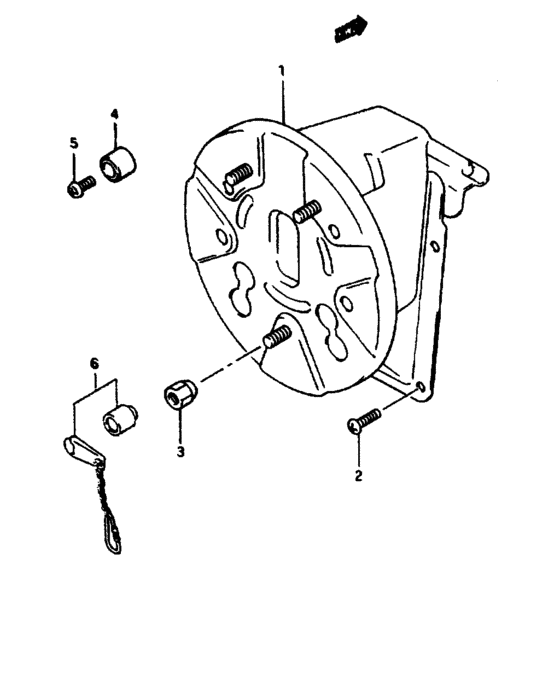

Tire carrier (TIRE CARRIER) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
- drive
- 2WD
- grade
- JL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
72810-50C00-000
CARRIER,SPARE TIRE
90 MODEL,91 MODEL,92 MODEL,93 MODEL |
72810-50C00-000 |
— | ||
|
2
|
2
01550-08203-000
Bolt
|
01550-08203-000 |
— | ||
| replacements | |||||
|
2
|
2
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
2
|
2
01550-0820A-000 BOLTBolt, funnel bracket |
01550-0820A-000 |
from US $0.96 |
||
|
3
|
3
09159-12024-000 NUT90 MODEL |
09159-12024-000 |
from US $2.40 |
||
|
3
|
3
09140-12026-000
ナット
91 MODEL,92 MODEL,93 MODEL,94 MODEL,95 MODEL |
09140-12026-000 |
— | ||
| replacement | |||||
|
3
|
3
09140-12042-000 NUT91 MODEL,92 MODEL,93 MODEL,94 MODEL,95 MODEL |
09140-12042-000 |
from US $1.33 |
||
|
4
|
4
09320-06006-000 CUSHION |
09320-06006-000 |
from US $1.04 |
||
|
5
|
5
02112-06163-000
Screw
|
02112-06163-000 |
— | ||
| replacements | |||||
|
5
|
5
02112-0616B-000 SCREW |
02112-0616B-000 |
from US $0.80 |
||
|
5
|
5
02112-0616A-000 SCREW |
02112-0616A-000 |
from US $0.76 |
||
|
6
|
6
83901-70AA0-000
KEY ASSY,SPARE TIRE NUT LOCK
90 MODEL,91 MODEL:JL |
83901-70AA0-000 |
— | ||
