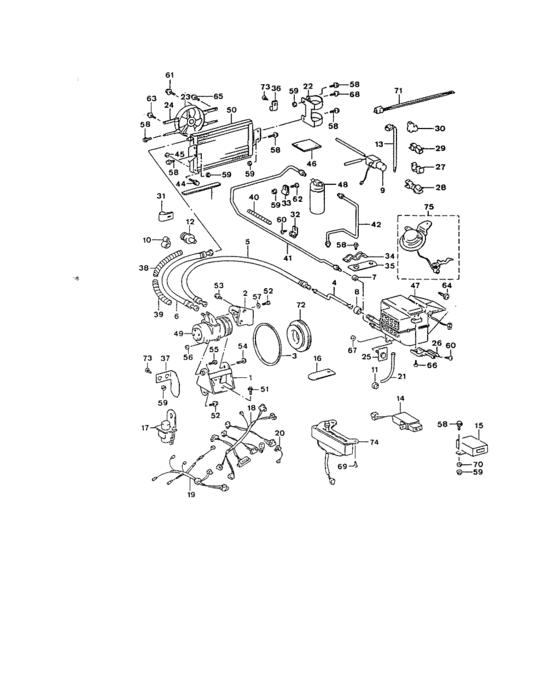

A/cond. (A/COND.) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
95000-70A01-000
Air condition.assy
United Kingdom |
95000-70A01-000 |
— | ||
|
|
95000-70A21-000
Air condition.assy
LHD |
95000-70A21-000 |
— | ||
|
1
|
1
95111-82000-000
BRACKET,CPRSR
|
95111-82000-000 |
— | ||
|
2
|
2
95112-82000-000
STAY,COMPRESSOR ADJUSTING
|
95112-82000-000 |
— | ||
|
3
|
3
95141-83000-000
V belt
|
95141-83000-000 |
— | ||
| replacement | |||||
|
3
|
3
95141-60D03-000 V-BELT,762 |
95141-60D03-000 |
US $17.60 |
||
|
4
|
4
95731-83021-000
Pipe, suction
LHD |
95731-83021-000 |
— | ||
|
5
|
5
95710-70A50-000
Hose, compressor suction
LHD |
95710-70A50-000 |
— | ||
|
5
|
5
95710-83000-000
Hose, compressor
United Kingdom |
95710-83000-000 |
— | ||
|
6
|
6
95720-83000-000
Hose, cprsr delivery
United Kingdom |
95720-83000-000 |
— | ||
|
6
|
6
95720-83020-000
Hose,cprsr delivery
LHD |
95720-83020-000 |
— | ||
|
7
|
7
95762-83000-000
Grommet, liquid
|
95762-83000-000 |
— | ||
| replacement | |||||
|
7
|
7
74814-82000-000 GROMMET,CAR AIR CON,NO.2 |
74814-82000-000 |
US $6.08 |
||
|
8
|
8
95763-83000-000
Grommet, suction
|
95763-83000-000 |
— | ||
| replacement | |||||
|
8
|
8
95761-73A00-000 GROMMET,CAR AIR CON,30 |
95761-73A00-000 |
from US $3.84 |
||
|
9
|
9
95591-70A00-000
REGISTER
United Kingdom |
95591-70A00-000 |
— | ||
|
9
|
9
95551-70A20-000
Vsv,idle up
LHD |
95551-70A20-000 |
— | ||
|
10
|
10
95761-80000-000
BUSH
|
95761-80000-000 |
— | ||
|
11
|
11
95765-74000-000
Grommet, drain
|
95765-74000-000 |
— | ||
| replacement | |||||
|
11
|
11
74814-82000-000 GROMMET,CAR AIR CON,NO.2 |
74814-82000-000 |
US $6.08 |
||
|
12
|
12
95558-78100-000
Union, vacuum
United Kingdom |
95558-78100-000 |
— | ||
| replacement | |||||
|
12
|
12
95562-78540-000 UNION,VACUUM HOSEUnited Kingdom |
95562-78540-000 |
US $9.83 |
||
|
13
|
13
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap General/LHD |
09407-14403-000 |
from US $2.08 |
||
|
14
|
14
95571-70A00-000
SWITCH,CONTROL
|
95571-70A00-000 |
— | ||
|
15
|
15
95572-70A50-000
AMPLIFIER
|
95572-70A50-000 |
— | ||
|
16
|
16
95778-86000-000
Clamp, harness
LHD |
95778-86000-000 |
— | ||
| replacements | |||||
|
16
|
16
09404-08420-000 CLAMP(L:120 T:1.0)LHD |
09404-08420-000 |
from US $2.08 |
||
|
16
|
16
09404-08405-000
Clamp, drain tube
LHD |
09404-08405-000 |
— | ||
|
17
|
17
38860-60A00-000
リレーアッシ
|
38860-60A00-000 |
— | ||
| replacement | |||||
|
17
|
17
95572-63C00-000 RELAY ASSY |
95572-63C00-000 |
US $42.69 |
||
|
18
|
18
95582-70A01-000
Harness, wiring no.1
United Kingdom |
95582-70A01-000 |
— | ||
|
18
|
18
95582-70A21-000
Harness, wiring no.1
LHD |
95582-70A21-000 |
— | ||
|
19
|
19
95583-70A01-000
Harness, engine room
United Kingdom |
95583-70A01-000 |
— | ||
|
19
|
19
95583-70A21-000
Harness, engine room
LHD |
95583-70A21-000 |
— | ||
|
20
|
20
95584-83000-000
Harness,wiring meter
|
95584-83000-000 |
— | ||
|
21
|
21
95491-83000-000
HOSE,DRAIN
United Kingdom |
95491-83000-000 |
— | ||
|
21
|
21
95491-83020-000 HOSE,DRAINLHD |
95491-83020-000 |
US $11 |
||
|
22
|
22
95931-80000-000
HOLDER,RECEIVER
|
95931-80000-000 |
— | ||
|
23
|
23
95520-70A00-000
Shroud, fan
United Kingdom |
95520-70A00-000 |
— | ||
|
23
|
23
95520-70A20-000
FAN ASSY,SHROUD
LHD |
95520-70A20-000 |
— | ||
|
24
|
24
95981-83000-000
Bracket, shroud
|
95981-83000-000 |
— | ||
|
25
|
25
95911-80000-000
Bolt, bracket
|
95911-80000-000 |
— | ||
| replacement | |||||
|
25
|
25
74180-80000-000 BRACKET |
74180-80000-000 |
US $4.05 |
||
|
26
|
26
95961-83000-000
Bracket,evaporator unit
United Kingdom |
95961-83000-000 |
— | ||
|
26
|
26
95961-83920-000
Cool.group bracket
LHD |
95961-83920-000 |
— | ||
|
27
|
27
09408-00033-000 CLAMPClamp |
09408-00033-000 |
from US $1.60 |
||
|
28
|
28
09408-00078-000 CLAMPClamp, evaporation hose |
09408-00078-000 |
from US $3.43 |
||
|
29
|
29
09408-00102-000 CLIPClip |
09408-00102-000 |
US $13.20 |
||
|
29
|
29
95778-83000-000
Clamp, vacuum
|
95778-83000-000 |
— | ||
| replacement | |||||
|
29
|
29
09408-00013-000 CLAMPClamp |
09408-00013-000 |
US $1.92 |
||
|
30
|
30
95777-80000-000
Clamp
|
95777-80000-000 |
— | ||
|
31
|
31
95771-83000-000
Clamp, pipe
United Kingdom |
95771-83000-000 |
— | ||
| replacement | |||||
|
31
|
31
95774-60C00-000 CLAMP,DELIVERY PIPEUnited Kingdom |
95774-60C00-000 |
US $11.70 |
||
|
32
|
32
95779-84300-000
クランプ,リキッドパイプ
United Kingdom |
95779-84300-000 |
— | ||
|
33
|
33
95771-70A00-000
Clamp,suction hose
LHD |
95771-70A00-000 |
— | ||
|
34
|
34
95778-83020-000
Clamp, pipe
LHD |
95778-83020-000 |
— | ||
| replacement | |||||
|
34
|
34
95773-82000-000
Clamp, pipe
LHD |
95773-82000-000 |
— | ||
|
35
|
35
95779-83020-000
Bracket
LHD |
95779-83020-000 |
— | ||
|
36
|
36
95781-83000-000
Clamp, pipe
United Kingdom |
95781-83000-000 |
— | ||
|
37
|
37
95776-83020-000
Bracket
LHD |
95776-83020-000 |
— | ||
|
38
|
38
95765-78120-000
Protector, distributor hose
LHD |
95765-78120-000 |
— | ||
|
39
|
39
95765-83000-000 PROTECTOR,PIPELHD |
95765-83000-000 |
US $10.19 |
||
|
40
|
40
95766-70A00-000
INSULATOR,PIPING
LHD |
95766-70A00-000 |
— | ||
|
41
|
41
95741-83000-000
Pipe, receiver dryer out
United Kingdom |
95741-83000-000 |
— | ||
|
41
|
41
95741-83020-000
Pipe, receiver dryer outlet
LHD |
95741-83020-000 |
— | ||
| replacement | |||||
|
41
|
41
95741-70A50-000
Pipe, receiver dryer out
LHD |
95741-70A50-000 |
— | ||
|
42
|
42
95751-83000-000
Pipe, condenser outlet
United Kingdom |
95751-83000-000 |
— | ||
|
42
|
42
95751-83020-000
Pipe,receiver dryer out
LHD |
95751-83020-000 |
— | ||
|
43
|
43
95621-83000-000
Packing
United Kingdom |
95621-83000-000 |
— | ||
|
44
|
44
95917-83080-000
Bolt
United Kingdom |
95917-83080-000 |
— | ||
|
45
|
45
08316-16063-000 NutUnited Kingdom |
08316-16063-000 |
US $2.91 |
||
| replacement | |||||
|
45
|
45
08316-1006B-000 NUTUnited Kingdom |
08316-1006B-000 |
from US $0.76 |
||
|
46
|
46
95765-84000-000
Back-packing
United Kingdom |
95765-84000-000 |
— | ||
| replacement | |||||
|
46
|
46
36930-82010-000 COVER,HARNESSCover, roof wire United Kingdom |
36930-82010-000 |
from US $1.73 |
||
|
47
|
47
95400-83000-000
Evaporator unit (rhd)
United Kingdom |
95400-83000-000 |
— | ||
|
47
|
47
95400-83020-000
EVAPORATOR
LHD |
95400-83020-000 |
— | ||
|
48
|
48
95330-80020-000
Dryer, receiver
LHD |
95330-80020-000 |
— | ||
| replacement | |||||
|
48
|
48
95330-800R0-000
TANK,RECEIVER
LHD |
95330-800R0-000 |
— | ||
|
48
|
48
95330-82100-000
Receiver dryer
United Kingdom |
95330-82100-000 |
— | ||
|
49
|
49
95200-83000-000
CPRSR&MAGNET CLUTCH
|
95200-83000-000 |
— | ||
|
50
|
50
95310-83000-000
Condenser
United Kingdom |
95310-83000-000 |
— | ||
|
50
|
50
95310-83020-000
Condenser
LHD |
95310-83020-000 |
— | ||
| replacement | |||||
|
50
|
50
95310-83021-000
Condenser comp
LHD |
95310-83021-000 |
— | ||
|
51
|
51
01517-10203-000
ボルト
|
01517-10203-000 |
— | ||
| replacement | |||||
|
51
|
51
01550-1020A-000 BOLTBolt, bal sprocket |
01550-1020A-000 |
from US $0.96 |
||
|
52
|
52
01517-08203-000
ボルト
|
01517-08203-000 |
— | ||
| replacements | |||||
|
52
|
52
01550-0820A-000 BOLTBolt, funnel bracket |
01550-0820A-000 |
from US $0.96 |
||
|
52
|
52
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
53
|
53
01517-08203-000
ボルト
|
01517-08203-000 |
— | ||
| replacements | |||||
|
53
|
53
01550-0820A-000 BOLTBolt, funnel bracket |
01550-0820A-000 |
from US $0.96 |
||
|
53
|
53
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
54
|
54
01517-08253-000
ボルト
|
01517-08253-000 |
— | ||
| replacements | |||||
|
54
|
54
01550-0825A-000 BOLT |
01550-0825A-000 |
from US $1.06 |
||
|
54
|
54
01550-0825B-000 BOLT |
01550-0825B-000 |
from US $0.96 |
||
|
55
|
55
95911-82000-000
BOLT,CPRSR HOLD
|
95911-82000-000 |
— | ||
|
56
|
56
08316-26083-000
Nut
|
08316-26083-000 |
— | ||
| replacement | |||||
|
56
|
56
08316-2008A-000 NUT |
08316-2008A-000 |
from US $0.80 |
||
|
57
|
57
95912-83080-000
WASHER
|
95912-83080-000 |
— | ||
|
58
|
58
01514-06163-000
Vis
United Kingdom/LHD |
01514-06163-000 |
— | ||
| replacement | |||||
|
58
|
58
01550-0616B-000 BOLTUnited Kingdom/LHD |
01550-0616B-000 |
from US $0.76 |
||
|
59
|
59
08316-16063-000 NutUnited Kingdom/LHD |
08316-16063-000 |
US $2.91 |
||
| replacement | |||||
|
59
|
59
08316-1006B-000 NUTUnited Kingdom/LHD |
08316-1006B-000 |
from US $0.76 |
||
|
60
|
60
95911-70A00-000
Screw
|
95911-70A00-000 |
— | ||
| replacement | |||||
|
60
|
60
09132-06010-000 SCREW(6X16) |
09132-06010-000 |
from US $1.08 |
||
|
61
|
61
95328-82000-000
Bolt
United Kingdom |
95328-82000-000 |
— | ||
| replacements | |||||
|
61
|
61
01570-0635B-000 BoltUnited Kingdom |
01570-0635B-000 |
from US $4.61 |
||
|
61
|
61
01137-06353-000
Bolt
United Kingdom |
01137-06353-000 |
— | ||
|
62
|
62
01517-06303-000
ボルト
LHD |
01517-06303-000 |
— | ||
| replacement | |||||
|
62
|
62
01550-0630A-000 BOLTLHD |
01550-0630A-000 |
from US $0.96 |
||
|
63
|
63
01177-06403-000
Screw
United Kingdom |
01177-06403-000 |
— | ||
| replacement | |||||
|
63
|
63
01580-0640B-000 BOLTUnited Kingdom |
01580-0640B-000 |
from US $5.07 |
||
|
63
|
63
95328-82000-000
Bolt
LHD |
95328-82000-000 |
— | ||
| replacements | |||||
|
63
|
63
01570-0635B-000 BoltLHD |
01570-0635B-000 |
from US $4.61 |
||
|
63
|
63
01137-06353-000
Bolt
LHD |
01137-06353-000 |
— | ||
|
64
|
64
03511-05166-000
Screw
|
03511-05166-000 |
— | ||
| replacement | |||||
|
64
|
64
03511-0516A-000 SCREW |
03511-0516A-000 |
from US $0.76 |
||
|
65
|
65
95917-83000-000
Bolt
|
95917-83000-000 |
— | ||
| replacement | |||||
|
65
|
65
95917-83080-000
Bolt
|
95917-83080-000 |
— | ||
|
66
|
66
03211-16156-000
Screw
|
03211-16156-000 |
— | ||
|
67
|
67
08316-26083-000
Nut
|
08316-26083-000 |
— | ||
| replacement | |||||
|
67
|
67
08316-2008A-000 NUT |
08316-2008A-000 |
from US $0.80 |
||
|
68
|
68
01517-06203-000
Bolt
|
01517-06203-000 |
— | ||
| replacements | |||||
|
68
|
68
01550-0620B-000 BOLTBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
68
|
68
01550-0620A-000 BOLT |
01550-0620A-000 |
from US $0.76 |
||
|
69
|
69
03111-04126-000
New Genuine Part
|
03111-04126-000 |
— | ||
| replacement | |||||
|
69
|
69
03111-0412A-000 SCREW |
03111-0412A-000 |
from US $3.04 |
||
|
70
|
70
08510-12066-000
Nut
|
08510-12066-000 |
— | ||
|
71
|
71
95761-70A00-000
Clamp, harness
|
95761-70A00-000 |
— | ||
| replacement | |||||
|
71
|
71
09407-22404-000 CLAMPClamp,oil hose |
09407-22404-000 |
US $2.15 |
||
|
72
|
72
12611-83000-000
Pulley,crankshaft
|
12611-83000-000 |
— | ||
|
73
|
73
95921-83000-000
Screw
United Kingdom |
95921-83000-000 |
— | ||
| replacement | |||||
|
73
|
73
09132-05029-000 SCREW(5X16)United Kingdom |
09132-05029-000 |
US $12.50 |
||
|
74
|
74
95591-70A00-000
REGISTER
|
95591-70A00-000 |
— | ||
|
75
|
75
13280-82100-000
Idle up assy
W/CARBURETTER |
13280-82100-000 |
— | ||
| replacement | |||||
|
75
|
75
13280-82060-000
Diaphragm assy
W/CARBURETTER |
13280-82060-000 |
— | ||
