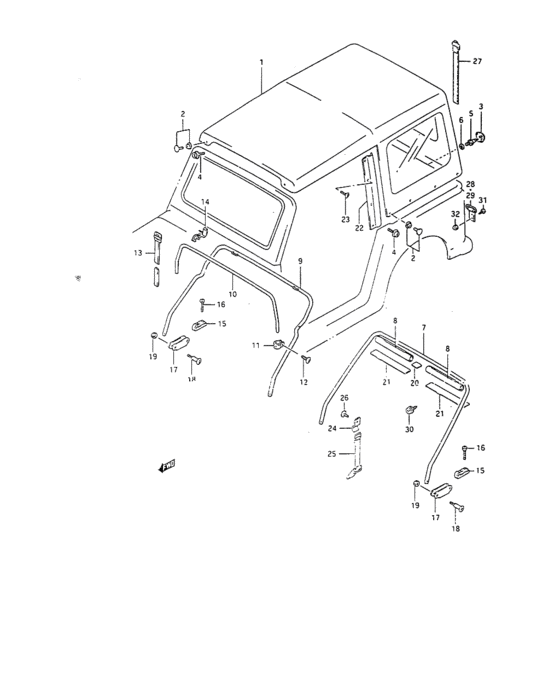

Canvas roof (CANVAS ROOF) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
00000-A0021-100
Ens bache gris
JA |
00000-A0021-100 |
— | ||
|
|
00000-A0021-200
Bache blanc
JX |
00000-A0021-200 |
— | ||
|
1
|
1
50691-00000-000
Black canvas roof
JA |
50691-00000-000 |
— | ||
|
1
|
1
52241-00000-000
Grey roof,no v.l.
United Kingdom |
52241-00000-000 |
— | ||
|
1
|
1
78310-83047-40U
Black roof,no v.l.
Holland |
78310-83047-40U |
— | ||
|
1
|
1
78310-83047-PEW
White roof no v.l.
Holland |
78310-83047-PEW |
— | ||
|
1
|
1
78310-83117-40U
Top assy,deck
JA |
78310-83117-40U |
— | ||
|
1
|
1
78310-83117-6EP
Deck assy,top
JA |
78310-83117-6EP |
— | ||
|
1
|
1
78310-83216-000
Grey roof
|
78310-83216-000 |
— | ||
|
1
|
1
78310-83216-55M
TOP ASSY,DECK
JX |
78310-83216-55M |
— | ||
|
1
|
1
78310-83216-6ER
DECK ASSY,TOP
JX |
78310-83216-6ER |
— | ||
|
1
|
1
78310-83216-PRB
Black roof
CLEAR GLASS |
78310-83216-PRB |
— | ||
|
1
|
1
78310-83216-PRR
Red roof
TYPE 3 |
78310-83216-PRR |
— | ||
|
1
|
1
78310-83216-PRW
White roof
CLEAR GLASS |
78310-83216-PRW |
— | ||
|
2
|
2
79100-63850-000 HOOK SET |
79100-63850-000 |
US $4.45 |
||
| replacement | |||||
|
2
|
2
79100-63861-000 HOOK SET |
79100-63861-000 |
US $13.60 |
||
|
2
|
2
79100-63060-000
Chromium plated hook
|
79100-63060-000 |
— | ||
|
3
|
3
79133-83041-000
Female hook
|
79133-83041-000 |
— | ||
|
4
|
4
78491-80011-000
メール,トップデッキフック
|
78491-80011-000 |
— | ||
| replacement | |||||
|
4
|
4
78490-82CA2-000 MALE,TOP DECK FR HOOK |
78490-82CA2-000 |
US $1.52 |
||
|
5
|
5
79134-73002-000 HOOK,MALE TOP DECK |
79134-73002-000 |
US $1.52 |
||
|
6
|
6
09161-04011-000 WASHER(3.8X12X0.8) |
09161-04011-000 |
US $1.52 |
||
|
7
|
7
78470-80002-000
Rear bow
|
78470-80002-000 |
— | ||
|
8
|
8
78482-80301-000
New Genuine Part
|
78482-80301-000 |
— | ||
| replacement | |||||
|
8
|
8
78483-80301-000
CUSHION,TOP BOW,UPPER
|
78483-80301-000 |
— | ||
|
9
|
9
78470-80012-000
Rear bow assy
Switzerland,Germany |
78470-80012-000 |
— | ||
| replacement | |||||
|
9
|
9
78470-80011-000 FRAME,TOP BOW RRSwitzerland,Germany |
78470-80011-000 |
US $82.80 |
||
|
10
|
10
78461-80010-000
Intermediate bow
Switzerland,Germany |
78461-80010-000 |
— | ||
| replacement | |||||
|
10
|
10
78460-50C00-000
FRAME,TOP BOW MIDDLE
Switzerland,Germany |
78460-50C00-000 |
— | ||
|
11
|
11
78465-80010-000 STAY,TOPBOW MIDDLESwitzerland,Germany |
78465-80010-000 |
US $3.83 |
||
|
12
|
12
03241-05255-000
スクリュ
Switzerland,Germany |
03241-05255-000 |
— | ||
| replacement | |||||
|
12
|
12
03241-0525A-000 SCREWSwitzerland,Germany |
03241-0525A-000 |
US $12.50 |
||
|
13
|
13
78490-80010-000
BAND,RR TOP BOW
Switzerland,Germany |
78490-80010-000 |
— | ||
|
14
|
14
09408-00034-000
クリップ
Switzerland,Germany |
09408-00034-000 |
— | ||
| replacement | |||||
|
14
|
14
09408-00035-000 CLIPClamp Switzerland,Germany |
09408-00035-000 |
US $17.70 |
||
|
15
|
15
78481-80001-000 MALE,RR TOPBOW HNG |
78481-80001-000 |
US $14.74 |
||
|
16
|
16
02112-06305-000
Screw 6x30
|
02112-06305-000 |
— | ||
| replacements | |||||
|
16
|
16
02112-0630B-000 SCREW |
02112-0630B-000 |
US $0.76 |
||
|
16
|
16
02112-0630A-000 SCREW |
02112-0630A-000 |
from US $0.80 |
||
|
17
|
17
78485-80000-000 FEMALE,RR TOP BOW HINGE |
78485-80000-000 |
US $4.86 |
||
|
18
|
18
78488-80000-000
ピン,トップボウヒンジ
|
78488-80000-000 |
— | ||
| replacement | |||||
|
18
|
18
78488-8000V-000 PIN,TOPBOW HINGE |
78488-8000V-000 |
US $1.82 |
||
|
19
|
19
08313-11066-000
ナット
Switzerland,Germany |
08313-11066-000 |
— | ||
| replacements | |||||
|
19
|
19
08313-1006A-000 NUTSwitzerland,Germany |
08313-1006A-000 |
from US $0.80 |
||
|
19
|
19
08313-1006B-000 NUTSwitzerland,Germany |
08313-1006B-000 |
from US $0.80 |
||
|
19
|
19
08313-B1106-300
Nut
|
08313-B1106-300 |
— | ||
|
20
|
20
78476-80001-000
Appui
|
78476-80001-000 |
— | ||
| replacement | |||||
|
20
|
20
78476-80002-000
PAT,RR TOPBOW
|
78476-80002-000 |
— | ||
|
20
|
20
78476-80002-000
PAT,RR TOPBOW
Switzerland,Germany |
78476-80002-000 |
— | ||
|
21
|
21
78484-80300-000
SHEET,CUSHION TOPBOW UPPER
|
78484-80300-000 |
— | ||
|
22
|
22
78411-80101-000 RAIL,DECK TOP SIDE |
78411-80101-000 |
US $27.36 |
||
|
23
|
23
02142-06103-000
Screw
|
02142-06103-000 |
— | ||
| replacements | |||||
|
23
|
23
02142-0610B-000 SCREWStopper, cl rlse cam shaft |
02142-0610B-000 |
from US $0.76 |
||
|
23
|
23
02142-0610A-000 SCREW |
02142-0610A-000 |
from US $0.80 |
||
|
24
|
24
76421-80001-000
HOOK,TOP BOW
|
76421-80001-000 |
— | ||
|
25
|
25
09462-00040-000 BANDBand, battery |
09462-00040-000 |
from US $8.99 |
||
|
26
|
26
02162-05083-000
Bolt
|
02162-05083-000 |
— | ||
| replacement | |||||
|
26
|
26
02162-0508A-000 SCREW |
02162-0508A-000 |
from US $2.82 |
||
|
27
|
27
78490-83000-000
Ens, tendeur
GREY |
78490-83000-000 |
— | ||
|
27
|
27
78490-B8300-000
Band, canvas tensioner
BLACK |
78490-B8300-000 |
— | ||
|
28
|
28
78415-83001-000
ブラケット,テンションバンド,ライト
|
78415-83001-000 |
— | ||
| replacement | |||||
|
28
|
28
78416-83000-000 BRACKET,TENSION BAND |
78416-83000-000 |
US $16.80 |
||
|
29
|
29
78416-83000-000 BRACKET,TENSION BAND |
78416-83000-000 |
US $16.80 |
||
|
30
|
30
78491-83000-000
メール
|
78491-83000-000 |
— | ||
| replacement | |||||
|
30
|
30
78491-8300V-000 MALE,TOPBOW RR |
78491-8300V-000 |
US $2.94 |
||
|
31
|
31
02142-06003-000
Screw
|
02142-06003-000 |
— | ||
|
32
|
32
08313-B1108-300
Nut
|
08313-B1108-300 |
— | ||
