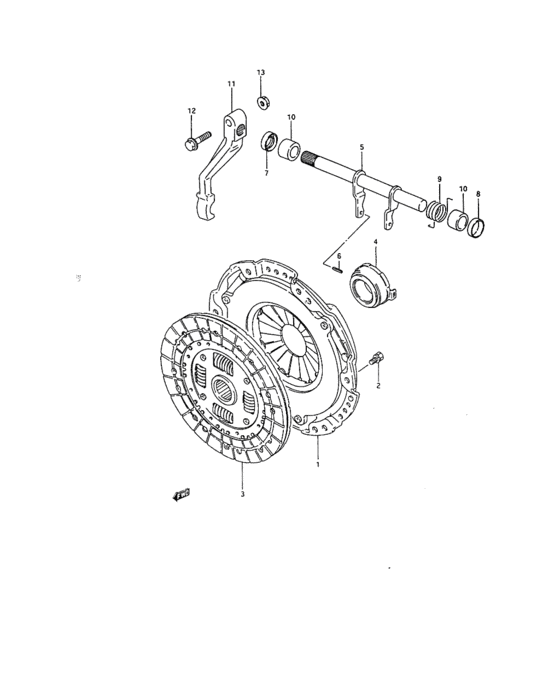

Clutch (CLUTCH) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22100-A8302-000
Cover assy, clutch
|
22100-A8302-000 |
— | ||
|
2
|
2
01107-08163-000
Bolt m8x1.25x16
|
01107-08163-000 |
— | ||
| replacements | |||||
|
2
|
2
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
2
|
2
01500-08163-000
Bolt
|
01500-08163-000 |
— | ||
|
2
|
2
08321-B3108-600
Grower washer
|
08321-B3108-600 |
— | ||
|
3
|
3
22400-A8302-000
Disk, clutch
|
22400-A8302-000 |
— | ||
|
4
|
4
09269-B3300-100
Thrust bearing
ALTERN. |
09269-B3300-100 |
— | ||
|
4
|
4
09269-C3300-100
Butee debrayage
|
09269-C3300-100 |
— | ||
|
5
|
5
23260-83013-000 SHAFT,CLUTCH RELEASE |
23260-83013-000 |
US $75.81 |
||
|
6
|
6
09105-03019-000
Pin
|
09105-03019-000 |
— | ||
|
7
|
7
09284-14005-000
オイルシール,14X22X6
|
09284-14005-000 |
— | ||
| replacements | |||||
|
7
|
7
09283-14006-000 SEAL,OIL(14X22X6) |
09283-14006-000 |
from US $3.74 |
||
|
7
|
7
09283-14005-000 SEAL,OIL(14X22X7.3) |
09283-14005-000 |
from US $6.35 |
||
|
8
|
8
09241-22003-000 PLUG |
09241-22003-000 |
from US $1.76 |
||
|
9
|
9
09448-20006-000 SPRING |
09448-20006-000 |
US $1.98 |
||
|
10
|
10
09300-14012-000
Bonille axe
|
09300-14012-000 |
— | ||
| replacement | |||||
|
10
|
10
09300-14017-000 BUSH(14X22X15) |
09300-14017-000 |
from US $2.13 |
||
|
11
|
11
25266-83001-000
Clutch arm
|
25266-83001-000 |
— | ||
|
12
|
12
01514-08353-000
Vis
|
01514-08353-000 |
— | ||
|
13
|
13
08310-11083-000
ナット
|
08310-11083-000 |
— | ||
| replacements | |||||
|
13
|
13
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
13
|
13
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.80 |
||
|
13
|
13
08322-11083-000 WasherWasher |
08322-11083-000 |
US $1.07 |
||
| replacements | |||||
|
13
|
13
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
13
|
13
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
