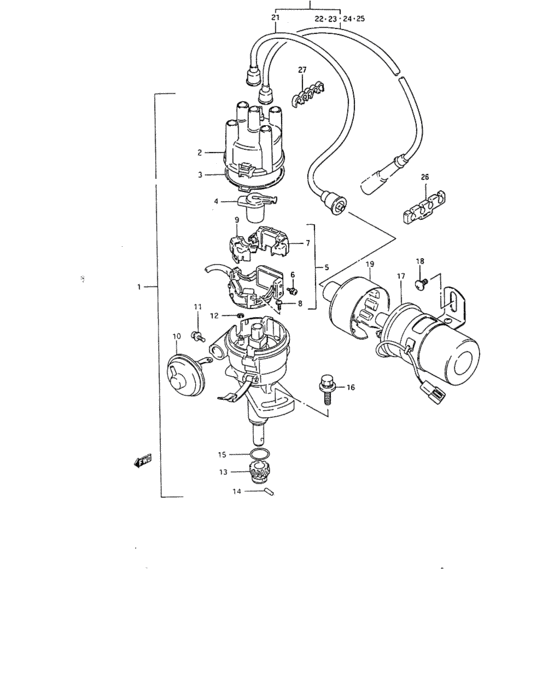

Distrib. carb. (DISTRIB. CARB.) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33100-83021-000
Distributor assy
H 104555 |
33100-83021-000 |
— | ||
|
1
|
1
33100-83022-000
DISTRIBUTOR ASSY
D 104556 |
33100-83022-000 |
— | ||
|
1
|
1
33100-A0302-000
Distributor assy
TYPE 1,ALTERN. |
33100-A0302-000 |
— | ||
|
2
|
2
33321-60A10-000 CAP,DISTRIBUTOR |
33321-60A10-000 |
US $15.96 |
||
|
3
|
3
33324-78610-000
Cover gasket
|
33324-78610-000 |
— | ||
|
4
|
4
33310-82110-000
ロータアッシ
|
33310-82110-000 |
— | ||
| replacement | |||||
|
4
|
4
33310-82010-000 ROTOR ASSY |
33310-82010-000 |
US $8.21 |
||
|
5
|
5
33370-83011-000
IGNITER ASSY
|
33370-83011-000 |
— | ||
|
6
|
6
33152-82010-000
スクリュ
|
33152-82010-000 |
— | ||
| replacements | |||||
|
6
|
6
02112-3408A-000 SCREW |
02112-3408A-000 |
from US $0.80 |
||
|
6
|
6
02112-34086-000
Screw
|
02112-34086-000 |
— | ||
|
7
|
7
33297-81060-000
COVER,IGNITER DUST
|
33297-81060-000 |
— | ||
|
8
|
8
33151-80020-000 SCREW,IGNITER |
33151-80020-000 |
US $1.60 |
||
|
9
|
9
33279-80020-000 COVER,GENERATOR DUST |
33279-80020-000 |
US $9.44 |
||
|
10
|
10
33230-83020-000
CONTROLLER ASSY,VACUUM
|
33230-83020-000 |
— | ||
|
11
|
11
33239-82110-000 SCREW,VACUUM CONTROLLER |
33239-82110-000 |
US $1.32 |
||
|
12
|
12
33259-76410-000
Spring ring
|
33259-76410-000 |
— | ||
|
13
|
13
33267-83010-000
GEAR,DISTRIBUTOR
|
33267-83010-000 |
— | ||
|
14
|
14
33268-85010-000
Pin
|
33268-85010-000 |
— | ||
|
15
|
15
33378-52010-000
O ring
|
33378-52010-000 |
— | ||
|
16
|
16
08321-B3108-600
Grower washer
|
08321-B3108-600 |
— | ||
|
16
|
16
09100-06226-000
Screw
|
09100-06226-000 |
— | ||
|
16
|
16
09160-08080-000 Washer 8.2 x 22 |
09160-08080-000 |
US $2.12 |
||
| replacement | |||||
|
16
|
16
09160-08128-000 WASHER(8.5X22X3.2) |
09160-08128-000 |
from US $3.83 |
||
|
17
|
17
53410-83010-000
Ignition coil
|
53410-83010-000 |
— | ||
|
18
|
18
02142-06103-000
Screw
|
02142-06103-000 |
— | ||
| replacements | |||||
|
18
|
18
02142-0610B-000 SCREWStopper, cl rlse cam shaft |
02142-0610B-000 |
from US $0.76 |
||
|
18
|
18
02142-0610A-000 SCREW |
02142-0610A-000 |
from US $0.80 |
||
|
19
|
19
50009-00000-000
Coil cover
TYPE 2,TYPE 3 |
50009-00000-000 |
— | ||
|
19
|
19
33471-77011-000
CAP,IGNITION COIL
TYPE 1 |
33471-77011-000 |
— | ||
|
20
|
20
33700-A0301-000
High tens.cable assy
TYPE 1,TYPE 2 |
33700-A0301-000 |
— | ||
|
20
|
20
33700-A8303-000
High tens.cable assy
TYPE 3 |
33700-A8303-000 |
— | ||
|
21
|
21
33710-A8301-000
Cable
TYPE 1,TYPE 2 |
33710-A8301-000 |
— | ||
|
21
|
21
33710-B8303-000
Cable,coil to distr.
TYPE 3 |
33710-B8303-000 |
— | ||
|
22
|
22
33730-A60A1-000
Cable to cylinder n1
TYPE 3 |
33730-A60A1-000 |
— | ||
|
22
|
22
33730-A8301-000
Cable cylindre n 1
TYPE 1,TYPE 2 |
33730-A8301-000 |
— | ||
|
23
|
23
33740-A83A1-000
Cable to cylinder n2
TYPE 3 |
33740-A83A1-000 |
— | ||
|
23
|
23
33740-A8301-000
Cable cylindre n 2
TYPE 1,TYPE 2 |
33740-A8301-000 |
— | ||
|
24
|
24
33750-A60A1-000
Cable to cylinder n3
TYPE 3 |
33750-A60A1-000 |
— | ||
|
24
|
24
33760-A8001-000
Cable distributor ci
TYPE 1,TYPE 2 |
33760-A8001-000 |
— | ||
|
25
|
25
33730-A8001-000
Cable distributor ci
TYPE 1,TYPE 2 |
33730-A8001-000 |
— | ||
|
25
|
25
33760-A60A1-000
Cable to cylinder n4
TYPE 3 |
33760-A60A1-000 |
— | ||
|
26
|
26
33883-63200-000
CLAMP,HIGH TENSION CORD
|
33883-63200-000 |
— | ||
|
27
|
27
33883-83020-000
クランプ,ハイテンションコード
|
33883-83020-000 |
— | ||
| replacement | |||||
|
27
|
27
09408-00116-000 CLIP |
09408-00116-000 |
US $44.90 |
||
