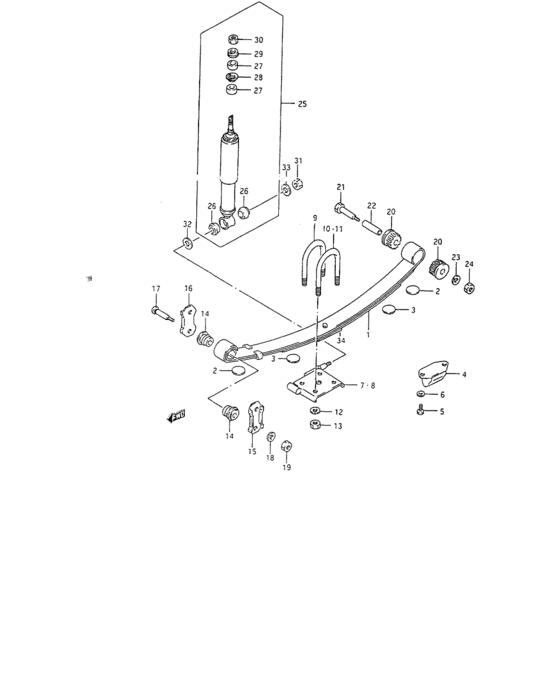

Fr. suspension (FR. SUSPENSION) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41110-70A00-000 SPRING ASSY,FRONT |
41110-70A00-000 |
US $253.92 |
||
|
2
|
2
41118-70A00-000
サイレンサ,スプリング
|
41118-70A00-000 |
— | ||
| replacement | |||||
|
2
|
2
41117-70A10-000 SILENCER,SPRING |
41117-70A10-000 |
US $21.60 |
||
|
3
|
3
41117-70A00-000
サイレンサ,スプリング
|
41117-70A00-000 |
— | ||
| replacement | |||||
|
3
|
3
41117-70A10-000 SILENCER,SPRING |
41117-70A10-000 |
US $21.60 |
||
|
4
|
4
42110-80010-000 BUMPER,FR SPRING |
42110-80010-000 |
US $23.55 |
||
|
5
|
5
01104-08163-000
Boulon
|
01104-08163-000 |
— | ||
|
6
|
6
08321-B3108-600
Grower washer
|
08321-B3108-600 |
— | ||
|
7
|
7
41230-70A00-000 SEAT,FRONT SPRING,R |
41230-70A00-000 |
US $43.06 |
||
|
8
|
8
41240-70A00-000 SEAT,FR SPRING,L |
41240-70A00-000 |
US $43.06 |
||
|
9
|
9
41411-83010-000 U-BOLT,FR SPRING,R |
41411-83010-000 |
US $12.77 |
||
|
10
|
10
41411-83000-000 U-BOLT,FR SPRING,L |
41411-83000-000 |
US $18.24 |
||
|
11
|
11
41411-83020-000 U-BOLT,FR SPRING INR,RH 96641 |
41411-83020-000 |
US $12.59 |
||
| replacement | |||||
|
11
|
11
41411-83010-000 U-BOLT,FR SPRING,RH 96641 |
41411-83010-000 |
US $12.77 |
||
|
12
|
12
08321-A3112-300
Washer
|
08321-A3112-300 |
— | ||
|
13
|
13
08310-11123-000
New Genuine Part
|
08310-11123-000 |
— | ||
| replacement | |||||
|
13
|
13
08310-0012A-000 NUT |
08310-0012A-000 |
from US $0.76 |
||
|
14
|
14
09305-13006-000
Bague lame - ressort
|
09305-13006-000 |
— | ||
| replacement | |||||
|
14
|
14
09305-13002-000 BUSH |
09305-13002-000 |
from US $1.58 |
||
|
15
|
15
41461-79000-000
Plate, inner
|
41461-79000-000 |
— | ||
| replacement | |||||
|
15
|
15
41461-77300-000 PLATE,INNER |
41461-77300-000 |
US $12.80 |
||
|
16
|
16
41462-79000-000
Plate, spring shackle outer
|
41462-79000-000 |
— | ||
| replacement | |||||
|
16
|
16
41462-77300-000 PLATE,OUTER |
41462-77300-000 |
US $12.80 |
||
|
17
|
17
41463-82000-000 PIN,SHACKLE |
41463-82000-000 |
US $6.72 |
||
|
18
|
18
08321-A3110-300
Washer plain
|
08321-A3110-300 |
— | ||
|
19
|
19
08310-11103-000
Rondelle
|
08310-11103-000 |
— | ||
| replacement | |||||
|
19
|
19
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
20
|
20
41331-62020-000 BUSH |
41331-62020-000 |
from US $16.38 |
||
|
21
|
21
09100-12059-000
ボルト,12X92
|
09100-12059-000 |
— | ||
| replacements | |||||
|
21
|
21
09103-12044-000 BOLT(12X87) |
09103-12044-000 |
from US $2.48 |
||
|
21
|
21
09103-12048-000 BOLT(12X90) |
09103-12048-000 |
US $8.48 |
||
|
22
|
22
09180-12035-000 SPACER(12X16X64.5) |
09180-12035-000 |
US $2.24 |
||
|
23
|
23
08321-A3112-300
Washer
|
08321-A3112-300 |
— | ||
|
24
|
24
08310-11123-000
New Genuine Part
|
08310-11123-000 |
— | ||
| replacement | |||||
|
24
|
24
08310-0012A-000 NUT |
08310-0012A-000 |
from US $0.76 |
||
|
25
|
25
40047-00000-000
Amortisseur
ALTERN. |
40047-00000-000 |
— | ||
|
25
|
25
41600-B70A0-000
Amortisseur
|
41600-B70A0-000 |
— | ||
|
26
|
26
40025-00000-000
Caoutchouc
|
40025-00000-000 |
— | ||
|
26
|
26
41781-A8000-000
Bush
ALTERN. |
41781-A8000-000 |
— | ||
|
27
|
27
40026-00000-000
Caoutchouc
|
40026-00000-000 |
— | ||
|
27
|
27
41792-A5111-000
Bush, upper
ALTERN. |
41792-A5111-000 |
— | ||
|
28
|
28
40027-00000-000
Rondelle
|
40027-00000-000 |
— | ||
|
28
|
28
41793-A5111-000
Washer
ALTERN. |
41793-A5111-000 |
— | ||
|
29
|
29
40028-00000-000
Rondelle
|
40028-00000-000 |
— | ||
|
29
|
29
41794-A5111-000
Retainer
ALTERN. |
41794-A5111-000 |
— | ||
|
30
|
30
08312-A2110-800
Nut
ALTERN. |
08312-A2110-800 |
— | ||
|
30
|
30
08312-A3110-800
Nut
ALTERN. |
08312-A3110-800 |
— | ||
|
30
|
30
40029-00000-000
Ecrou
|
40029-00000-000 |
— | ||
|
31
|
31
08310-11123-000
New Genuine Part
|
08310-11123-000 |
— | ||
| replacement | |||||
|
31
|
31
08310-0012A-000 NUT |
08310-0012A-000 |
from US $0.76 |
||
|
32
|
32
08322-A2116-300
Washer
|
08322-A2116-300 |
— | ||
|
33
|
33
09160-12075-000
Washer 12.2x42x
|
09160-12075-000 |
— | ||
|
34
|
34
41116-83000-000
Entretoise
|
41116-83000-000 |
— | ||
