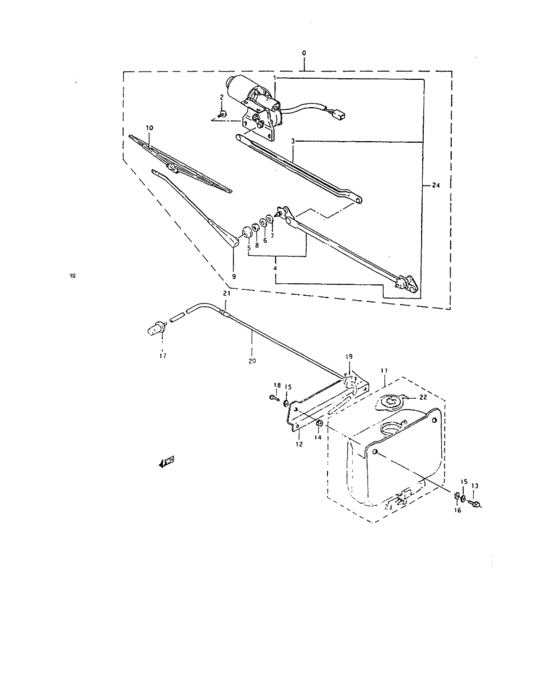

Fr. windsc. wiper (FR. WINDSC. WIPER) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
00000-A0002-000
Scr.wiper equip.assy
|
00000-A0002-000 |
— | ||
|
1
|
1
38101-50C00-000 MOTOR ASSY,WIPERD 104080-United Kingdom |
38101-50C00-000 |
US $374.40 |
||
|
1
|
1
38101-70A00-000 MOTOR ASSY,WIPERH 104079-United Kingdom |
38101-70A00-000 |
US $364.32 |
||
|
1
|
1
38101-80001-000
Motor assy, wirer
NIPPON |
38101-80001-000 |
— | ||
| replacement | |||||
|
1
|
1
38101-70A00-000 MOTOR ASSY,WIPERNIPPON |
38101-70A00-000 |
US $364.32 |
||
|
1
|
1
38101-A8003-100
Ens moteuir glace do
TYPE 1,TYPE 2:CARB,DOGA |
38101-A8003-100 |
— | ||
|
1
|
1
38101-B8003-100
Windsc.wiper motor
TYPE 2:INJ,TYPE 3:DOGA |
38101-B8003-100 |
— | ||
|
2
|
2
02142-06125-000
Screw
|
02142-06125-000 |
— | ||
| replacements | |||||
|
2
|
2
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
2
|
2
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
3
|
3
38255-50C00-000 ROD,WIPERUnited Kingdom |
38255-50C00-000 |
US $32.38 |
||
|
3
|
3
38255-80000-000 ROD,WIPER LINK |
38255-80000-000 |
US $28 |
||
|
4
|
4
38102-50C01-000 LINK ASSY,WIPERD104080,United Kingdom |
38102-50C01-000 |
US $99.20 |
||
|
4
|
4
38102-70A00-000
リンクアッシ,ワイパ
H 104079,United Kingdom |
38102-70A00-000 |
— | ||
| replacements | |||||
|
4
|
4
38102-80032-000 LINK ASSY,WIPERH 104079,United Kingdom |
38102-80032-000 |
US $104 |
||
|
4
|
4
38271-82C00-000 WASHER,WIPER PIVOTH 104079,United Kingdom |
38271-82C00-000 |
US $2.56 |
||
|
4
|
4
38272-82C00-000 PACKING,WIPER PIVOTH 104079,United Kingdom |
38272-82C00-000 |
US $2.24 |
||
|
4
|
4
38274-78000-000 CAPH 104079,United Kingdom |
38274-78000-000 |
US $1.76 |
||
|
4
|
4
38278-67011-000 NUTH 104079,United Kingdom |
38278-67011-000 |
US $1.60 |
||
|
4
|
4
38102-80032-000 LINK ASSY,WIPERNIPPON |
38102-80032-000 |
US $104 |
||
|
4
|
4
38102-A8003-100
Connecting rod assy
DOGA |
38102-A8003-100 |
— | ||
|
5
|
5
38274-78000-000 CAP |
38274-78000-000 |
US $1.76 |
||
|
6
|
6
38271-71310-000
ワッシャ
|
38271-71310-000 |
— | ||
| replacements | |||||
|
6
|
6
38271-82C00-000 WASHER,WIPER PIVOT |
38271-82C00-000 |
US $2.56 |
||
|
6
|
6
38272-82C00-000 PACKING,WIPER PIVOT |
38272-82C00-000 |
US $2.24 |
||
|
6
|
6
38271-82C00-000 WASHER,WIPER PIVOTTYPE 3,United Kingdom |
38271-82C00-000 |
US $2.56 |
||
|
7
|
7
38272-71310-000
パッキン
|
38272-71310-000 |
— | ||
| replacements | |||||
|
7
|
7
38272-82C00-000 PACKING,WIPER PIVOT |
38272-82C00-000 |
US $2.24 |
||
|
7
|
7
38271-82C00-000 WASHER,WIPER PIVOT |
38271-82C00-000 |
US $2.56 |
||
|
7
|
7
38272-82C00-000 PACKING,WIPER PIVOTTYPE 3,United Kingdom |
38272-82C00-000 |
US $2.24 |
||
|
8
|
8
38278-67011-000 NUT |
38278-67011-000 |
US $1.60 |
||
|
9
|
9
38310-A82C3-000
Arm
United Kingdom |
38310-A82C3-000 |
— | ||
|
9
|
9
38330-A82C3-000
Arm
United Kingdom |
38330-A82C3-000 |
— | ||
|
9
|
9
38310-A8003-000
Brass
|
38310-A8003-000 |
— | ||
|
10
|
10
38340-A6364-100
Blade
|
38340-A6364-100 |
— | ||
|
11
|
11
38400-E6000-000
Pump and tank assy
|
38400-E6000-000 |
— | ||
|
12
|
12
38400-B8000-000
Suppport
|
38400-B8000-000 |
— | ||
|
12
|
12
38400-D8000-000
Support
'V',Switzerland,Italy,Spain |
38400-D8000-000 |
— | ||
|
13
|
13
01104-06166-000
Bolt
|
01104-06166-000 |
— | ||
| replacement | |||||
|
13
|
13
01500-06167-000 BOLTBolt, fuel cooler |
01500-06167-000 |
from US $0.76 |
||
|
14
|
14
08310-11066-000
Nut
|
08310-11066-000 |
— | ||
| replacements | |||||
|
14
|
14
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
14
|
14
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
15
|
15
08321-A3106-600
Washer
|
08321-A3106-600 |
— | ||
|
16
|
16
09160-06027-000
Washer (6.5x20x1.2)
|
09160-06027-000 |
— | ||
| replacement | |||||
|
16
|
16
09160-06077-000 WASHER(6.5X20X1.2)Washer (6.5x20x1.2) |
09160-06077-000 |
from US $0.96 |
||
|
17
|
17
38480-80000-000 NOZZLE ASSY,FR WASHER |
38480-80000-000 |
US $24.32 |
||
|
18
|
18
02142-06126-000
Screw, front fender rear
|
02142-06126-000 |
— | ||
| replacements | |||||
|
18
|
18
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
18
|
18
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
18
|
18
08321-A3106-600
Washer
|
08321-A3106-600 |
— | ||
|
19
|
19
82191-A8000-200
Passacable
|
82191-A8000-200 |
— | ||
|
20
|
20
38400-C8000-000
Tuyanterie eau
|
38400-C8000-000 |
— | ||
|
21
|
21
00000-A0028-200
Soupapee
|
00000-A0028-200 |
— | ||
|
22
|
22
00000-A0029-200
Tank plug
|
00000-A0029-200 |
— | ||
|
23
|
23
00000-A0028-100
Pompe
|
00000-A0028-100 |
— | ||
|
24
|
24
38100-A8003-100
Engine & transmiss.
DOGA |
38100-A8003-100 |
— | ||
|
25
|
25
08316-B1606-600
Ecrou
NOT SHOWN |
08316-B1606-600 |
— | ||
