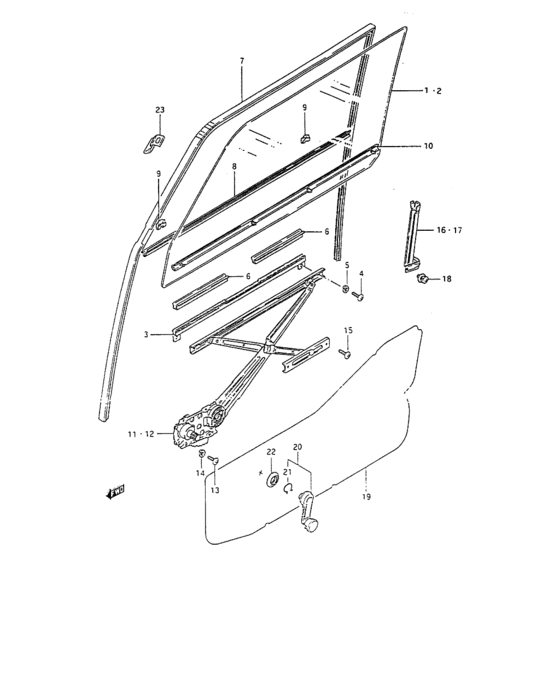

Front door glass (FRONT DOOR GLASS) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
84531-80112-000
ガラス,フロントドアライト(ホワイト)
NO COLOUR |
84531-80112-000 |
— | ||
| replacement | |||||
|
1
|
1
84531-80150-000
GLASS,FR DR WDO,R
NO COLOUR |
84531-80150-000 |
— | ||
|
1
|
1
84531-80131-000
Glace porte cd
NO COLOUR-ALTERN. |
84531-80131-000 |
— | ||
|
1
|
1
84531-A8012-100
Door glass,r/h
GREEN |
84531-A8012-100 |
— | ||
|
2
|
2
84536-80112-000
ガラスフロントドアレフト(ホワイト)
NO COLOUR |
84536-80112-000 |
— | ||
| replacement | |||||
|
2
|
2
84536-80150-000
GLASS,FR DR WDO,L
NO COLOUR |
84536-80150-000 |
— | ||
|
2
|
2
84536-80131-000
Glace porte cg
NO COLOUR-ALTERN. |
84536-80131-000 |
— | ||
|
2
|
2
84536-A8012-100
Door glass,l/h
GREEN |
84536-A8012-100 |
— | ||
|
3
|
3
78710-78000-000 CHANNEL,DR GLASS BOTTOM |
78710-78000-000 |
US $15.12 |
||
|
4
|
4
02112-06086-000
New Genuine Part
|
02112-06086-000 |
— | ||
| replacement | |||||
|
4
|
4
02112-0608A-000 SCREW |
02112-0608A-000 |
from US $0.76 |
||
|
5
|
5
08321-A3106-600
Washer
|
08321-A3106-600 |
— | ||
|
6
|
6
78811-A7810-000
Inner rubber profile
|
78811-A7810-000 |
— | ||
|
7
|
7
83661-83000-000
ラン,ドアガラス
|
83661-83000-000 |
— | ||
| replacement | |||||
|
7
|
7
83661-82CA0-000 RUN,FR DOOR GLASS |
83661-82CA0-000 |
US $64 |
||
|
8
|
8
83811-80100-000
ウェザストリップ,フロントドア,アウタ
|
83811-80100-000 |
— | ||
| replacement | |||||
|
8
|
8
83810-82CA0-000 WEATHERSTRIP,FR DR OUT |
83810-82CA0-000 |
US $43.32 |
||
|
9
|
9
78991-78001-000 CLIP,DR OUT WEATHERSTRIP |
78991-78001-000 |
from US $1.52 |
||
|
10
|
10
83850-80100-000 WEATHERSTRIP,FR DR INR |
83850-80100-000 |
US $28.12 |
||
|
11
|
11
83440-80100-000
Mecanisme cg
|
83440-80100-000 |
— | ||
| replacement | |||||
|
11
|
11
78502-78001-000 REGULATOR ASSY,DOOR WINDOW,L |
78502-78001-000 |
US $135.20 |
||
|
11
|
11
83440-A8010-000
Mecaniske gauche
ALTERN. |
83440-A8010-000 |
— | ||
|
12
|
12
83410-80100-000
Mecanisme cd
|
83410-80100-000 |
— | ||
| replacement | |||||
|
12
|
12
78501-78001-000 REGULATOR,DOOR WINDOW,R |
78501-78001-000 |
US $135.20 |
||
|
12
|
12
83410-A8010-000
Mecanisme droite
ALTERN. |
83410-A8010-000 |
— | ||
|
13
|
13
02112-06086-000
New Genuine Part
|
02112-06086-000 |
— | ||
| replacement | |||||
|
13
|
13
02112-0608A-000 SCREW |
02112-0608A-000 |
from US $0.76 |
||
|
14
|
14
08321-A3106-600
Washer
|
08321-A3106-600 |
— | ||
|
15
|
15
03142-06106-000
Screw
|
03142-06106-000 |
— | ||
|
16
|
16
81730-80101-000
サッシュ,フロントドアリヤ,ライト
|
81730-80101-000 |
— | ||
| replacements | |||||
|
16
|
16
81730-80102-000 SASH,FR DOOR REAR,R |
81730-80102-000 |
US $30.40 |
||
|
16
|
16
83661-82CA0-000 RUN,FR DOOR GLASS |
83661-82CA0-000 |
US $64 |
||
|
17
|
17
81740-80101-000
サッシュ,フロントドアリヤ,レフト
|
81740-80101-000 |
— | ||
| replacements | |||||
|
17
|
17
81740-80102-000 SASH,FR DOOR REAR,L |
81740-80102-000 |
US $30.40 |
||
|
17
|
17
83661-82CA0-000 RUN,FR DOOR GLASS |
83661-82CA0-000 |
US $64 |
||
|
18
|
18
02112-06126-000
Screw 6x12
|
02112-06126-000 |
— | ||
| replacements | |||||
|
18
|
18
02112-0612B-000 SCREWScrew, oil guide plate |
02112-0612B-000 |
from US $0.76 |
||
|
18
|
18
02112-0612A-000 SCREW |
02112-0612A-000 |
from US $0.76 |
||
|
18
|
18
08321-A3106-600
Washer
|
08321-A3106-600 |
— | ||
|
18
|
18
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
18
|
18
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
19
|
19
83911-80100-000
Couvercle porte av
|
83911-80100-000 |
— | ||
| replacement | |||||
|
19
|
19
83911-60X52-000 COVER,DR SEALING |
83911-60X52-000 |
US $6.06 |
||
|
20
|
20
82860-A8210-000
Lever
TYPE 2,'J' |
82860-A8210-000 |
— | ||
|
20
|
20
82960-B8210-000
Brown lever
|
82960-B8210-000 |
— | ||
|
21
|
21
78463-78000-000 SNAP |
78463-78000-000 |
US $1.60 |
||
|
22
|
22
78472-B7800-000
Brown garnish
|
78472-B7800-000 |
— | ||
|
22
|
22
82972-82100-5ES
エスカッション,レギュレータハンドル(ブラック)
|
82972-82100-5ES |
— | ||
| replacement | |||||
|
22
|
22
82972-82101-5ES ESCUTCHEON,RGLTR HDL |
82972-82101-5ES |
US $2.24 |
||
|
23
|
23
78861-78400-000
GUIDE,DR WINDOW GLASS
|
78861-78400-000 |
— | ||
